Tripp Lite N286-01GLC-TE Cisco-Compatible GLC-TE SFP Transceiver - 10/100/1000Base-TX, Copper, RJ45, Cat6, 328.08 ft. (100 m)

Cisco-Compatible GLC-TE SFP Transceiver - 10/100/1000Base-TX, Copper, RJ45, Cat6, 328.08 ft. (100 m)

Key Features

• SFP transceiver module 100% compatible with Cisco’s equivalent module
• Provides 10/100/1000 Mbps throughput up to 328.08-ft. (100 m) via Cat6 cabling
• Auto-sensing RJ45 port adjusts to match data speeds and detects MDI/MDI-X
• Hot-swappable interface lets you install and uninstall without shutting down
• Supports bi-directional Gigabit Ethernet communication up to 1.25 Gbps

Description

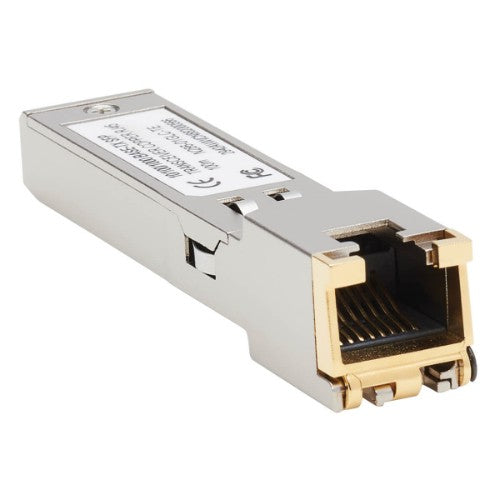

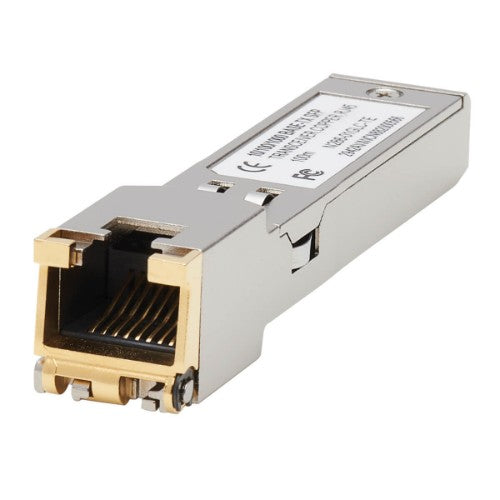

SFP Transceiver for Connecting Copper Cabling to Your Cisco Network Switch or Router
This SFP transceiver allows you to connect a copper Cat6 cable to a 10/100/1000 Mbps fiber network router, server or switch. It transmits data up to 328.08-ft. (100 m) and supports bi-directional Gigabit Ethernet communication up to 1.25 Gbps.

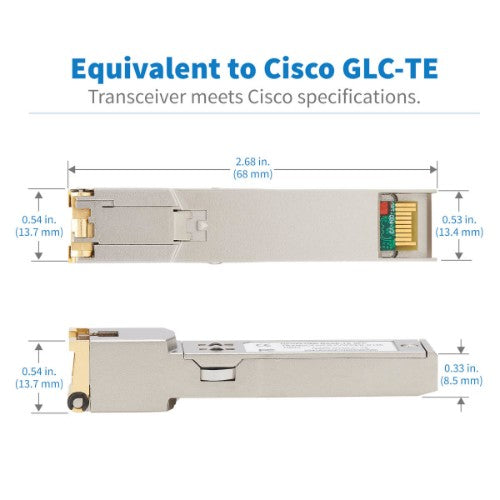

Functionally Equivalent to Cisco GLC-TE Transceiver Module
The MSA-compliant N286-01GLC-TE functions just like the equivalent Cisco GLC-TE transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router, server or switch and receive the same performance as the GLC-TE.

Hot-Swappable for Installation Without Network Interruption

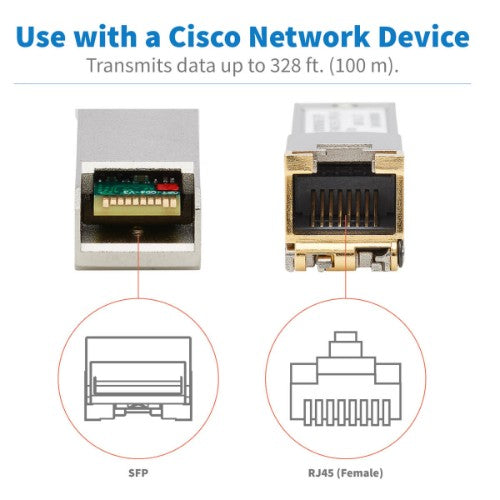

This input/output device is fully hot-swappable, so you can install it without a potentially costly 10/100/1000 Mbps network shutdown or device reboot. Just plug the SFP end of the transceiver into your Cisco network device. The other end has an RJ45 connector to link with high-speed Cat6 patch cable (sold separately). A convenient bail clasp latch helps you carefully remove the module from the device.

Premium Features for Superior Performance
The auto-sensing RJ45 port supports auto-negotiation and automatic MDI/MDI-X crossover to match the other end of the connection. The transceiver's zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.

Specifications

Performance
SFP transceiver type	Copper
Ethernet LAN	Yes
Auto MDI/MDI-X	Yes
Maximum transfer distance	100 m
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Single-mode fiber (SMF) supported	No
Multi-mode fiber (MMF) supported	No
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
SFP transceiver standard	TX
Copper ethernet cabling technology	10BASE, 100BASE, 1000BASE
Country of origin	China
Product colour	Silver
Hot-swap	Yes
Brand compatibility	Cisco
Harmonized System (HS) code	8517.62.0090
Features
Product colour	Silver
Hot-swap	Yes
Brand compatibility	Cisco
Country of origin	China
Certificates
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 85%
Storage relative humidity (H-H)	5 - 85%
Minimum operating temperature	0 °C
Maximum operating temperature	70 °C
Network
SFP transceiver type	Copper
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Weight & dimensions
Width	13.5 mm
Depth	68.1 mm
Height	8.4 mm
Weight	50 g
Package depth	78.7 mm
Package width	144.8 mm
Package height	17.8 mm
Package weight	50 g
Packaging content
Quantity per pack	1 pc(s)
Technical details
Package width	144.8 mm
Package height	17.8 mm
Hot-swap	Yes
Auto MDI/MDI-X	Yes
Maximum transfer distance	100 m
Ethernet LAN	Yes
Master (outer) case GTIN (EAN/UPC)	10037332248975
Compliance certificates	RoHS
Packaging data
Package depth	78.7 mm
Package width	144.8 mm
Package height	17.8 mm
Package weight	50 g
Logistics data
Quantity per pack	1 pc(s)
Country of origin	China
Master (outer) case width	185.4 mm
Master (outer) case length	149.9 mm
Master (outer) case height	101.6 mm
Master (outer) case gross weight	580 g
Products per master (outer) case	10 pc(s)
Harmonized System (HS) code	8517.62.0090
Master (outer) case GTIN (EAN/UPC)	10037332248975
