ALOGIC | SKU:
LCLC-03-OM4

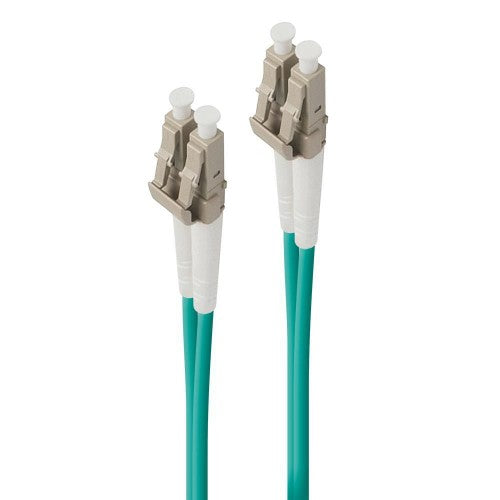

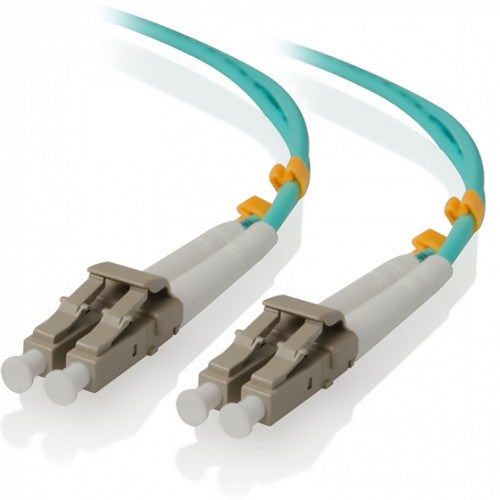

ALOGIC 3m LC-LC 40G/100G Multi Mode Duplex LSZH Fibre Cable 50/125 OM4
€12.34
Unit price
/
Unavailable
Shipping calculated at checkout.
ALOGIC 3m LC-LC 40G/100G Multi Mode Duplex LSZH Fibre Cable 50/125 OM4 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
ALOGIC 3m LC-LC 40G/100G Multi Mode Duplex LSZH Fibre Cable 50/125 OM4
Key Features
- Supports 100Gigabit applications.
- Multi Mode OM4 fibre optic cable.
- Available in various lengths starting from 0.5m to 20m length.
- Low Smoke Zero Halogen Jacket for minimal toxic emissions in case of fire.
- 100% optically tested and provided with test reports.
Description
The Multi Mode OM4 cables are designed to support very high transfer speed, the cables are capable of supporting up to 100gigabit applications at the same time being backward compatible with OM3 and OM2 infrastructure. The cables meet or exceed industry standard specifications; each cable is individually tested for maximum reliability and comes with performance reports. The ALOGIC OM4 Patch Cables are available in various lengths starting from 0.5m to 20m length.Specifications
| Technical details | |
|---|---|
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 3 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.5 dB |
| Number of optical fibres | 2 |
| Features | |
| Fibre optic type | OM4 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 3 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.5 dB |
| Data transfer rate | 100 Gbit/s |
| Certification | ETL/c-ETL |
| Ethernet interface type | 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Wavelengths supported | 850,1300 nm |
| Harmonized System (HS) code | 85447000 |
| Product colour | Turquoise |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Data transmission | |
| Data transfer rate | 100 Gbit/s |
| Certificates | |
| Certification | ETL/c-ETL |
| Weight & dimensions | |
| Cable length | 3 m |
| Cable diameter | 3 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 85447000 |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Number of optical fibres | 2 |
