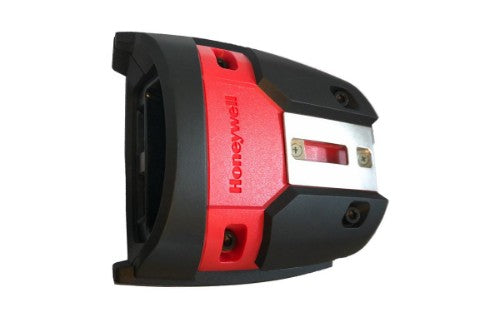

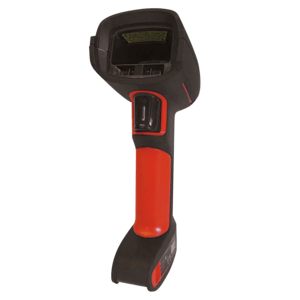

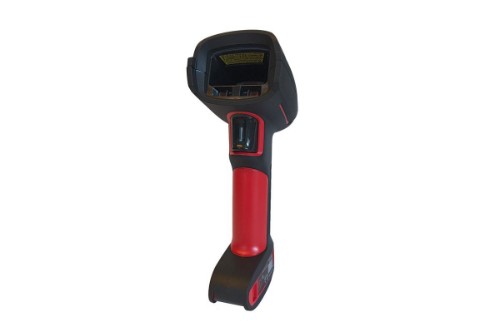

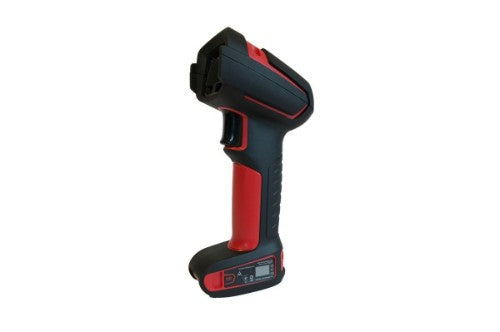

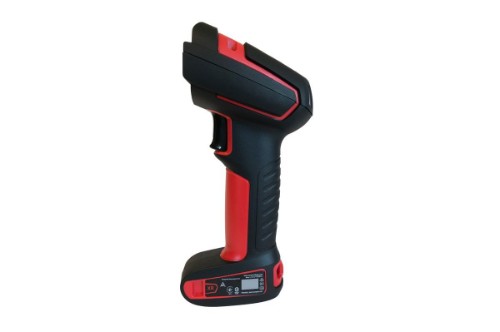

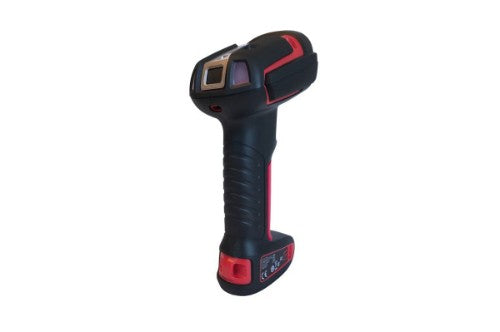

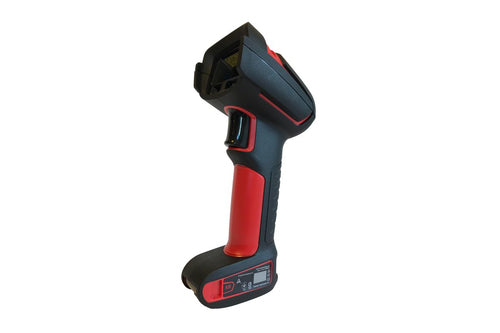

Honeywell Granit 1990iSR Handheld bar code reader 1D/2D LED Black, Red

1D/2D, Area 1280 x 800 pixel, RS-232 TTL, RS232/USB/KBW, 4500 mm/s, 2.35 W, IP67, 320 g

Description

Following a legacy of successful deployments, the next generation Granit™ XP scanners expand capabilities and redefine ultra-rugged scanning. With a best-in-class 10’ drop spec, Granit™ XP is engineered to keep on working after the impact of drops from loading docks, fork trucks, and picking trucks. The 1 meter (3.3 foot) tumble test indicates long term durability with daily knocks and drops from workstation or waist height. A best-in-class 7,000 tumble specification ensures Granit™ scanners will be ready to work for the long term. And IP67 dust and moisture sealing protect scanning performance under harsh treatment.
Barcodes make data entry faster and more accurate, maximizing productivity in your operations. However, damaged and low quality barcodes can make transactions slow and painful. Bad labels commonly occur in the warehouse/DC and industrial space due to low quality printing or damage during handling. Granit XP, built on Honeywell’s next-generation imaging platform, ensures that otherwise challenging labels do not create a bottleneck in your process. The Granit™ XP 1990iSR model offers high-durability, extreme performance scanning for standard range operations. Created for applications where high speed scanning is needed to maximize productivity, and where durability is non-negotiable for low total cost of ownership, the Granit™ XP 1990iSR scanner offers the optimal solution.
Find out more about what you can accomplish with Granit XP

Specifications

Scanning
Type	Handheld bar code reader
Linear (1D) barcodes supported	PDF417, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported	Code 39, Data Matrix, PDF417, QR Code
Yaw reading angle	-65 - 65°
Sensor type	LED
Scanner type	1D/2D
Pitch reading angle	-45 - 45°
Light levels (direct sunlight)	0 - 100 lx
Optical sensor resolution (W x H)	1280 x 800 pixels
Ports & interfaces
Connectivity technology	Wired
Standard interfaces	Keyboard wedge, RS-232, USB
Performance
International Protection (IP) code	IP67
Product colour	Black, Red
Light levels (direct sunlight)	0 - 100 lx
Design
Type	Handheld bar code reader
International Protection (IP) code	IP67
Product colour	Black, Red
Power
Power source type	DC
Power consumption (typical)	2.35 W
Power consumption (standby)	0.5 W
Input voltage	4 - 5.5 V
Weight & dimensions
Width	76 mm
Depth	192 mm
Height	100 mm
Weight	320 g
Technical details
Type	Handheld bar code reader
International Protection (IP) code	IP67
Product colour	Black, Red
Harmonized System (HS) code	84716070
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Light levels (direct sunlight)	0 - 100 lx
Logistics data
Harmonized System (HS) code	84716070
