Honeywell Genesis XP 7680g Fixed bar code reader 1D/2D LED Black

1D/2D, LED, 1280x800px, USB, 5V, 2.5W

Description

Genesis XP 7680g

The Honeywell Genesis XP 7680g is a hands-free presentation scanner that delivers an impactful customer experience while increasing business productivity. Featuring extreme performance “XP” scanning technology in a flexible design that fits multiple workflows. The compact, modern design features clean lines and warm, white illumination and the small footprint is ideal for contemporary retail environments.

BIG VALUE IN A SMALL PACKAGE

- INCREASED PRODUCTIVITY. The Genesis XP features 20% faster scanning speed and a larger scanning area than previous products. Honeywell’s field proven XP technology handles poorly printed and damaged barcodes with ease. Featuring a full 1 mega-pixel imager and fast processor, the Genesis XP reads barcodes fast and handles a high level of motion tolerance resulting in fewer repeat scans, keeping employees productive and efficient.

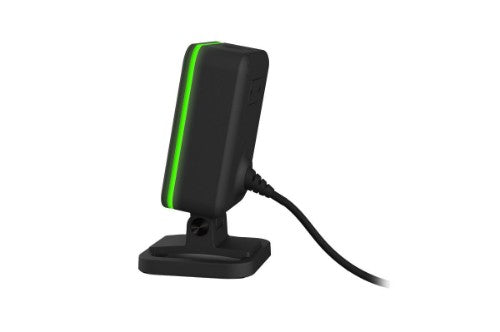

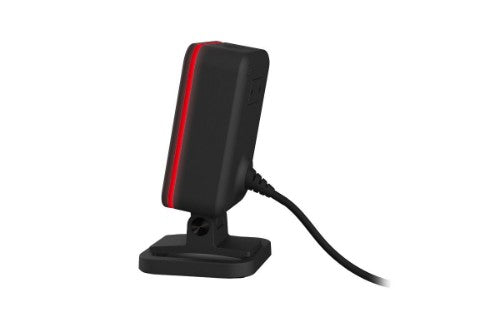

- FANTASTIC USER EXPERIENCE. The compact and modern design offers a contemporary experience with minimal counter space required. The 360 color LED ring highlights the scanning target area and provides clear feedback, offering an intuitive experience for both employees and customers. The scanning user experience is a key element for a delightful customer engagement. The warm, white light illumination is more pleasing to the eye, and automatic object detections turns the illumination completely off between scans, so the scanner is not a distraction.
- FLEXIBILITY AND ADAPTABILITY. The Genesis XP was designed with flexibility in mind allowing it to easily adapt to the workflows of today and tomorrow. In addition to the standard adjustable compact stand, smart placement accessories are now available for the Genesis XP. These new mounting accessories support wall mount, point-of-sale mount, and downward facing installations, allowing the product to be placed almost anywhere. A top mounted button is ideally placed for triggered, handheld scanning applications. A built-in auxiliary expansion port will support future smart accessories, adapting to future needs and requirements.

Specifications

Scanning
Type	Fixed bar code reader
Linear (1D) barcodes supported	Code 39
2D (matrix & stacked) barcodes supported	QR Code
Tilt reading angle	0 - 65°
Sensor type	LED
Scanner type	1D/2D
Pitch reading angle	0 - 65°
Optical sensor resolution (W x H)	1280 x 800 pixels
Ports & interfaces
Connectivity technology	Wired
Standard interfaces	USB
Performance
Protection features	Shock resistant
International Protection (IP) code	IP52
Product colour	Black
Design
Type	Fixed bar code reader
Protection features	Shock resistant
International Protection (IP) code	IP52
Product colour	Black
Power
Power consumption	500 mA
Power source type	DC
Power consumption (typical)	2.5 W
Input voltage	5 V
Weight & dimensions
Width	40 mm
Depth	80 mm
Height	105 mm
Weight	340 g
Technical details
Type	Fixed bar code reader
Protection features	Shock resistant
International Protection (IP) code	IP52
Product colour	Black
Harmonized System (HS) code	84716070
Packaging data

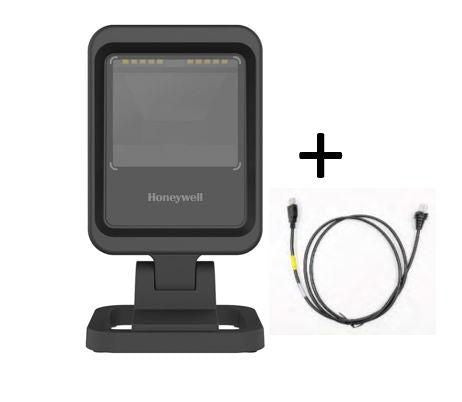

Cables included	USB
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Packaging content
Cables included	USB
Logistics data
Harmonized System (HS) code	84716070
