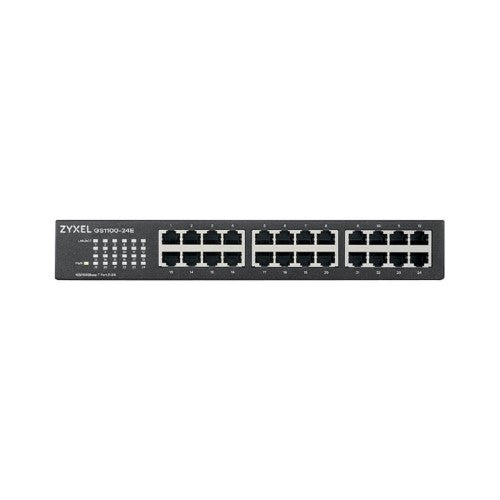

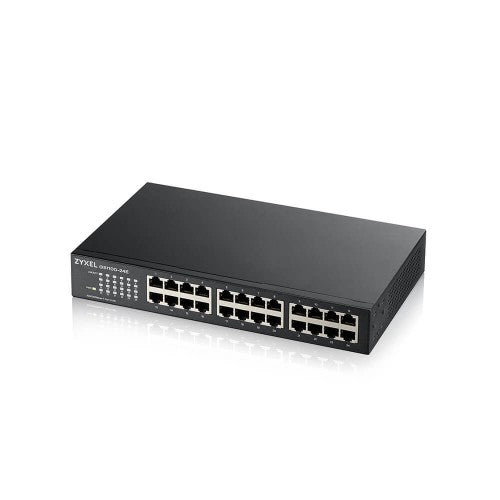

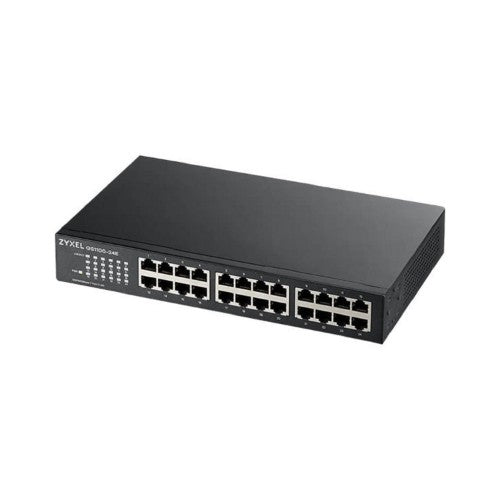

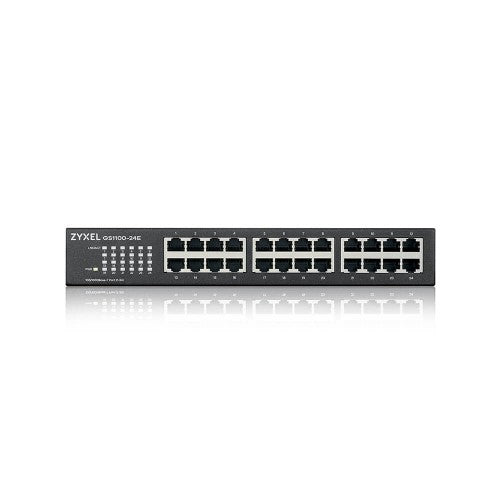

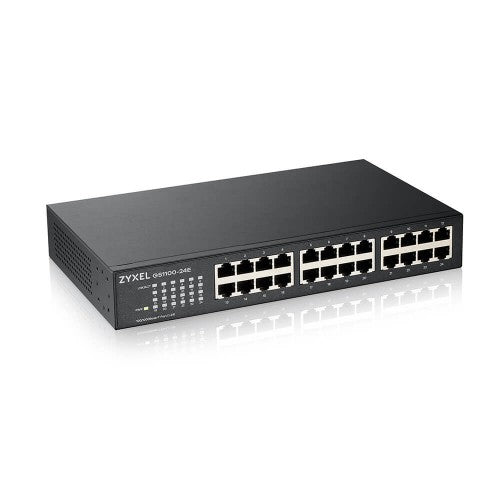

Zyxel GS1100-24E Unmanaged Gigabit Ethernet (10/100/1000) Black

Unmanaged, 24x Gigabit Ethernet, 48 Gbps

Description

Plug and play connectivity
Simply unbox the GS1100 unmanaged switch, you can enjoy instant plug-n-play Gigabit connectivity without any additional settings required with auto-negotiation and auto MDI/MDI-X. Supporting 802.1p prioritization and jumbo frame, the switch ensures smooth voice and video traffic for your office network.

Whisper quiet operation
The GS1100 Series has fanless design that ensures silent operation in small or quiet office environments. The GS1100-10HP PoE model is specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments.

Energy saving
The GS1100 features Energy Efficient Ethernet(IEEE 802.3az) which automatically detects network traffic and adjusts power consumption dynamically. Zyxel’s green features also adjust power consumption by detecting the link status and cable length reducing business operating expenses.

Support PoE+
The GS1100-10HP supports PoE+ (IEEE 802.3at) which provides a maximum of 30W per port, delivering fully automated support for powering compatible IP phones, video surveillance cameras or wireless access points.

Flexible choices for your office
The GS1100 Series switch offers multiple options including 8-port, 16-port, and 24-port for diversified office applications.

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Network
Networking standards	IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
Jumbo frames	10000
Packet buffer memory	0.525 MB
MAC address table	8000 entries
Switching capacity	48 Gbit/s
Forwarding rate	35.7 Mpps
Design
Wall mountable	Yes
Product colour	Black
LED indicators	Yes
Rack mounting	Yes
Certification	LVD, BSMI, EMC Class A, CE, FCC, RCM, ICES-003, BSMI, RoHS, REACH
Performance
Mean time between failures (MTBF)	366919 h
Fanless	Yes
Packet buffer memory	0.525 MB
Harmonized System (HS) code	85176990
Power
Power consumption (max)	13 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Heat dissipation	43.53 BTU/h
Weight & dimensions
Width	267 mm
Depth	162 mm
Height	42 mm
Weight	1.5 kg
Packaging content
Rack mount kit	Yes
Cables included	AC
Technical details
Product colour	Black
Mean time between failures (MTBF)	366919 h
Rack mounting	Yes
Memory
Packet buffer memory	0.525 MB
Certificates
Certification	LVD, BSMI, EMC Class A, CE, FCC, RCM, ICES-003, BSMI, RoHS, REACH
Indication
LED indicators	Yes
Packaging data
Rack mount kit	Yes
Cables included	AC
Logistics data
Harmonized System (HS) code	85176990
