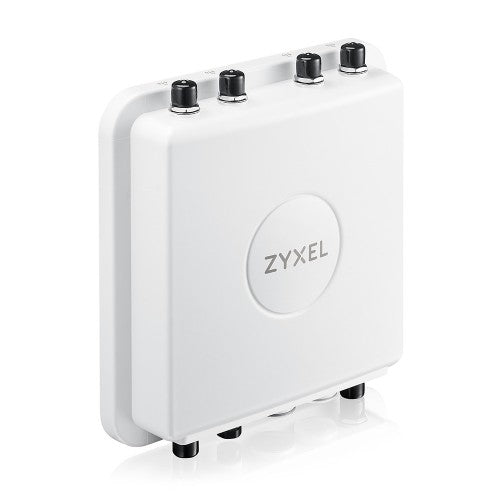

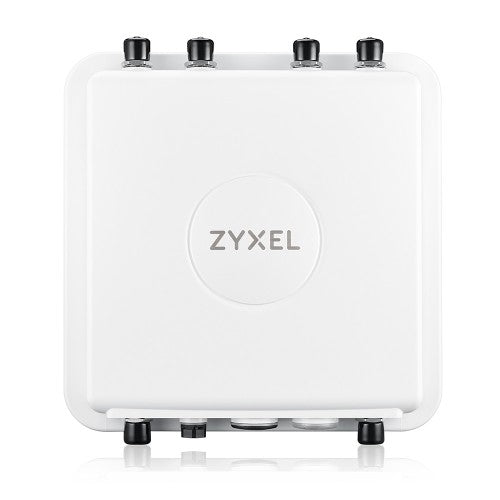

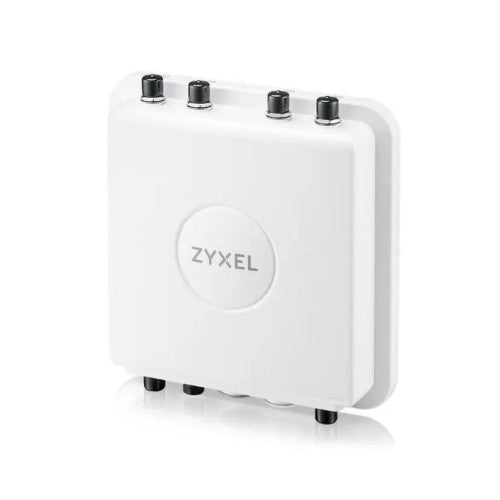

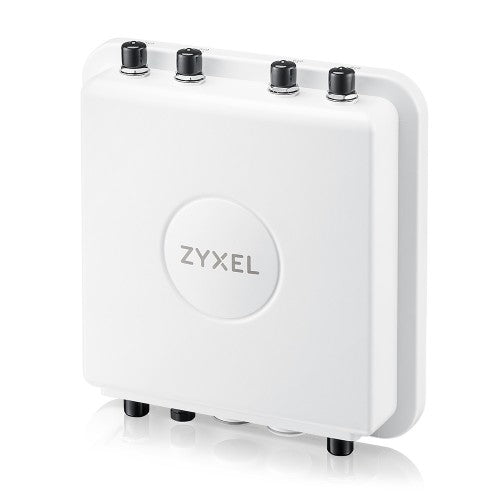

Zyxel WAX655E 4800 Mbit/s White Power over Ethernet (PoE)

WAX655E, 802.11ax 4x4 Outdoor Access Point external Antennas (not included), Single Pack exclude Power Adaptor, 1 year Nebula Pro pack license bundled, EU and UK, UNIFIED AP, ROHS

Description

Extend WiFi to Crowded Outdoor Environments

Designed to combat congested mobile data networks and bad WiFi offloading, the Zyxel WAX655E access point provides multi-gigabit wireless connectivity in large open areas, such as stadiums and parking lots.

Fully equipped with the latest WiFi 6 technologies, the WAX655E is able to provide both superb performance and user satisfaction in public environments.

Ideal for Harsh Outdoor Connectivity
The WAX655E offers up to IP67 industry-grade weather proofing and the capability to work in extremely high- or low-temperature conditions.

Also, the built-in surge protector of WAX655E provides an extra layer of protection for your investments against surges caused by lightning.

Extending Your WiFi Coverage with Smart Mesh
Zyxel’s Smart Mesh Technology not only can form dynamic wireless links between APs to extend coverage in the high-density outdoor environments, but also bridge the wireless connectivity from one building to another. The WAX655EE is an ideal choice for expanding your wireless network to busy outdoor areas as well as forming an interconnected wireless network through outdoor inter-building links.

Manage it your way!
The WAX655E comes with the support of NebulaFlex Pro, which offers the full flexibility for users to easily switch between, Zyxel Nebula cloud-managed, controller-managed, and standalone modes. You can choose the appropriate managed-mode best suited for your needs.

Specifications

Data transmission
Ethernet LAN data rates	1000,2500 Mbit/s
Maximum data transfer rate	4800 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Firmware upgradeable	Yes
Web-based management	Yes
VLAN support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	1000,2500 Mbit/s
Certification	FCC Part 15C, FCC Part 15E, ETSI EN 300 328, EN 301 893, LP0002
Maximum data transfer rate	4800 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Network
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Management features
VLAN support	Yes
Firmware upgradeable	Yes
Web-based management	Yes
Features
6 GHz	No
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	1000,2500 Mbit/s
Maximum data transfer rate	4800 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	575 Mbit/s
Security
Security algorithms	WEP, WPA2, WPA2-PSK, WPA3
MAC address filtering	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (max)	25.5 W
Power over Ethernet (PoE)	Yes
Design
International Protection (IP) code	IP67
Placement	Pole, Wall
Product colour	White
Certification	FCC Part 15C, FCC Part 15E, ETSI EN 300 328, EN 301 893, LP0002
Antenna
Number of connectors	6
Antenna type	External
Antennas quantity	6
Antenna connector type	N-type
Antenna features	Detachable antenna
Technical details
Firmware upgradeable	Yes
Certificates
Certification	FCC Part 15C, FCC Part 15E, ETSI EN 300 328, EN 301 893, LP0002
Weight & dimensions
Width	256 mm
Depth	257 mm
Weight	1.36 kg
Height	70 mm
Package width	427 mm
Package depth	284 mm
Package height	111 mm
Package weight	2.92 kg
Packaging data
Package width	427 mm
Package depth	284 mm
Package height	111 mm
Package weight	2.92 kg
Packaging content
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-40 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	10 - 90%
Logistics data
Quantity per pack	1 pc(s)
