Seasonic | SKU:
FOCUS-SGX-650
Sold out

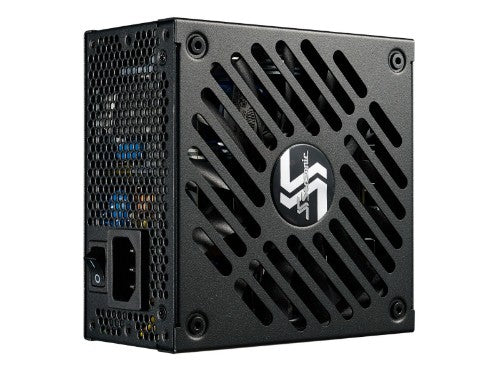

Seasonic FOCUS SGX-650 power supply unit 650 W 20+4 pin ATX SFX Black
€123.82
Unit price
/
Unavailable
Shipping calculated at checkout.
Seasonic FOCUS SGX-650 power supply unit 650 W 20+4 pin ATX SFX Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
650W, Modular, SFX/ATX, MB (24/20 pins), CPU (8/4 pins), 4x PCIe (8/6 pins), 4x SATA, 3x Molex, 125x125x63.5 mm
80 PLUS GOLD
The FOCUS PLUS Gold Series achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.
COMPACT SFX-L SIZE
The versatile FOCUS SGX measures at only 125 mm in both length and width. This super-compact size allows it to fit into various sized computer cases.
HYBRID SILENT FAN CONTROL
The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.
FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
HOW IT WORKS
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
Key Features
- 80 PLUS Gold certified
- Compact SFX-L Size - 125 (L) x 125 (W) x 63.5 (H) mm
- Tight Voltage Regulation
- Cable-free Connection Design
- S3FC - Fanless until 30 % load
- SFX to ATX Expandability
- Gold plated connectors
- 10 years warranty
Reasons To Buy
80 PLUS® GOLD
The FOCUS PLUS Gold Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.Description
The long-awaited new line of Seasonic's FOCUS SGX is versatile in its application, and powerful with a small footprint. The FOCUS SGX is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case. The Seasonic hybrid fan control is always enabled to optimize the cooling according to necessity.80 PLUS GOLD
The FOCUS PLUS Gold Series achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.
COMPACT SFX-L SIZE
The versatile FOCUS SGX measures at only 125 mm in both length and width. This super-compact size allows it to fit into various sized computer cases.
HYBRID SILENT FAN CONTROL
The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.
FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
HOW IT WORKS
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
Specifications
| Cooling | |
|---|---|
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cooling type | Active |
| Design | |
| 80 PLUS certification | 80 PLUS Gold |
| Certification | cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH |
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Illumination | No |
| Fan location | Top |
| Cooling type | Active |
| Power | |
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 9 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage, Overheating |
| Ports & interfaces | |
| Motherboard power cable length | 35 cm |
| SATA power cable length | 600 mm |
| Peripheral (Molex) power cable length | 700 mm |
| CPU power cable length | 40 cm |

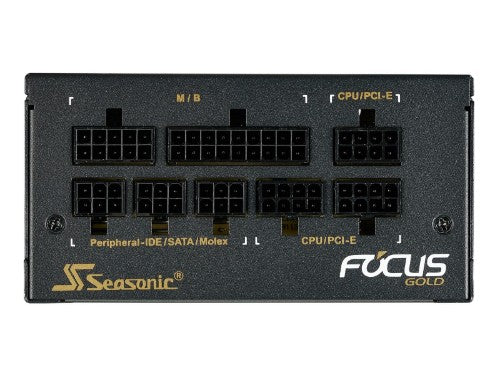

| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Fully-Modular |
| Performance | |
| Power supply unit (PSU) form factor | SFX |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Mean time between failures (MTBF) | 100000 h |
| Certification | cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
| Width | 125 mm |
| Depth | 125 mm |
| Height | 63.5 mm |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | RoHS |
| Certificates | |
| 80 PLUS certification | 80 PLUS Gold |
| Certification | cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH |
