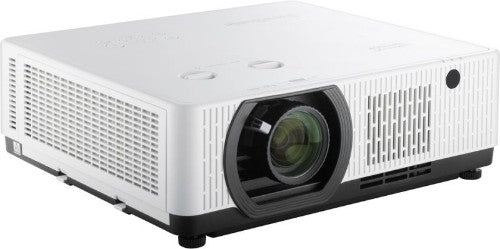

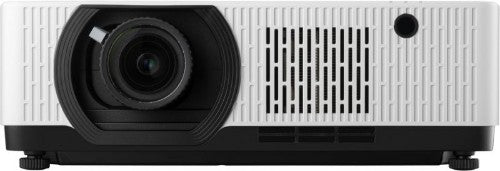

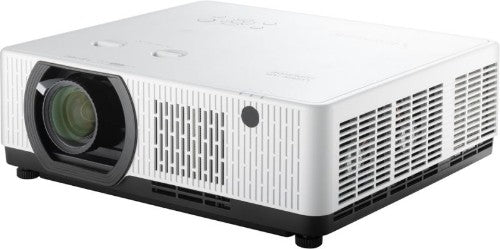

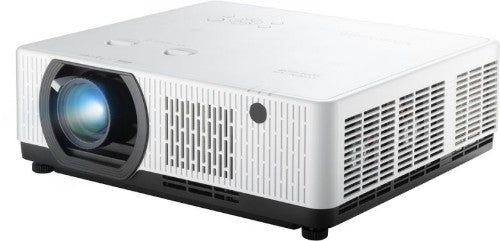

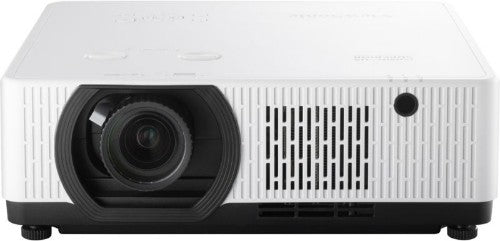

Viewsonic LSC801WU data projector Standard throw projector 8000 ANSI lumens 3LCD WUXGA (1920x1200) White

8000 ANSI Lumens WUXGA Laser Installation Projector

Key Features

• 8,000 ANSI Lumens offering bright images in any environment
• Up to a 300" ultra-large screen with a lower cost-per-inch
• Supports a 21:9 aspect ratio, ideal for Microsoft Teams Rooms
• Installation flexibility: H/V lens shift, 1.6x optical zoom, and H/V keystone correction
• 2nd generation laser phosphor technology with a lifespan up to 30,000 hours
• Centralized LAN control for efficient management

Description

The LSC801WU is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Utilizing 2nd generation laser phosphor technology, this projector delivers 8,000 ANSI Lumens of brightness for up to 30,000 hours and can project an ultra-large screen up to 300” in WUXGA resolution. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like H/V lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection capabilities, the LSC801WU offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.

Bright Images for Large Venues
Delivering 8,000 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces.

Ultra-large Screen with Lower Cost-per-inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.​

Next-Gen Meeting Experience with 21:9 Aspect Ratio
The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.

Adaptable to Any Environment

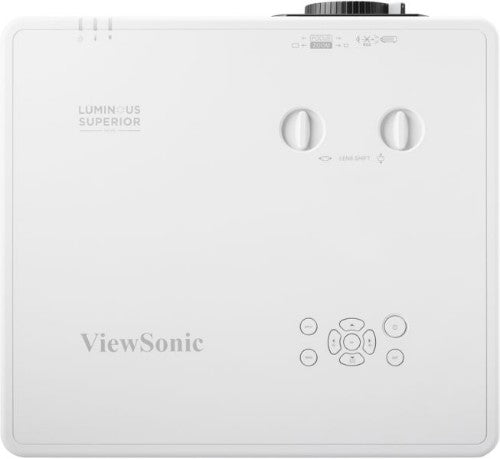

Featuring tool-free lens shift control knobs, 1.6x optical zoom, H/V keystone correction, and 4-corner adjustment capabilities, this projector allows image adjustments without relocation, ensuring it fits any environment.

2nd Generation Laser Phosphor Technology
The projector adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, lamp-free design, and instant power on/off from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.

Centralized Control for Management Efficiency
The projector is compatible with Crestron, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency​.

Specifications

Projector
Number of colours	1.07 billion colours
Projector native resolution	WUXGA (1920x1200)
Native aspect ratio	21:9
Screen size compatibility	762 - 7620 mm (30 - 300")
Projection distance	0.78 - 12.99 m
Contrast ratio (typical)	3000000:1
Zoom capability	Yes
Vertical synchronization (min)	0.023 kHz
Vertical synchronization (max)	0.085 kHz
Matrix type	MLA
Matrix size	1.63 cm (0.64")
Keystone correction, vertical	+-30°
Keystone correction, horizontal	+-25°
Horizontal synchronization (min)	15 kHz
Horizontal synchronization (max)	100 kHz
Projection technology	3LCD
Projector brightness	8000 ANSI lumens
Smart projector	No
Screen size (max)	7.62 m (300")
Lamps
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Light source
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Light source brightness	8500 lm
Lens system
Zoom capability	Yes
Focal length range	17.2 - 27.7 mm
Aperture range (F-F)	1.5 - 2.08
Horizontal lens shift range	-29 - 29%
Vertical lens shift range	0 - 60%
Throw ratio	1.2 - 2
Optical zoom	1.6x
Offset	0%
Digital zoom	4x
Video
Full HD	Yes
3D	No
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Supported graphics resolutions	640 x 480 (VGA), 3840 x 2160
Audio
Built-in speaker(s)	Yes
RMS rated power	16 W

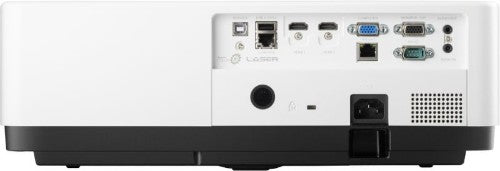

Ports & interfaces
HDMI connector type	Full-size
USB 2.0 Type-B ports quantity	1
PC in (D-Sub)	Yes
HDMI version	1.4
VGA (D-Sub) ports quantity	2
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	2
Composite video in	0
Audio (L/R) in	0
Serial interface type	RS-232
PC Audio out	Yes
PC Audio in	Yes
DVI port	No
Component video (YPbPr/YCbCr) in	0
AC (power) in	Yes
USB 2.0 Type-A ports quantity	1
Network
Smart TV	No
Ethernet LAN	Yes
Wi-Fi	No
Ethernet LAN (RJ-45) ports	2
Storage
Card reader integrated	No
Sound emission
Noise level	37 dB
Noise level (economic mode)	27 dB
Technical details
PC in (D-Sub)	Yes
Product colour	White
HDCP	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Multi
Air filter	Yes
Quantity per pack	1 pc(s)
Image lag time	60 ms
Performance
HDCP	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Multi
Noise level	37 dB
Noise level (economic mode)	27 dB
Air filter	Yes
Features
HDCP	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Multi
Noise level	37 dB
Noise level (economic mode)	27 dB
Air filter	Yes
HDCP version	1.4
Multimedia
Built-in speaker(s)	Yes
RMS rated power	16 W
Design
Product type	Standard throw projector
Product colour	White
Display
Built-in display	No
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source	AC
Power consumption (typical)	385 W
Power consumption (standby)	0.5 W
Packaging data
Package width	510 mm
Package depth	498 mm
Package height	260 mm
Package weight	10.9 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Package width	510 mm
Package depth	498 mm
Package height	260 mm
Weight	7.9 kg
Width	405 mm
Depth	358 mm
Height	137 mm
Package weight	10.9 kg
Packaging content

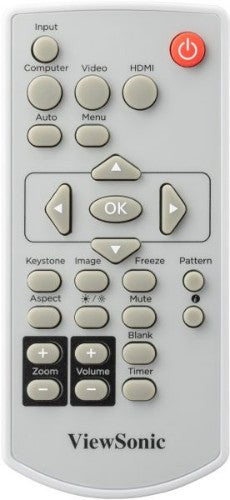

Remote control included	Yes
Cables included	AC
Logistics data
Quantity per pack	1 pc(s)
