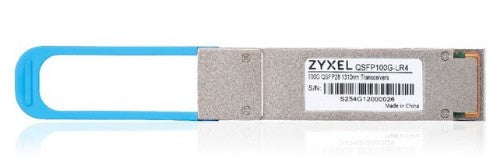

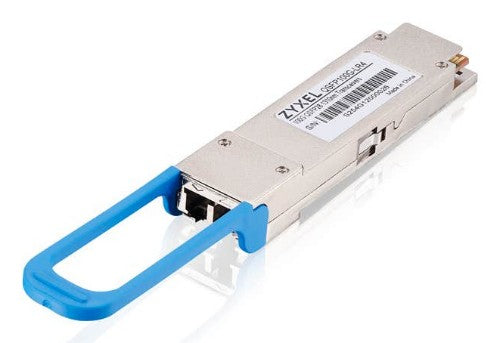

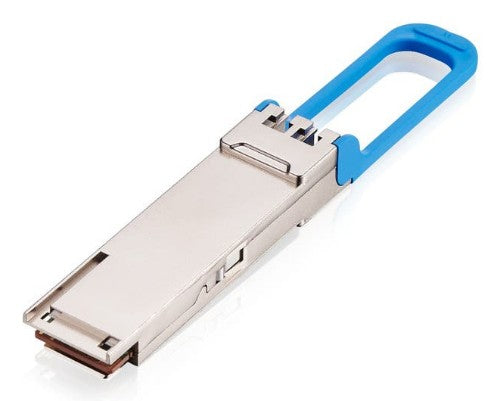

Zyxel 100G QSFP28 1310nm Transceiver

QSFP28, 100G, LC, LR4, 1310nm, SMF

Key Features

• 100G QSFP28 single-mode transceiver, duplex LC connector, 1310 nm Wavelength
• Easy to use, plug and play
• Low power dissipation, high network stability
• Industry standard compliance
• 802.3z SFP Multi-Source Agreement (MSA) compliance
• Compact size, high port density

Description

The Zyxel transceiver family follows industry standards to assure compatibility with switches from other manufacturers without barrier set by proprietary technologies. The comprehensive product range including 1/10/25/100GbE transceivers, also Direct Attached Cable 1M/3M allows users to plug the proper model onto the network to extend the physical coverage easily

Hot-swappable design facilitates network maintenance
Independent transceiver design provides the highest network maintenance flexibility. Transceivers can be freely added when required, and infrastructure upgrades or transceiver repairs can be done easily by just replacing the transceiver instead of the whole device.

Bi-directional transceivers maximizes usage of existing fiber plant
Traditional fiber optic networking requires two strands of fiber to accomplish communications, in which one strand is reserved for sending signals, while the other is for receiving. On the other hand, bi-directional, dual-wavelength transceivers can establish communications over just one strand of fiber by using two separate optical wavelengths: one receives and the other transmits signals. Transmission capacity can be expanded immediately without additional cost laying new fiber.

Supporting Digital Diagnostics Monitoring Interface (DDMI) SFP enhances management capability
The enhanced digital interface enables a real time link to be established between the switch and the SFP transceiver. This enables the switch to access operating parameters within the fiber link. This includes digital features such as soft control and monitoring of SFP I/O signals. In addition, the DDMI functionality enables the capability to implement digital alarms and warnings. This feature ensures that the business can be proactive in preventative maintenance of the network and ensure business continuity.

Specifications

Performance
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Networking standards	IEEE 802.3z
Wavelength	1310 nm
Duplex system	Full
Maximum data transfer rate	100000 Mbit/s
Interface type	QSFP28
Single-mode fiber (SMF) supported	Yes
Ethernet interface type	100 Gigabit Ethernet
SFP transceiver standard	LR4
Fiber ethernet cabling technology	100GBASE
Country of origin	China
Easy to install	Yes
Product colour	Silver
Plug and Play	Yes
Hot-Plug support	Yes
Hot-swap	Yes
Brand compatibility	MSA Compliant
Features
Easy to install	Yes
Product colour	Silver
Plug and Play	Yes
Hot-Plug support	Yes
Hot-swap	Yes
Brand compatibility	MSA Compliant
Form factor	QSFP28
Country of origin	China
Power
Input voltage	3.135 - 3.465 V
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Minimum operating temperature	0 °C
Maximum operating temperature	70 °C
Network
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Networking standards	IEEE 802.3z
Maximum data transfer rate	100000 Mbit/s
Interface type	QSFP28
Ethernet interface type	100 Gigabit Ethernet
Weight & dimensions
Width	118.4 mm
Depth	19 mm
Height	9.5 mm
Weight	45 g
Packaging content
Quantity per pack	1 pc(s)
Technical details
Plug and Play	Yes
Hot-Plug support	Yes
Hot-swap	Yes
Wavelength	1310 nm
Duplex system	Full
Logistics data
Quantity per pack	1 pc(s)
Country of origin	China
