Zyxel | SKU:
QSFP100G-SR4-ZZ0101F
Sold out

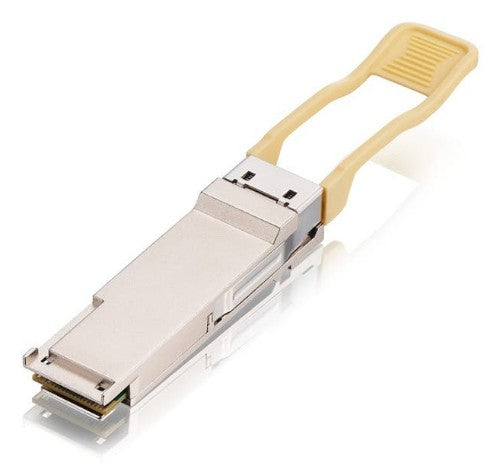

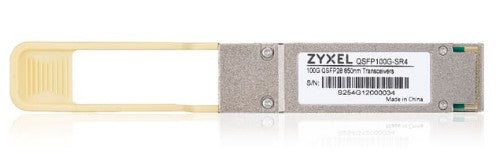

Zyxel 100G QSFP28 850nm Transceiver
€112.86
Unit price
/
Unavailable
Shipping calculated at checkout.
Zyxel 100G QSFP28 850nm Transceiver is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
QSFP28, 100G, MPO-12, SR4, 850nm, MMF
Hot-swappable design facilitates network maintenance
Independent transceiver design provides the highest network maintenance flexibility. Transceivers can be freely added when required, and infrastructure upgrades or transceiver repairs can be done easily by just replacing the transceiver instead of the whole device.
Bi-directional transceivers maximizes usage of existing fiber plant
Traditional fiber optic networking requires two strands of fiber to accomplish communications, in which one strand is reserved for sending signals, while the other is for receiving. On the other hand, bi-directional, dual-wavelength transceivers can establish communications over just one strand of fiber by using two separate optical wavelengths: one receives and the other transmits signals. Transmission capacity can be expanded immediately without additional cost laying new fiber.
Supporting Digital Diagnostics Monitoring Interface (DDMI) SFP enhances management capability
The enhanced digital interface enables a real time link to be established between the switch and the SFP transceiver. This enables the switch to access operating parameters within the fiber link. This includes digital features such as soft control and monitoring of SFP I/O signals. In addition, the DDMI functionality enables the capability to implement digital alarms and warnings. This feature ensures that the business can be proactive in preventative maintenance of the network and ensure business continuity.
Key Features
- 100G QSFP28 multi-mode transceiver, MPO12 connector, 850 nm Wavelength
- Easy to use, plug and play
- Low power dissipation, high network stability
- Industry standard compliance
- 802.3z SFP Multi-Source Agreement (MSA) compliance
- Compact size, high port density
Description
The Zyxel transceiver family follows industry standards to assure compatibility with switches from other manufacturers without barrier set by proprietary technologies. The comprehensive product range including 1/10/25/100GbE transceivers, also Direct Attached Cable 1M/3M allows users to plug the proper model onto the network to extend the physical coverage easilyHot-swappable design facilitates network maintenance
Independent transceiver design provides the highest network maintenance flexibility. Transceivers can be freely added when required, and infrastructure upgrades or transceiver repairs can be done easily by just replacing the transceiver instead of the whole device.
Bi-directional transceivers maximizes usage of existing fiber plant
Traditional fiber optic networking requires two strands of fiber to accomplish communications, in which one strand is reserved for sending signals, while the other is for receiving. On the other hand, bi-directional, dual-wavelength transceivers can establish communications over just one strand of fiber by using two separate optical wavelengths: one receives and the other transmits signals. Transmission capacity can be expanded immediately without additional cost laying new fiber.
Supporting Digital Diagnostics Monitoring Interface (DDMI) SFP enhances management capability
The enhanced digital interface enables a real time link to be established between the switch and the SFP transceiver. This enables the switch to access operating parameters within the fiber link. This includes digital features such as soft control and monitoring of SFP I/O signals. In addition, the DDMI functionality enables the capability to implement digital alarms and warnings. This feature ensures that the business can be proactive in preventative maintenance of the network and ensure business continuity.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Fiber optic connector | MPO12 |
| Networking standards | IEEE 802.3z |
| Wavelength | 850 nm |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP28 |
| Multi-mode fiber (MMF) supported | Yes |
| Ethernet interface type | 100 Gigabit Ethernet |
| SFP transceiver standard | SR4 |
| Fiber ethernet cabling technology | 100GBASE |
| Country of origin | China |
| Easy to install | Yes |
| Product colour | Silver |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Brand compatibility | MSA Compliant |
| Features | |
| Easy to install | Yes |
| Product colour | Silver |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Brand compatibility | MSA Compliant |
| Form factor | QSFP28 |
| Country of origin | China |
| Power | |
| Input voltage | 3.135 - 3.465 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | MPO12 |
| Networking standards | IEEE 802.3z |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP28 |
| Ethernet interface type | 100 Gigabit Ethernet |
| Weight & dimensions | |
| Width | 125.7 mm |
| Depth | 19 mm |
| Height | 15.1 mm |
| Weight | 39 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Wavelength | 850 nm |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Country of origin | China |
