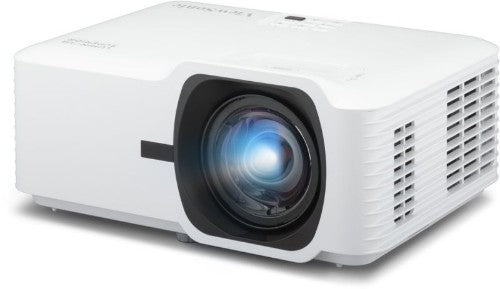

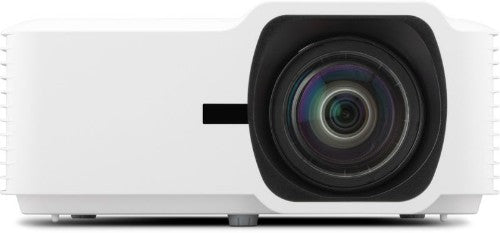

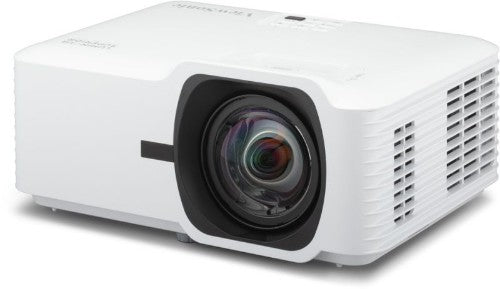

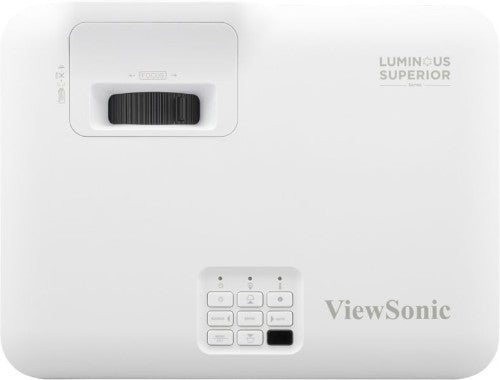

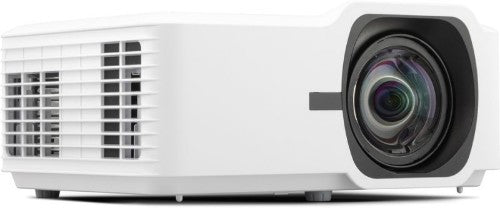

Viewsonic LSD400HD-ST data projector Standard throw projector 4000 ANSI lumens DLP 1080p (1920x1080) White

4000 ANSI Lumens 1080p Short Throw Laser Installation Projector

Key Features

• 3rd generation laser phosphor technology with a lifespan up to 30,000 hours
• 0.5 short throw for large images even in limited spaces
• 4,000 ANSI Lumens and 1080p resolution for clear images in any environment
• High native contrast ratio powered by a 0.65” DMD chip and DLP technology
• Installation flexibility: H/V keystone, 4 corner adjustment, and 360° projection
• Centralized LAN control for efficient management

Description

The LSD400HD-ST is part of ViewSonic’s Luminous Superior Series, a lamp-free projector lineup designed for commercial and educational environments. Powered by 3rd-generation laser phosphor technology, it provides 4,000 ANSI Lumens of brightness and an impressive lifespan of up to 30,000 hours. Its lamp-free design ensures eco-friendliness and cost-efficiency by reducing up to 49% power consumption than competing lamp projectors. With a 0.5 short throw, it delivers a 100” image from just 1.1 meters, ideal for immersive visuals in space-constrained environments. Delivering ultra-large projections up to 300” in sharp 1080p Full HD resolution, this projector leverages high native contrast from a 0.65” DMD chip with DLP technology. Equipped with H/V keystone & 4 corner correction, and 360° projection, the LSD400HD-ST supports flexible installation options, making it an excellent choice for golf simulation setups, exhibitions, and retail applications.

Bright, Compact, Durable
The LSD400HD-ST incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.

Brilliant Clarity in Every Detail
Delivering 4,000 ANSI Lumens, the LSD400HD-ST projects vibrant, razor-sharp images in 1080p Full HD, making it ideal for golf simulators, exhibitions, and retail environments.

Go Big, ​Even in Small Spaces
Enjoy large images even in small spaces with a 0.5 short throw ratio. Capable of projecting a 100” screen from just 1.1 meters away, the LSD400HD-ST allows flexible installation—delivering immersive golf simulation experiences from the comfort of your home.

Unmatched Contrasts, Enhanced Visibility
Experience enhanced visuals with the LSD400HD-ST, boasting high contrast thanks to DLP technology and an advanced 0.65" DMD chip from Texas Instruments. This provides deeper blacks and richer depth, ensuring an exceptional viewing experience.

Save on Costs and Energy
With its advanced lamp-free light source, the LSD400HD-ST offers a highly energy-efficient and cost-saving display solution by consuming up to 49% less power than competing projectors.

Reliable Long-Term Performance with DLP Projection Technology​
With DLP technology, the LSD400HD-ST maintains consistent color performance over time, free from any yellowing issues. Featuring a sealed engine design (IP6X), it is filter-free, preventing dust from affecting internal components and ensuring minimal maintenance. Moreover, it offers crisp and seamless image quality, displaying remarkable contrast and eliminating the noticeable screen-door effect.

Get ​​Perfectly-Shaped Images Effortlessly
Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.

Versatile Creative Application​s
The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors, and its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.

Centralized Control for Management Efficiency
The LSD400HD-ST is compatible with Crestron, AMX, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency​.

Brilliant Colors for an Authentic Golf Experience
Powered by ViewSonic’s advanced color-tuning technology, the projector features a dedicated Golf Mode that enhances colors, especially greens and blues, more vivid and brings fairways and putting surfaces to life with striking realism, creating a golf experience that feels as close to reality as possible.

Upgrade Your Projector with Wireless Content Casting
Enhance your projector with the ViewShare Wireless Screen Casting Kit for seamless wireless content sharing. The projector‘s built-in 5V/1.5A USB-A output powers the dongle, enabling simultaneous multimedia streaming and power charging without adapters. *ViewShare sold separately

A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop. This efficient solution, developed exclusively by ViewSonic, ensures optimal performance without the hassle.Learn more: https://youtu.be/irlhJLpDHas*The latest projector software update can be found in the download section at the bottom of the page when available.

Specifications

Projector
Number of colours	1.07 billion colours
Projector native resolution	1080p (1920x1080)
Screen size compatibility	1016 - 7620 mm (40 - 300")
Projection distance	0.44 - 3.29 m
Contrast ratio (typical)	3000000:1
Zoom capability	Yes
Vertical synchronization (min)	0.024 kHz
Vertical synchronization (max)	0.12 kHz
Matrix type	DMD
Matrix size	1.65 cm (0.65")
Keystone correction, vertical	+-15°
Keystone correction, horizontal	+-15°
Horizontal synchronization (min)	15 kHz
Horizontal synchronization (max)	135 kHz
Projection technology	DLP
Projector brightness	4000 ANSI lumens
Zoom type	Manual
Smart projector	No
Screen size (max)	7.62 m (300")
Lamps
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Light source
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Light source brightness	4800 lm
Lens system
Fixed focal length	7.51 mm
Zoom capability	Yes
Focus	Manual
Throw ratio	0.5
Offset	132%
F-number (relative aperture)	2.8
Digital zoom	2x
Zoom type	Manual
Video
Full HD	Yes
3D	No
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supported graphics resolutions	640 x 480 (VGA), 3840 x 2160
Audio
Built-in speaker(s)	Yes
RMS rated power	15 W

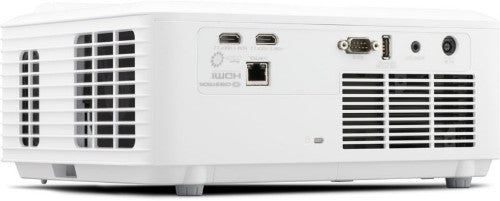

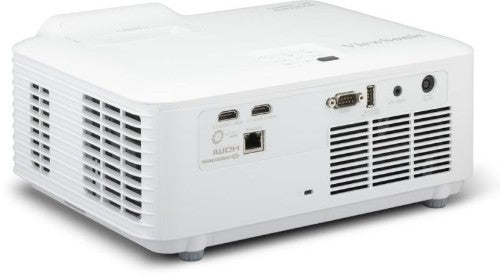

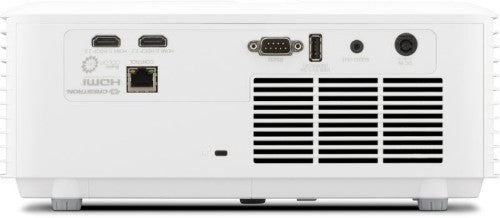

Ports & interfaces
HDMI connector type	Full-size
HDMI version	2.0
VGA (D-Sub) ports quantity	0
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
Composite video in	0
Audio (L/R) in	0
Serial interface type	RS-232
PC Audio out	Yes
DVI port	No
Component video (YPbPr/YCbCr) in	0
USB 2.0 Type-A ports quantity	1
Network
Smart TV	No
Ethernet LAN	Yes
Wi-Fi	No
Ethernet LAN (RJ-45) ports	1
Storage
Card reader integrated	No
Sound emission
Noise level	32 dB
Noise level (economic mode)	27 dB
Technical details
Product colour	White
HDCP	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Multi
Quantity per pack	1 pc(s)
Image lag time	16.7 ms
Performance
HDCP	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Multi
Noise level	32 dB
Noise level (economic mode)	27 dB
Features
HDCP	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Multi
Noise level	32 dB
Noise level (economic mode)	27 dB
HDCP version	2.2
International Protection (IP) code	IP6X
Multimedia
Built-in speaker(s)	Yes
RMS rated power	15 W
Design
Product type	Standard throw projector
Product colour	White
Cable lock slot	Yes
Display
Built-in display	No
Power
AC adapter output voltage	19.5 V
AC input voltage	100 - 240 V
Power source	AC
Power consumption (typical)	143 W
Power consumption (standby)	0.5 W
Packaging data
Package width	400 mm
Package depth	280 mm
Package height	155 mm
Package weight	4.6 kg
Security
Cable lock slot	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Package width	400 mm
Package depth	280 mm
Package height	155 mm
Weight	3.1 kg
Width	286 mm
Depth	216 mm
Height	129 mm
Package weight	4.6 kg
Packaging content
Remote control included	Yes
Warranty card	Yes
Cables included	AC
AC adapter included	Yes
Logistics data
Quantity per pack	1 pc(s)
Other features
F-number (relative aperture)	2.8
