Alcatel-Lucent OS6465T-P12-EU network switch Unmanaged L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Alcatel-Lucent OS6465T-P12-EU network switch Unmanaged L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Description

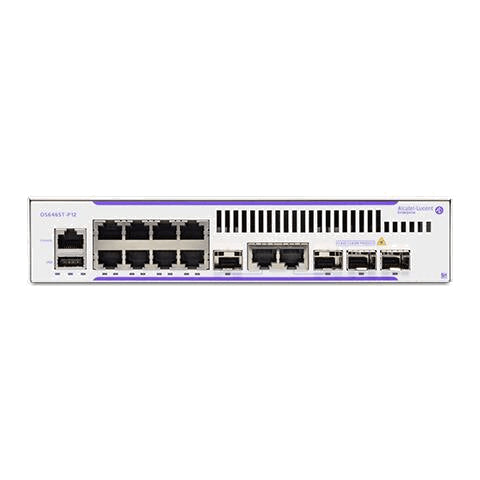

The Alcatel-Lucent OmniSwitch 6465T-12 and 6465T-P12 models are power and acoustically optimized, with a half-rack width, and have a fixed configuration chassis in a 1 RU form factor. All models can operate without fan up to 45°C ambient temperature and with fan can operate up to 60°C. Both models have an internal power supply. PoE model is 802.3af/802.3at compliant and offers 115 W of power for PoE attached devices. All ports of OmniSwitch 6465T-12 and OmniSwitch 6465T-P12 are capable of IEEE 1588v2 and MACsec. OmniSwitch 6465T switches can form a virtual chassis between any models creating a single chassis- like entity using 1G SFP ports. Up to four switches can be connected in a virtual chassis configuration with option to scale up to eight in future. For forming virtual chassis connections, any SFP transceiver or SFP+ Direct attach cables can be used on 1G SFP portsSpecifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | Yes |
| Switch layer | L2/L3 |
| Configuring Location Settings (CLI) | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Console port | RS-232/RJ-45 |
| Network | |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| Number of VLANs | 4000 |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP relay, DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
| Rack mounting | Yes |
| Performance | |
| Internal memory | 1000 MB |
| Flash memory | 1000 MB |
| Power | |
| Power consumption (max) | 19 W |
| Power consumption (typical) | 8.5 W |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 115 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Weight & dimensions | |
| Width | 217 mm |
| Depth | 280 mm |
| Height | 44 mm |
| Weight | 2 kg |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Rack mounting | Yes |
| Memory | |
| Internal memory | 1000 MB |
| Flash memory | 1000 MB |
| Indication | |
| LED indicators | Yes |
