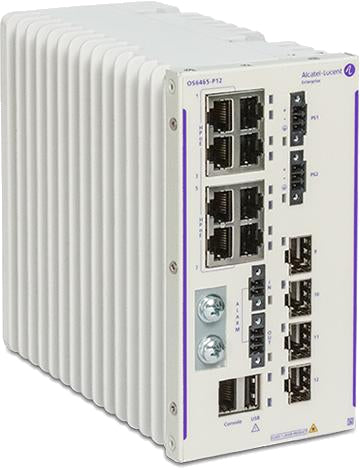

Alcatel-Lucent Enterprise OmniSwitch 6465 Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
Alcatel-Lucent Enterprise OmniSwitch 6465 Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Description
Extended temperature network switches that mount on a DIN rail and support precision timing, deliver a high-performance network for IoT devices, cameras and wireless access points, and support special timing requirements.Alcatel Lucent OmniSwitch 6465 switches are fully managed, gigabit Ethernet switches offering high security, reliability, performance and easy management. Switches are designed to operate in extended temperatures, offer higher EMI/EMC tolerance and surge protection. The DIN rail switches are ideal for a range of industrial applications such as intelligent transportation, railway and substations.
Specifications
| Management features | |
|---|---|
| Traffic shaping | Yes |
| Traffic classification | No |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Switch layer | L2/L3 |
| Cloud-managed | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 1 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| USB 2.0 ports quantity | 1 |
| Console port | USB |
| Network | |
| Auto-sensing | Yes |
| Networking standards | IEEE 1588v2 |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| IPv4 routes | 128 |
| Data transmission | |
| Jumbo frames | 9216 |
| MAC address table | 16000 entries |
| Switching capacity | 24 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 17.9 Mpps |
| Number of VLANs | 4000 |
| Design | |
| DIN rail mounting | Yes |
| Stackable | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |
| Performance | |
| Mean time between failures (MTBF) | 1421933 h |
| Flash memory | 1000 MB |
| Stackable | Yes |
| Power | |
| Power consumption (max) | 18.71 W |
| Power consumption (typical) | 11.79 W |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 4000 m |
| Heat dissipation | 40.22 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 80 mm |
| Height | 150 mm |
| Weight | 2.13 kg |
| Technical details | |
| Stackable | Yes |
| Mean time between failures (MTBF) | 1421933 h |
| Rack mounting | Yes |
| Memory | |
| Flash memory | 1000 MB |
| Indication | |
| LED indicators | Yes |
