Alcatel-Lucent Enterprise | SKU:
OS6860NPH48M-CH
Sold out
59% off

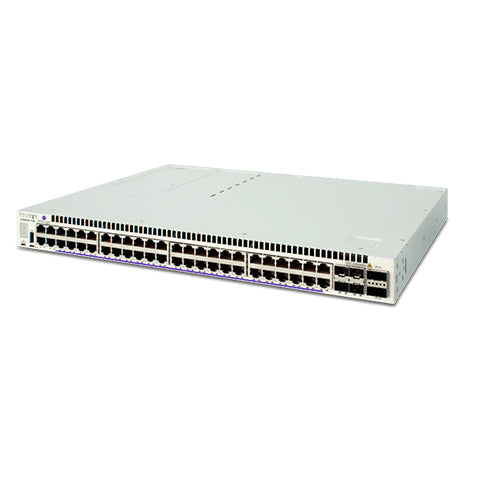

Alcatel-Lucent Enterprise OmniSwitch 6860 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
€7,059.10
€17,215.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Alcatel-Lucent Enterprise OmniSwitch 6860 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
256 Gb/s, 190.6 Mpps, 48 x 10/100/1000 Base-T ports, 4 x SFP+ (1G/10G), 2 x 20G Virtual Chassis link ports, PoE
These compact, high-density Gigabit Ethernet (GigE) and 10 GigE platforms are designed for the most demanding converged networks. With advanced Unified Access features, Alcatel-Lucent OmniSwitch 6860 and 6860E switches allow users to experience a truly application fluent network. You can monitor and control the applications running in your network with their industry-leading hardware-assisted Deep Packet Inspection capabilities.
Offering comprehensive security features, they are well-equipped to secure the network edge. These high performance, versatile LAN switches can be positioned:
- At the edge of mid- to large-sized converged enterprise networks
- At the aggregation layer
- In a small enterprise network core
- In the data center for GigE server connectivity and SDN applications
Simplicity
Save time with out-of-the- box deployment, easy management and seamless convergence of your wired and wireless networks.
Flexibility
Meets any customer configuration need, whether it's a BYOD deployment or a Software Defined Network.
Cost-saving
Low power consumption, simplified management and hardware consolidation save money.
Description
Designed for the most demanding converged networks: high-density, Unified Access switches with Smart Analytics in a compact form factor.These compact, high-density Gigabit Ethernet (GigE) and 10 GigE platforms are designed for the most demanding converged networks. With advanced Unified Access features, Alcatel-Lucent OmniSwitch 6860 and 6860E switches allow users to experience a truly application fluent network. You can monitor and control the applications running in your network with their industry-leading hardware-assisted Deep Packet Inspection capabilities.
Offering comprehensive security features, they are well-equipped to secure the network edge. These high performance, versatile LAN switches can be positioned:
- At the edge of mid- to large-sized converged enterprise networks
- At the aggregation layer
- In a small enterprise network core
- In the data center for GigE server connectivity and SDN applications
Simplicity
Save time with out-of-the- box deployment, easy management and seamless convergence of your wired and wireless networks.
Flexibility
Meets any customer configuration need, whether it's a BYOD deployment or a Software Defined Network.
Cost-saving
Low power consumption, simplified management and hardware consolidation save money.
Specifications
| Management features | |
|---|---|
| Traffic shaping | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Ports & interfaces | |
| QSFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 4 |
| USB 2.0 ports quantity | 1 |
| Fiber ports quantity | 6 |
| Fiber optic connector | QSFP+, SFP+ |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | Multiple VXLAN (MUX VLAN), Tagged VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 9216 |
| Throughput | 190.6 Mpps |
| MAC address table | 48000 entries |
| Switching capacity | 256 Gbit/s |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Static route | Yes |
| Number of VLANs | 4000 |
| Multicast Listener Discovery (MLD) snooping | MLD v1, MLD v2 |
| Security | |
| BPDU filtering/protection | Yes |
| SSH/SSL support | Yes |
| Security algorithms | EAP, HTTPS, MD5, SSH |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Root protection | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | MLD v1, MLD v2 |
| Protocols | |
| Management protocols | SNMP, Telnet, FTP |
| Supported network protocols | IPv4, IPv6 |
| Virtual Router Redundancy Protocol (VRRP) | Yes |
| Routing protocols | BGP4, IS-IS, OSPF, RIP-1, RIP-2, RIPng, VRRP |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |
| Ventilation system | Front-to-back airflow |
| Number of fans | 1 fan(s) |
| Certification | US UL 60950-1, IEC 60950-1, CAN/CSA-C22.2 No. 60950-1-03, NOM-019 SCFI, AS/NZ TS-001, UL-AR, UL-GS, CU, EAC, EN 60825-1, EN 60825-2, CDRH, IEC 60950-1/EN 60950, IEC 60950-1:2005, CCC, ANATEL, BSMI, KCC, FCC CRF Title 47 Subpart B (Class A), VCCI, AS/NZS 3548, EN 55022 (EMI & EMC ), EN 61000-3-2, EN 61000-3-3, EN 55024 |
| Performance | |
| Noise level | 43.5 dB |
| Mean time between failures (MTBF) | 121442 h |
| Internal memory | 2048 MB |
| Flash memory | 2048 MB |
| Dying Gasp | Yes |
| Stackable | Yes |
| Power | |
| Power consumption (max) | 904 W |
| Power supply included | Yes |
| Power consumption (typical) | 72.9 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3962 m |
| Heat dissipation | 248.7 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Virtual LAN features | Multiple VXLAN (MUX VLAN), Tagged VLAN |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 350 mm |
| Height | 44 mm |
| Weight | 6.49 kg |
| Optical fiber | |
| Fiber optic connector | QSFP+, SFP+ |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Noise level | 43.5 dB |
| Mean time between failures (MTBF) | 121442 h |
| Rack mounting | Yes |
| Dying Gasp | Yes |
| Memory | |
| Internal memory | 2048 MB |
| Flash memory | 2048 MB |
| Certificates | |
| Certification | US UL 60950-1, IEC 60950-1, CAN/CSA-C22.2 No. 60950-1-03, NOM-019 SCFI, AS/NZ TS-001, UL-AR, UL-GS, CU, EAC, EN 60825-1, EN 60825-2, CDRH, IEC 60950-1/EN 60950, IEC 60950-1:2005, CCC, ANATEL, BSMI, KCC, FCC CRF Title 47 Subpart B (Class A), VCCI, AS/NZS 3548, EN 55022 (EMI & EMC ), EN 61000-3-2, EN 61000-3-3, EN 55024 |
| Indication | |
| LED indicators | Yes |
