Alcatel-Lucent Enterprise | SKU:
OS2260-P24-CH
Sold out
47% off

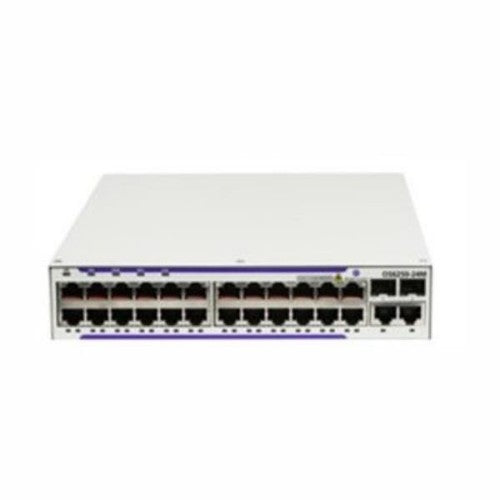

Alcatel-Lucent Enterprise OS2260-P24-CH network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
€441.87
€838.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Alcatel-Lucent Enterprise OS2260-P24-CH network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Fixed 1RU chassis 24 RJ 45 PoE 10/100/1G BaseT, 4 SFP (1G) uplink ports, 195W power budget
The gigabit WebSmart switch family offers cost-effective and user-friendly web smart features, including secure static routing capabilities.
Business-class networks benefit from switches designed for high-speed desktop connectivity with secure wireless access, advanced network features and unified communications (IP telephony, video and converged solutions).
The Alcatel-Lucent OmniSwitch 2260 enables reliable business class network performance, including security, without paying for advanced network management features. These WebSmart switches offer a lower price alternative compared to managed switches for wired connectivity, while maintaining performance, Quality of Service (QoS) and scalability, using a simplified web management interface.
Key Features
- Efficient power management; reduces operating expenses (OPEX), and lowers total cost of ownership (TCO) through low power consumption and dynamic PoE allocation, which delivers only the power needed by the attached device
- Cloud enabled with Alcatel-Lucent OmniVista Cirrus Network Management as a Service for a secure, resilient, and scalable cloud-based network management
- Triple speed (10/100/1G) user interfaces and fiber interfaces (SFPs) supporting 1000Base-X
- Future-ready support for multimedia applications with wire-rate multicast
Description
OmniSwitch 2260 WebSmart SwitchThe gigabit WebSmart switch family offers cost-effective and user-friendly web smart features, including secure static routing capabilities.
Business-class networks benefit from switches designed for high-speed desktop connectivity with secure wireless access, advanced network features and unified communications (IP telephony, video and converged solutions).
The Alcatel-Lucent OmniSwitch 2260 enables reliable business class network performance, including security, without paying for advanced network management features. These WebSmart switches offer a lower price alternative compared to managed switches for wired connectivity, while maintaining performance, Quality of Service (QoS) and scalability, using a simplified web management interface.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2 |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fiber ports quantity | 4 |
| Fiber optic connector | SFP |
| Number of management ports | 1 pc(s) |
| Network | |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3ak, IEEE 802.1p, IEEE 802.3u, IEEE 802.1s, IEEE 802.3x, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3az, IEEE 802.1x |
| VLAN support | Yes |
| Number of VLANs | 62000 |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 12 |
| Packet buffer memory | 16 MB |
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 41.7 Mpps |
| Number of multicast groups filtered | 1000 |
| Number of VLANs | 62000 |
| Multicast Listener Discovery (MLD) snooping | Multicast Listener Discovery (MLD) v1/v2 snooping |
| Security | |
| IGMP snooping | Yes |
| DHCP features | DHCP Option 82, DHCP server, DHCP client, DHCP relay |
| Multicast features | |
| Number of multicast groups filtered | 1000 |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Multicast Listener Discovery (MLD) v1/v2 snooping |
| Design | |
| Form factor | 1U |
| Product colour | White |
| Stackable | Yes |
| Rack mounting | Yes |
| Number of fans | 1 fan(s) |
| Performance | |
| Processor frequency | 1000 MHz |
| Noise level | 40 dB |
| Internal memory | 512 MB |
| Flash memory | 512 MB |
| Built-in processor | Yes |
| Packet buffer memory | 16 MB |
| Stackable | Yes |
| Power | |
| Power consumption (max) | 262.4 W |
| Power supply included | Yes |
| Power source | AC/DC/PoE |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 195 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 139 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 62000 |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 300 mm |
| Height | 44 mm |
| Weight | 3.62 kg |
| Optical fiber | |
| Fiber optic connector | SFP |
| Technical details | |
| Form factor | 1U |
| Product colour | White |
| Stackable | Yes |
| Processor frequency | 1000 MHz |
| Noise level | 40 dB |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Packet buffer memory | 16 MB |
| Internal memory | 512 MB |
| Flash memory | 512 MB |
