Alcatel-Lucent Enterprise | SKU:
OS6865-U12X-IT
Sold out

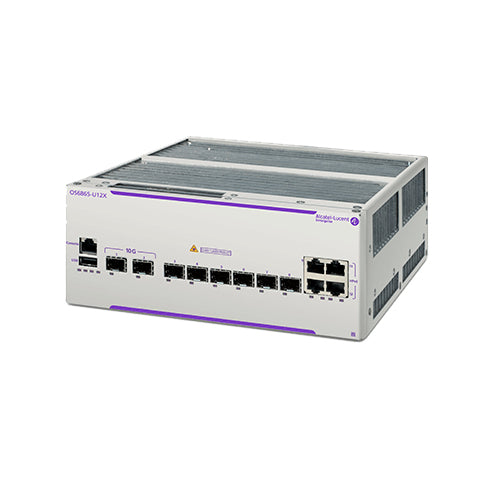

Alcatel-Lucent Enterprise OS6865-U12X-IT network switch Unmanaged L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 2U Grey, White
€3,228.38
Unit price
/
Unavailable
Shipping calculated at checkout.
Alcatel-Lucent Enterprise OS6865-U12X-IT network switch Unmanaged L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 2U Grey, White is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Fixed-configuration hardened fan-less half-rack width 2RU chassis with four 100/1000 Base-X SFP, two 1000 Base-X SFP, two fixed SFP+ (1G/10G) ports and four 10/100/1000 Base-T 75W PoE ports, IT
Designed for industrial environments this Layer 3 industrial switch supports harsh, tough industrial conditions and temperatures, delivers reliable, flexible, redundant and secure infrastructure.
The Alcatel-Lucent OmniSwitch 6865 is a high-performance hardened PoE switch that operates at extreme temperatures and is designed to be deployed in transportation and traffic control systems, power utilities, video surveillance and other outdoor installations. The OS6865 has a generous PoE budget and HPoE to power wireless access points, card readers, PTZ cameras, digital signage and sensors.
Key Features
- Offer IP and Gigabit Ethernet in rugged, industrial or outdoor environments
- Run critical applications securely and reliably
- Power Ethernet devices at the edge of your network (PoE models only)
Description
Designed for industrial environments this Layer 3 industrial switch supports harsh, tough industrial conditions and temperatures, delivers reliable, flexible, redundant and secure infrastructure.
The Alcatel-Lucent OmniSwitch 6865 is a high-performance hardened PoE switch that operates at extreme temperatures and is designed to be deployed in transportation and traffic control systems, power utilities, video surveillance and other outdoor installations. The OS6865 has a generous PoE budget and HPoE to power wireless access points, card readers, PTZ cameras, digital signage and sensors.
Specifications
| Management features | |
|---|---|
| Traffic shaping | Yes |
| ARP inspection | Yes |
| Switch type | Unmanaged |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2/L3 |
| Ports & interfaces | |
| SFP module slots quantity | 6 |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| USB 2.0 ports quantity | 1 |
| Console port | USB |
| Network | |
| Active link detection | Yes |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.11ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | Private VLAN, Protocol-based VLAN, Stacked VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 9216 |
| MAC address table | 48000 entries |
| Switching capacity | 60 Gbit/s |
| Jumbo frames support | Yes |
| Number of VLANs | 4000 |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Wall mountable | Yes |
| Form factor | 2U |
| Product colour | Grey, White |
| LED indicators | Yes |
| Rack mounting | Yes |
| Performance | |
| Internal memory | 2000 MB |
| Flash memory | 2000 MB |
| Power | |
| Power consumption (max) | 35.9 W |
| Power consumption (typical) | 29 W |
| Power source | PoE |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 300 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 74 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3962.4 m |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Virtual LAN features | Private VLAN, Protocol-based VLAN, Stacked VLAN |
| Weight & dimensions | |
| Width | 215.6 mm |
| Depth | 260 mm |
| Height | 88.1 mm |
| Weight | 5.17 kg |
| Technical details | |
| Form factor | 2U |
| Product colour | Grey, White |
| Rack mounting | Yes |
| Memory | |
| Internal memory | 2000 MB |
| Flash memory | 2000 MB |
| Indication | |
| LED indicators | Yes |
