Alcatel-Lucent Enterprise | SKU:
OS6560P24Z24-CH
Sold out

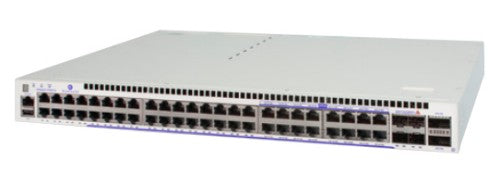

Alcatel-Lucent OmniSwitch 6560 Managed L2+/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Stainless steel
€3,320.72
Unit price
/
Unavailable
Shipping calculated at checkout.
Alcatel-Lucent OmniSwitch 6560 Managed L2+/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Stainless steel is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
48x RJ-45 ports, L2+/L3 layer, 336 Gb/s switching capacity, Multicast, PoE
Offering a design optimized for flexibility and scalability as well as low power consumption, the OmniSwitch 6560 is an outstanding edge solution. It uses the field-proven Alcatel-Lucent Operating System (AOS) to deliver highly available, secure, self-protective, easily managed and eco-friendly networks.
Key Features
- 24-port and 48-port, Power over Ethernet (PoE), non-PoE for fixed small form factor pluggable (SFP+) 10-G-ready interfaces
- Support for 10 GigE stacking or 20 GigE stacking
- Support for IEEE 802.3af, IEEE 802.3at and IEEE802.3bt compliant PoE
- Internal modular AC redundant power supplies
Description
The Alcatel-Lucent OmniSwitch 6560 Stackable Multi-Gigabit Ethernet LAN value switch family is an industry leading campus access solution for enterprise networks. With multi-gigabit ports for high-speed IEEE 802.11 ac devices, 10GigE uplinks and 20 GigE stacking, the OmniSwitch 6560 is the right solution for your next generation network.Offering a design optimized for flexibility and scalability as well as low power consumption, the OmniSwitch 6560 is an outstanding edge solution. It uses the field-proven Alcatel-Lucent Operating System (AOS) to deliver highly available, secure, self-protective, easily managed and eco-friendly networks.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+/L3 |
| Cloud-managed | Yes |
| Network | |
| IGMP snooping | Yes |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.1AE, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Auto-negotiation | Yes |
| Policy-based routing | Yes |
| Virtual LAN features | Stacked VLAN, Tagged VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Virtual LAN features | Stacked VLAN, Tagged VLAN |
| Data transmission | |
| Number of VLANs | 4000 |
| Throughput | 226 Mpps |
| MAC address table | 16000 entries |
| Switching capacity | 336 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Performance | |
| Stackable | Yes |
| Auto-negotiation | Yes |
| Noise level | 55 dB |
| Mean time between failures (MTBF) | 296000 h |
| Internal memory | 2048 MB |
| Flash memory | 2000 MB |
| Technical details | |
| Form factor | 1U |
| Product colour | Stainless steel |
| Stackable | Yes |
| Noise level | 55 dB |
| Mean time between failures (MTBF) | 296000 h |
| Rack mounting | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| QSFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Security | |
| Authentication | MAC-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), Weighted Round Robin (WRR) |
| Authentication type | RADIUS |
| DHCP features | DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Memory | |
| Internal memory | 2048 MB |
| Flash memory | 2000 MB |
| Design | |
| Form factor | 1U |
| Product colour | Stainless steel |
| Stackable | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 89 W |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 920 W |
| Power over Ethernet (PoE) ports quantity | 48 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 303 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 350 mm |
| Height | 44 mm |
| Weight | 4.67 kg |
| Packaging data | |
| Rack mount kit | Yes |
| User guide | Yes |
| Cables included | AC |
| Packaging content | |
| Rack mount kit | Yes |
| User guide | Yes |
| Cables included | AC |
