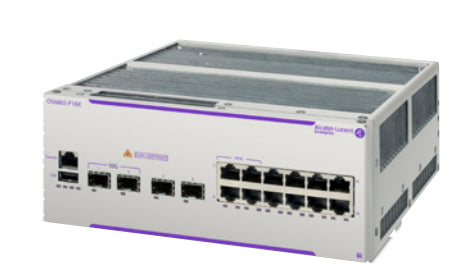

Alcatel-Lucent OmniSwitch 6865 Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey, White

12 x RJ-45, 2 x SFP, 2 x SFP+, 4 x PoE, 8 x PoE+, 10/100/1000, 1.7 kg, IEEE 802.1D/p/Q/ad/ak/aq/s/w, 802.3 i/x/z/ab/ac/ad/ae/afaz

Description

The Alcatel-Lucent OmniSwitch® 6865 series of switches are industrial grade, high-density, advanced Ethernet platforms designed for operating reliably in the harshest of environmental & severe temperature environments.

OS6865 switches are rugged, high bandwidth switches that are ideal for industrial and mission-critical applications that require wider operating temperature ranges, stringent EMC/EMI requirements and an optimized feature set for high
security, reliability, performance and easy management. These switches run on the widely deployed & field-proven AlcatelLucent Operating system offering SPB-M based VPNs and other advanced routing & switching capabilities.

The OS6865 series offers a unique mix of features to cater to the Hardened Ethernet applications such as IEEE 1588v2 PTP capabilities for timing requirements of industrial devices, HPoE (75W PoE) for those power hungry devices on the access network, SPB-M for fast, cost-efficient roll-out of VPN services on the edge and a comprehensive suite of security features
to secure the network edge. These switches are easy to deploy with our award winning Intelligent-Fabric technology which offers out-of-the-box plug-and-play, Zero-touch provisioning and network automation. The OS6865 family offers advanced system & network level resiliency features and convergence through standardized protocols.

These versatile industrial switches are ideal for deployment in transportation and traffic control systems, power
utilities, video surveillance systems and outdoor installations.

The OmniSwitch 6865 offers customers Gigabit fixed-configuration switches with up to 75 watts of PoE per port and power supply options that accommodate the most demanding requirements. The switch can be mounted on DIN rail, wall/panel or a 19-inch rack. It has built-in 10 Gigabit SFP+ ports that support 10 Gigabits and 1000-X, a USB port and a console port.

Specifications

Management features
Traffic shaping	Yes
ARP inspection	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L2/L3
Ports & interfaces
SFP module slots quantity	2
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	12
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Compatible memory cards	Not supported
Gigabit Ethernet (copper) ports quantity	2
USB 2.0 ports quantity	1
Console port	USB
Network
Active link detection	Yes
Auto-sensing	Yes
Networking standards	IEEE 802.11ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Number of VLANs	4000
Link aggregation	Yes
IP routing	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	Yes
Virtual LAN features	Stacked VLAN, Private VLAN, Protocol-based VLAN
IGMP snooping	Yes
Data transmission
Jumbo frames	9216
MAC address table	48000 entries
Switching capacity	68 Gbit/s
Jumbo frames support	Yes
Number of VLANs	4000
Security
Loop protection	Yes
BPDU filtering/protection	Yes
Authentication	MAC-based authentication
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP server
Multicast features
Multicast support	Yes
Design
Wall mountable	Yes
DIN rail mounting	Yes
Product colour	Grey, White
LED indicators	Yes
Rack mounting	Yes
Certification	UL 60950, IEC 60950-1, EN 60950-1, CAN/CSA-C22.2 No. 60950-1-03, NOM-019 SCFI, AS/NZ TS-001, 60950:2000, UL-AR, UL-GS, EN 60825-1, EN 60825-2, CDRH, FCC CRF Title 47 Subpart B (Class A), • VCCI (Class A), AS/NZS 3548 (Class A), CE marking for European countries (Class A)
Performance
Mean time between failures (MTBF)	1044414 h
Internal memory	2000 MB
Harmonized System (HS) code	85176990
Power
Power consumption (max)	34 W
Power consumption (typical)	32 W
Output power	180 W
Input voltage	20 - 60 V
Input current	3.75 - 11.25 A
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	320 W
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 74 °C
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3962.4 m
Heat dissipation	116 BTU/h
Virtual LAN features
VLAN support	Yes
Number of VLANs	4000
Virtual LAN features	Stacked VLAN, Private VLAN, Protocol-based VLAN
Weight & dimensions
Width	95 mm
Depth	181 mm
Height	51 mm
Weight	1.7 kg
Technical details
Product colour	Grey, White
Mean time between failures (MTBF)	1044414 h
Rack mounting	Yes
Memory
Internal memory	2000 MB
Certificates
Certification	UL 60950, IEC 60950-1, EN 60950-1, CAN/CSA-C22.2 No. 60950-1-03, NOM-019 SCFI, AS/NZ TS-001, 60950:2000, UL-AR, UL-GS, EN 60825-1, EN 60825-2, CDRH, FCC CRF Title 47 Subpart B (Class A), • VCCI (Class A), AS/NZS 3548 (Class A), CE marking for European countries (Class A)
Indication
LED indicators	Yes
Other features
Input voltage	20 - 60 V
Logistics data
Harmonized System (HS) code	85176990
