Allied Telesis | SKU:
AT-IE220-10GHX-80
8% off

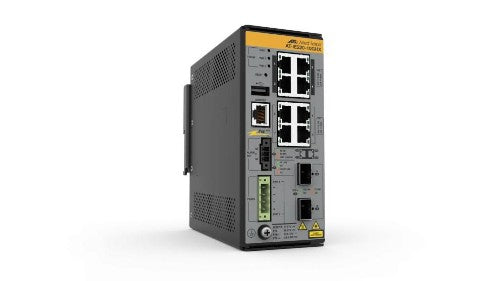

Allied Telesis IE220-10GHX Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
€1,098.11
€1,190.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Allied Telesis IE220-10GHX Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
8x 10/100/1000T, 2x 1G/10G SFP+, Industrial Ethernet, Layer 2+ Switch, PoE++ Support, DC
Ruggedized switches built for enduring performance in harsh environments. Power over Ethernet (PoE++) connects and powers environmental, system control, and other key IIoT devices for a reliable and high-performing solution and 10G fiber uplinks ensure capacity for demanding edge applications. The IE220 Series enables safety, security, and smooth operation for building automation, intelligent transportation, and smart city networks.
Description
Industrial Ethernet Layer 2+ PoE++ Switches with 10G uplinksRuggedized switches built for enduring performance in harsh environments. Power over Ethernet (PoE++) connects and powers environmental, system control, and other key IIoT devices for a reliable and high-performing solution and 10G fiber uplinks ensure capacity for demanding edge applications. The IE220 Series enables safety, security, and smooth operation for building automation, intelligent transportation, and smart city networks.
Specifications
| Management features | |
|---|---|
| Traffic shaping | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2 |
| Configuring Location Settings (CLI) | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 10 |
| USB 2.0 ports quantity | 1 |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.3bt |
| Full duplex | Yes |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Flow control support | Yes |
| 10G support | No |
| IGMP snooping | Yes |
| Data transmission | |
| Throughput | 41.7 Mpps |
| Packet buffer memory | 2 MB |
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Jumbo frames support | Yes |
| Number of VLANs | 4094 |
| Security | |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Security algorithms | 802.1x RADIUS |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMPv1/v2c/v3 |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Product colour | Grey |
| Housing material | Aluminium, Metal |
| Rack mounting | No |
| Performance | |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Export Control Classification Number (ECCN) | 5A992C |
| Packet buffer memory | 2 MB |
| Harmonized System (HS) code | 8517.62.0050 |
| Power | |
| Power consumption (max) | 18.5 W |
| Input voltage | 37 - 57 V |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 2 |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Weight & dimensions | |
| Width | 65 mm |
| Depth | 137 mm |
| Height | 155 mm |
| Technical details | |
| Product colour | Grey |
| Housing material | Aluminium, Metal |
| Rack mounting | No |
| Memory | |
| Packet buffer memory | 2 MB |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Other features | |
| Input voltage | 37 - 57 V |
| Logistics data | |
| Harmonized System (HS) code | 8517.62.0050 |
