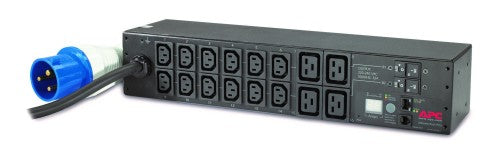

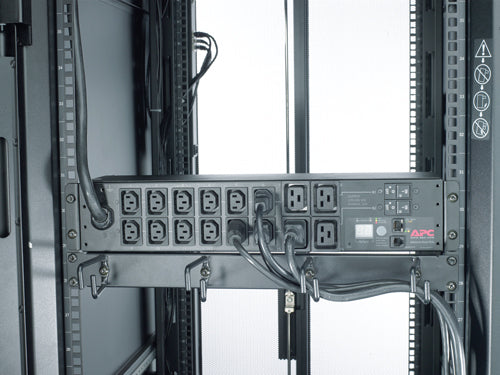

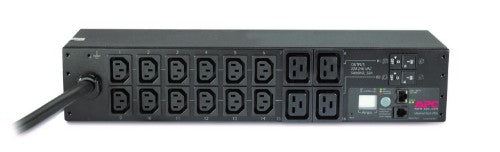

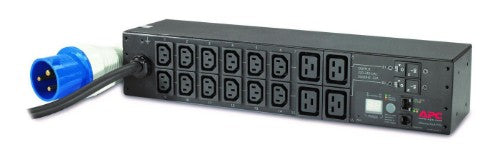

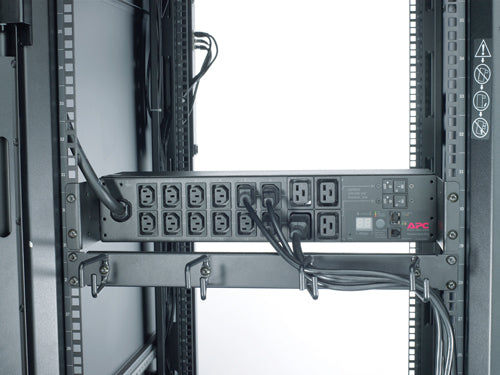

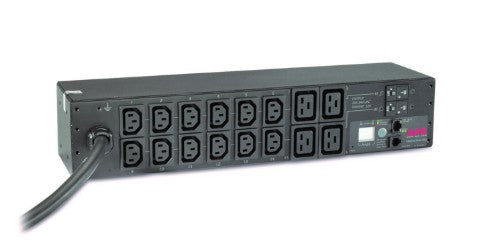

APC AP7822B power distribution unit (PDU) 16 AC outlet(s) 2U Black

APCSKU: AP7822B

Delivery: Fast Delivery products shipped within 2 working days from date of order.

Customs: No Hidden Charges Save yourself from any unwanted taxes or tarffis we sort all the paperwork leaving you with no hidden charges

Price:
Sale price€1,179.95

Tax included Shipping calculated at checkout

Description

Resettable circuit breakers
Enables a quick recovery from overload events.

Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)

Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)

Integrates with StruxureWare Data Center Expert
An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network

Local Current Monitoring Display
The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)

Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.,
Design
On/off switch Yes
Type Single-phase
PDU types Metered
Mounting Horizontal/Vertical
Product colour Black
Certification C-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI
Rack capacity 2U
Ports & interfaces
AC outlets quantity 16 AC outlet(s)
AC outlet types C13 coupler, C19 coupler
Power plug IEC309
Output connections 12 x C13 4 x C19
Input connection type IEC 309 32A 2P+E
Features
Cable length 3.66 m
LED indicators Yes
Certification C-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI
Management features
Monitoring Current, Power, Voltage
Ergonomics
Cable length 3.66 m
LED indicators Yes
Power
Maximum power 7680 W
Nominal input voltage 208-230 V
Power protection features Overload
Maximum current 32 A
Maximum total current draw per phase 32 A
Maximum input current per phase 32 A
Load capacity 7680 VA
AC input frequency 50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH) 444 x 112 x 88 mm
Weight 3.36 kg
Package weight 5.41 kg
Package dimensions (WxDxH) 508 x 368 x 140 mm
Packaging data
Package weight 5.41 kg
Package dimensions (WxDxH) 508 x 368 x 140 mm
Operational conditions
Operating temperature (T-T) -5 - 45 °C
Storage temperature (T-T) -25 - 65 °C
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 5 - 95%
Technical details
Sustainability certificates RoHS
