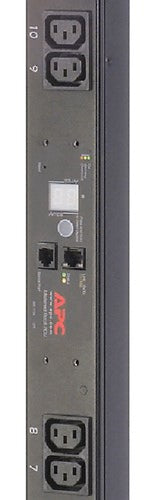

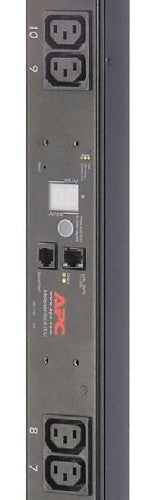

APC AP7850B power distribution unit (PDU) 16 AC outlet(s) 0U Black

200V, 208V, 230V, 47 - 63 Hz, IEC-320 C14, 3.05 m, 200-250VAC, 10A, 1245 x 56 x 44 mm, 3.07 kg

Description

Toolless Rack Mounting Capabilities

Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.

Vertical Mounting Capabilities

Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.

Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Single input power source

Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Rack-Mountable

Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Integrates with StruxureWare Data Center Expert

An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network

Load indicator LED

Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Flash Upgradeable

Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)

Remote Management Capabilities

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Alarm Thresholds

Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)

Local Current Monitoring Display

The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)

Specifications

Design
PDU types	Metered
Mounting	Vertical
Product colour	Black
Certification	CE, GOST, VDE
Rack capacity	0U
Ports & interfaces
AC outlets quantity	16 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
Features
Cable length	3.05 m
LED indicators	Yes
Certification	CE, GOST, VDE
Management features
Monitoring	Current, Power, Voltage
Ergonomics
Cable length	3.05 m
LED indicators	Yes
Power
Maximum power	2300 W
Nominal input voltage	200-250 V
Nominal output voltage	230 V
Maximum current	10 A
Maximum total current draw per phase	10 A
Maximum input current per phase	10 A
Load capacity	2300 VA
AC input frequency	47/63 Hz
Certificates
Certification	CE, GOST, VDE
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	23 - 113 °F
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Weight & dimensions
Weight	3.07 kg
Width	56 mm
Depth	44 mm
Height	1245 mm
Package width	387 mm
Package depth	323 mm
Package height	2134 mm
Package weight	3.98 kg
Packaging data
Package width	387 mm
Package depth	323 mm
Package height	2134 mm
Package weight	3.98 kg
Technical details
Compliance certificates	RoHS
