APC AP8881 power distribution unit (PDU) 42 AC outlet(s) 0U Black

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This 3 phase PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU via IEC 309 3P+N+PE plug with a 1.8m (16 ft) cord while power comes out at 230 volts through (36) C13 and (6) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.,

Design
PDU types	Metered
Mounting	Vertical
Product colour	Black
Certification	CSA C22.2 No. 60950,IEC 60950,UL 60950-1,VDE RoHS, REACH
Rack capacity	0U
Ports & interfaces
AC outlets quantity	42 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler

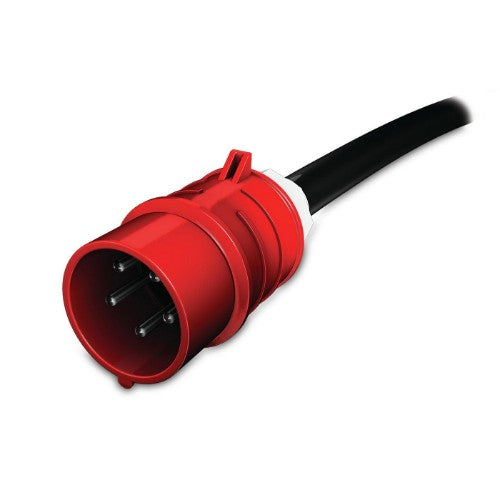

Power plug	IEC309
Output connections	36x IEC 320 C13 6x IEC 320 C19
Input connection type	IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E
Features
Cable length	1.83 m
Certification	CSA C22.2 No. 60950,IEC 60950,UL 60950-1,VDE RoHS, REACH
Management features
Monitoring	Current, Power, Voltage
Ergonomics
Cable length	1.83 m
Power
Maximum power	11000 W
Nominal input voltage	400 V
Nominal output voltage	230 V
Maximum current	16 A
Maximum total current draw per phase	16 A
Maximum input current per phase	16 A
Load capacity	11040 VA
AC input frequency	50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)	56 x 44 x 1791 mm
Weight	6.38 kg
Operational conditions
Operating temperature (T-T)	5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
