Description
Includes: Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable,
Design | |
---|---|
PDU types | Metered |
Mounting | Vertical |
Product colour | Black |
Certification | EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE REACH: No SVHCs |
Rack capacity | 0U |
Ports & interfaces | |
AC outlets quantity | 42 AC outlet(s) |
AC outlet types | C13 coupler, C19 coupler |

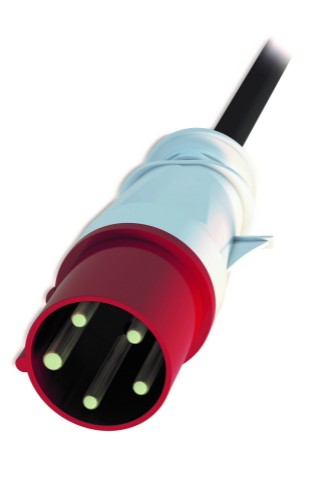

Power plug | IEC309 |
Output connections | 30 x IEC 320 C13 12 x IEC 320 C19 |
Features | |
Cable length | 1.83 m |
LED indicators | Yes |
Certification | EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE REACH: No SVHCs |
Management features | |
Monitoring | Current, Power, Voltage |
Ergonomics | |
Cable length | 1.83 m |
LED indicators | Yes |
Power | |
Maximum power | 22000 W |
Nominal input voltage | 400 V |
Nominal output voltage | 230 V |
Power protection features | Overload |
Maximum current | 32 A |
Maximum input current per phase | 32 A |
Load capacity | 22080 VA |
AC input frequency | 50 - 60 Hz |
Weight & dimensions | |
Dimensions (WxDxH) | 56 x 51 x 1829 mm |
Weight | 8.72 kg |
Package weight | 11.6 kg |
Package dimensions (WxDxH) | 170 x 112 x 2050 mm |
Packaging data | |
Package weight | 11.6 kg |
Package dimensions (WxDxH) | 170 x 112 x 2050 mm |
Operational conditions | |
Operating temperature (T-T) | 0 - 55 °C |
Storage temperature (T-T) | -25 - 65 °C |
Storage relative humidity (H-H) | 5 - 95% |
Operating relative humidity (H-H) | 5 - 95% |
Operating altitude | 0 - 3000 m |
Non-operating altitude | 0 - 15000 m |
Technical details | |
Sustainability certificates | RoHS |
