Description

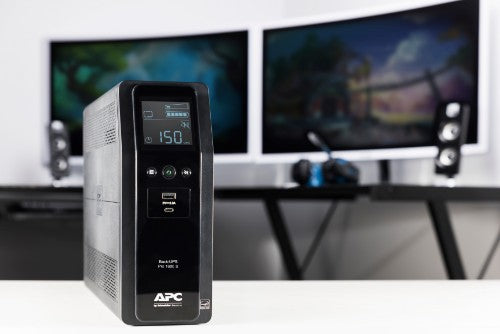

BR1600SI Features - Back UPS Pro BR 1600VA, Sinewave,8 Outlets, AVR, LCD interface - High Performance Computer and Electronics UPS for Premium Power Protection - Includes: USB cable, User Manual,
| Power | |
|---|---|
| Output power | 960 W |
| Input operation voltage (min) | 176 V |
| Input operation voltage (max) | 294 V |
| Output operation voltage (max) | 230 V |
| Surge energy rating | 509 J |
| Maximum current | 10 A |
| Output power capacity | 1.6 kVA |
| Performance | |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Power protection features | Overload |
| Noise level | 45 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Output power | 960 W |
| Input operation voltage (min) | 176 V |
| Input operation voltage (max) | 294 V |
| Output operation voltage (max) | 230 V |
| Surge energy rating | 509 J |
| Maximum current | 10 A |
| Power protection features | Overload |
| Noise level | 45 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 1.6 kVA |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| USB port | Yes |

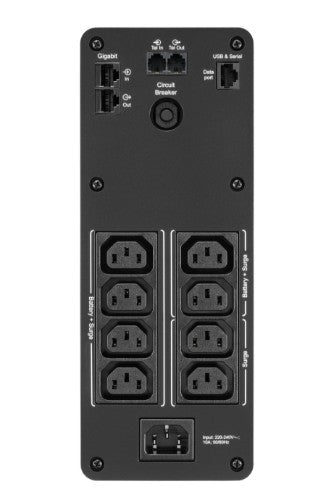

| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery | |
| Battery life (max) | 5 year(s) |
| Number of batteries supported | 1 |
| Battery capacity | 260 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 16 h |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Automatic battery test | Yes |
| Design | |
| Form factor | Mini Tower |
| Product colour | Black |
| Certification | A-tick, C-tick, CE, EAC, GS Mark, RCM, TISI, REACH |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 85078000 |
| Weight & dimensions | |
| Package width | 223 mm |
| Package depth | 482 mm |
| Package height | 359 mm |
| Weight | 12.1 kg |
| Width | 100 mm |
| Package weight | 13.8 kg |
| Height | 260 mm |
| Depth | 368 mm |
| Packaging data | |
| Package width | 223 mm |
| Package depth | 482 mm |
| Package height | 359 mm |
| Package weight | 13.8 kg |
| Certificates | |
| Certification | A-tick, C-tick, CE, EAC, GS Mark, RCM, TISI, REACH |
