Access monitoring Detect access by unauthorized personnel via door switch.
Transformer-block spaced outlets Protect equipment with input transformer blocks without blocking access to other receptacles.
Sleek design Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.
Cold-start capable Provides temporary battery power when the utility power is out.
Boost Automatic Voltage Regulation (AVR) Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Advanced Safety Features Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.
Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.
Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Battery backup and surge protection Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
Battery and surge protected outlets Back up and protect your hardware and data during power outages, surges and spikes.
LED Indicators Provide easy-to-read status of the unit and utility power conditions.
Audible alarms Provides notification of changing utility power and UPS power conditions,
| Power |
|---|
| Output voltage regulation |
10% |
| Output frequency regulation |
0.5 Hz |
| Input power factor |
0.51 |
| Output power |
360 W |
| Input operation voltage (min) |
170 V |
| Input operation voltage (max) |
280 V |
| Output operation voltage (min) |
230 V |
| Output operation voltage (max) |
230 V |
| Surge energy rating |
273 J |
| Output power capacity |
0.7 kVA |
| Performance |
|---|
| Audible alarm modes |
Alarm when on battery, Battery replacement, Low battery alarm, Overload alarm |
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Automatic Voltage Regulation (AVR) |
Yes |
| Response time |
6 ms |
| LED indicators |
Yes |
| Surge protection |
Yes |
| Noise level |
40 dB |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output frequency |
50/60 Hz |
| Audible alarm modes |
Alarm when on battery, Battery replacement, Low battery alarm, Overload alarm |
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Output voltage regulation |
10% |
| Output frequency regulation |
0.5 Hz |
| Automatic Voltage Regulation (AVR) |
Yes |
| Input power factor |
0.51 |
| Response time |
6 ms |
| Output power |
360 W |
| Input operation voltage (min) |
170 V |
| Input operation voltage (max) |
280 V |
| Output operation voltage (min) |
230 V |
| Output operation voltage (max) |
230 V |
| Surge energy rating |
273 J |
| Surge protection |
Yes |
| Noise level |
40 dB |
| Audible alarm(s) |
Yes |
| Output power capacity |
0.7 kVA |
| Input frequency |
50/60 Hz |
| Ports & interfaces |
|---|

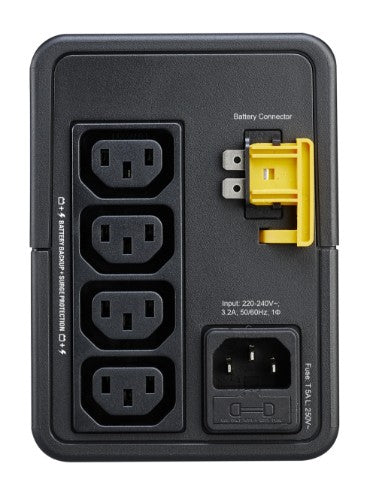

| AC outlets quantity |
4 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| Battery |
|---|
| Battery life (max) |
2 year(s) |
| Battery voltage |
12 V |
| Battery capacity |
7 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
8 h |
| Cold start |
Yes |
| Design |
|---|
| International Protection (IP) code |
IP20 |
| Form factor |
Compact |
| LED indicators |
Yes |
| Product colour |
Black |
| Certification |
CB, CE, EN/IEC 62040-1, EN/IEC 62040-2 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 40 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 3000 m |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Harmonized System (HS) code |
85078000 |
| Weight & dimensions |
|---|
| Package width |
222 mm |
| Package depth |
346 mm |
| Package height |
142 mm |
| Weight |
4.5 kg |
| Width |
31 mm |
| Package weight |
4.5 kg |
| Height |
98 mm |
| Depth |
138 mm |
| Packaging data |
|---|
| Cables included |
Input power cable |
| Manual |
Yes |
| Package width |
222 mm |
| Package depth |
346 mm |
| Package height |
142 mm |
| Package weight |
4.5 kg |
| Certificates |
|---|
| Certification |
CB, CE, EN/IEC 62040-1, EN/IEC 62040-2 |
| Packaging content |
|---|
| Cables included |
Input power cable |
| Manual |
Yes |
