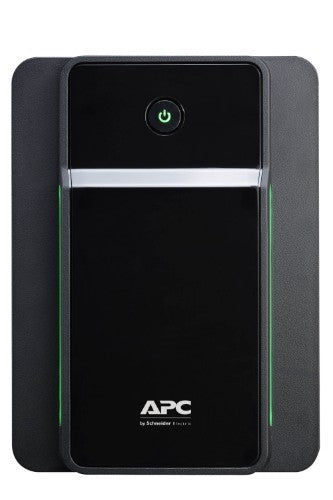

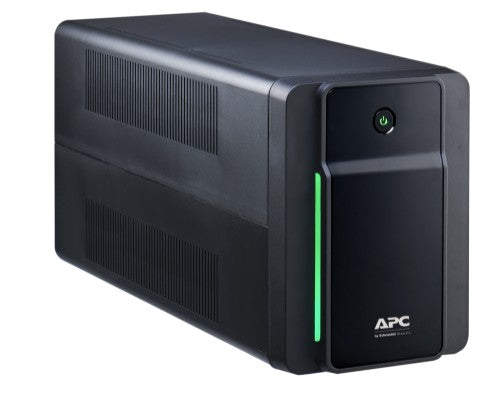

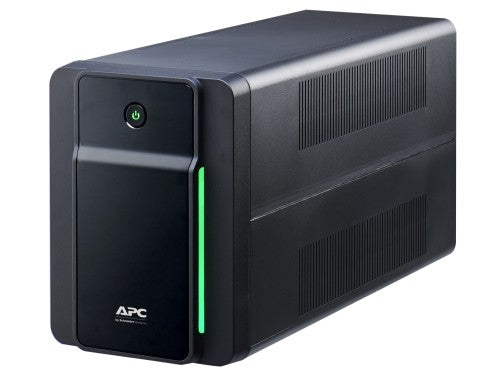

APC BX2200MI uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1200 W 6 AC outlet(s)

Automatic Voltage Regulation (AVR) Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment. Dataline surge protection Provides protection of connected equipment from power surges on the data lines. PowerChute Personal Edition OS Compatibility This software supports numerous operating systems and processors. USB connection Use your PC to access additional power protection and management features for your UPS via a USB Port. Audible alarms Provides notification of changing utility power and UPS power conditions LED status display Quickly understand unit and power status with visual indicators. Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging. Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced. Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance Surge only outlets Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage. Battery and surge protected outlets Back up and protect your hardware and data during power outages, surges and spikes. Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. Battery-protected and surge-only outlets Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment,

Power
Output voltage regulation	10%
Output frequency regulation	0.5 Hz
Input power factor	0.54
Output power	1200 W
Input operation voltage (min)	140 V
Input operation voltage (max)	300 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Surge energy rating	273 J
Output power capacity	2.2 kVA
Ports & interfaces
Cable length	1.2 m
USB port	Yes

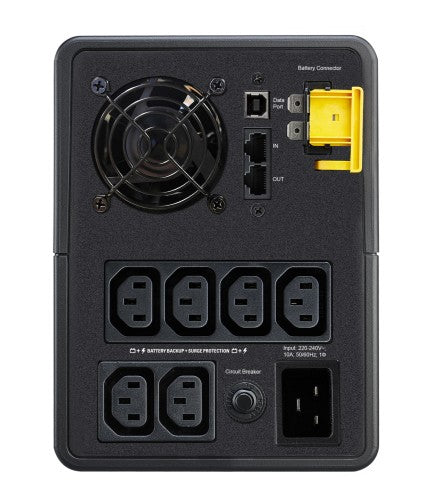

AC outlets quantity	6 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C19 coupler
USB 2.0 ports quantity	1
USB port type	USB Type-B
Performance
Audible alarm modes	Low battery alarm
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Response time	6 ms
LED indicators	Yes
Surge protection	Yes
Noise level	40 dB
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Audible alarm modes	Low battery alarm
UPS topology	Line-Interactive
Waveform	Sine
Output voltage regulation	10%
Output frequency regulation	0.5 Hz
Automatic Voltage Regulation (AVR)	Yes
Input power factor	0.54
Response time	6 ms
Output power	1200 W
Input operation voltage (min)	140 V
Input operation voltage (max)	300 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Surge energy rating	273 J
Surge protection	Yes
Noise level	40 dB
Audible alarm(s)	Yes
Output power capacity	2.2 kVA
Input frequency	50/60 Hz
Battery
Battery life (max)	2 year(s)
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h

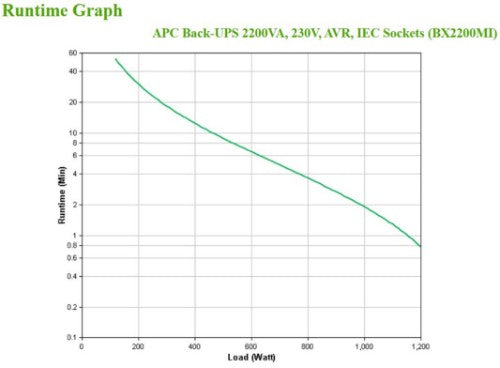

Typical backup time at half load	8.5 min
Typical backup time at full load	1 min
Design
International Protection (IP) code	IP20
Form factor	Compact
LED indicators	Yes
Product colour	Black
Certification	CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2
Cable length	1.2 m
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Technical details
Output frequency	50/60 Hz
Sustainability certificates	RoHS
Harmonized System (HS) code	85078000
Weight & dimensions
Package width	235 mm
Package depth	495 mm
Package height	297 mm
Weight	12.3 kg
Width	140 mm
Package weight	13.3 kg
Height	190 mm
Depth	390 mm
Packaging data
Cables included	Input power cable
Manual	Yes
Package width	235 mm
Package depth	495 mm
Package height	297 mm
Package weight	13.3 kg
Logistics data
Harmonized System (HS) code	85078000
Certificates
Certification	CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2
Packaging content
Cables included	Input power cable
Manual	Yes
