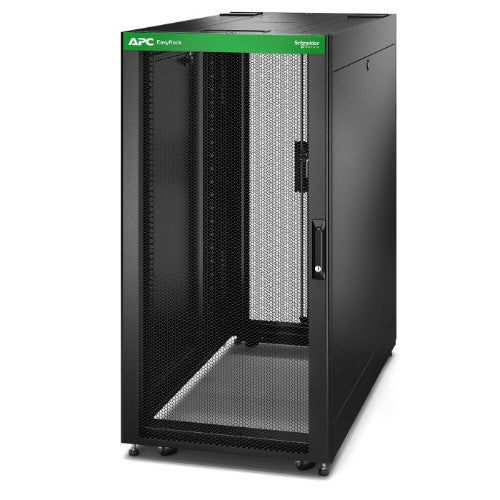

APC Easy Rack, 24U, Black, With Roof, Castors, Feet, 4 Brackets, and Side Panels, No Bottom, 1198H x 600W x 1000D mm

Easy Rack, 24U, Black, With Roof, Castors, Feet, 4 Brackets, and Side Panels, No Bottom, 1198H x 600W x 1000D mm

Description

Easy Rack ER6402 is EIA-310 standard pre-assembled IT enclosure with essential features for fast and easy deployment in low to medium density edge computing applications. ER6402 is perfect for remote server and converged applications with its 24U height to easily fit underneath counter tops or even into corner of a small rooms. This rack is developed in compact 600mm width & standard 1000mm deep to minimize floor space. This rack comes with Roof, keys, levelling feet, casters, side panels, mounting hardware, PDU mounting brackets and without bottom. With UL 2146 certification, this enclosure features integrated electrical grounding, ensuring the roof, front and rear doors are grounded to the frame. This rack cabinet ships fully assembled for faster installation or choose to ship unassembled for storage or transit in tight spaces and prefer to assemble onsite. ER6402 has quick release doors with spring pin design so that front doors are easily removed and can be moved to the opposite side or interchanged with rear doors. Solid roof of this rack prevents items from falling inside. Roof & rear door allow some cabling to pass through with tie-off points on frame for secured cable management. Easy Racks are easy to choose, install and accessorize with cooling, cable management & PDUs, including recently launched feature-rich, Easy Rack PDU series.

Specifications

Features
Size (imperial)	48.3 cm (19")
Key lock	Yes
Rack capacity	24U
Castor wheels	Yes
Maximum weight capacity (rolling)	599.65 kg
Front door construction	Double perforated
Adjustable feet	Yes
Back door key lock	Yes
Front door key lock	Yes
Side panel key lock	Yes
Type	Freestanding rack
Side panels included	Yes
Maximum weight capacity	1199.75 kg
Product colour	Black
Preassembled	Yes
Weight & dimensions
Package depth	650 mm
Package width	1050 mm
Package height	1330 mm
Package weight	77 kg
Mounting depth (max)	83.8 cm
Mounting depth (min)	19.1 cm
Width	600 mm
Depth	1000 mm
Height	1198 mm
Weight	71.4 kg
Size (imperial)	48.3 cm (19")
Maximum weight capacity	1199.75 kg
Packaging data
Package depth	650 mm
Package width	1050 mm
Package height	1330 mm
Package weight	77 kg
Technical details
Package width	1050 mm
Package height	1330 mm
Type	Freestanding rack
Size (imperial)	48.3 cm (19")
Side panels included	Yes
Harmonized System (HS) code	85381000
Total carbon footprint (kg of CO2e)	233.64
Rack capacity	24U
Colour
Product colour	Black
Packaging content
Side panels included	Yes
Logistics data
Harmonized System (HS) code	85381000
