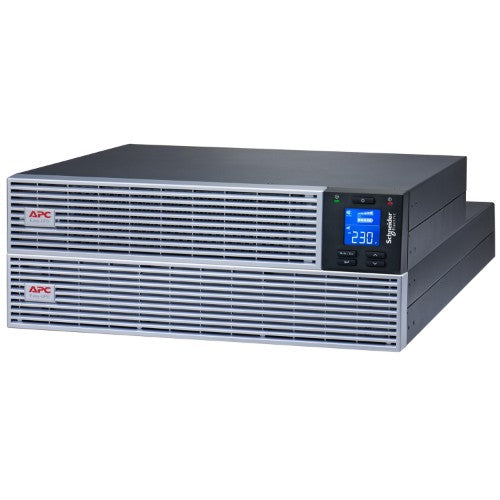

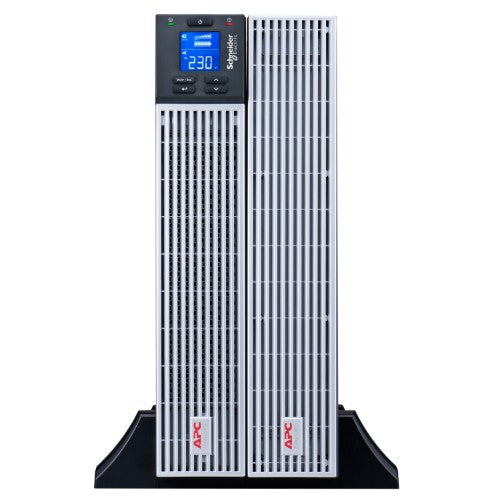

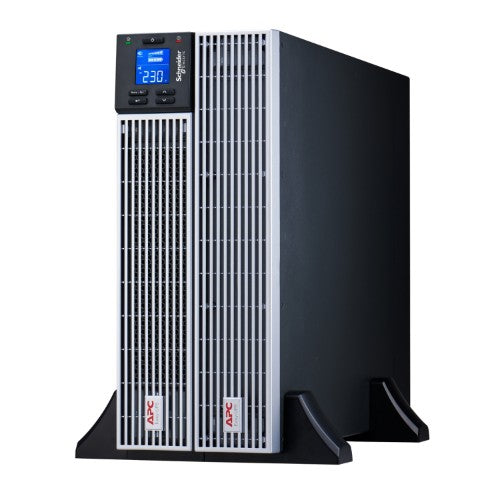

APC Easy UPS On-Line, 3kVA, Lithium-ion, Rack/Tower 4U, 230V, 6 IEC C13 + 1 IEC C19 outlets, Intelligent Card Slot, Extended runtime, W/ rail kit

Easy UPS On-Line, 3kVA, Lithium-ion, Rack/Tower 4U, 230V, 6 IEC C13 + 1 IEC C19 outlets, Intelligent Card Slot, Extended runtime, W/ rail kit

Description

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line 4U rackmount lithium-ion UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRVL comes with IEC320 C20 input, 6x IEC320 C13 and 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. With purchased Network Management Card and license, the UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The Emergency Power Off (EPO) function can remotely shut off the UPS in an emergency. It's ideal for Surveillance, Banking, POS, Healthcare IT, SMB, Micro Data Center and Server room. The UPS has a 3-year warranty and Lithium-Ion battery has a 5-year warranty. The SRVL comes with a easy-to-read 90 degree rotatable LCD display for detailed and accurate information on UPS status. This lithium-ion UPS is ideal for Micro data centers, Surveillance, Server rooms, POS, and Healthcare IT. Rack/ Tower convertible design with default accessory kit.

Specifications

Power
Output power	2700 W
Input operation voltage (min)	110 V
Input operation voltage (max)	300 V
Output operation voltage (max)	230 V
Surge energy rating	945 J
Efficiency	90%
Emergency Power Off (EPO)	Yes
Crest factor	3:1
Output power capacity	3 kVA
ECO mode	Yes
Performance
Audible alarm modes	Low battery alarm, Overload alarm
UPS topology	Double-conversion (Online)
Waveform	Sine
Noise level	50 dB
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Audible alarm modes	Low battery alarm, Overload alarm
UPS topology	Double-conversion (Online)
Waveform	Sine
Output power	2700 W
Input operation voltage (min)	110 V
Input operation voltage (max)	300 V
Output operation voltage (max)	230 V
Surge energy rating	945 J
Efficiency	90%
Emergency Power Off (EPO)	Yes
Noise level	50 dB
Crest factor	3:1
Audible alarm(s)	Yes
Output power capacity	3 kVA
ECO mode	Yes
Input frequency	40/70 Hz
Power source type	AC
Detachable power cord	Yes

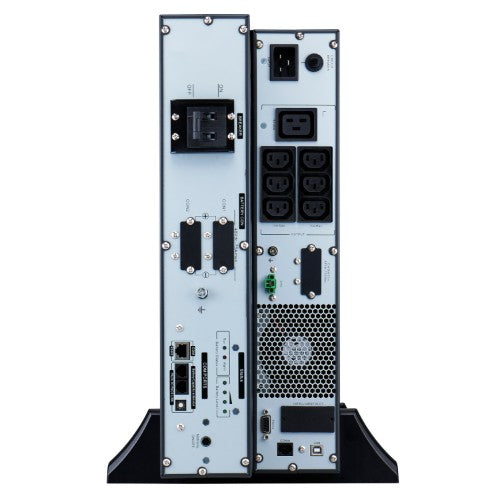

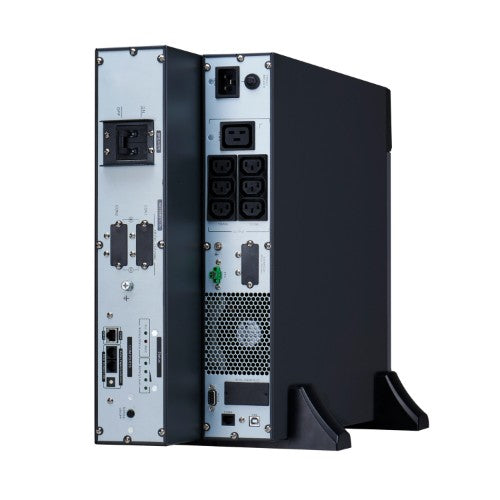

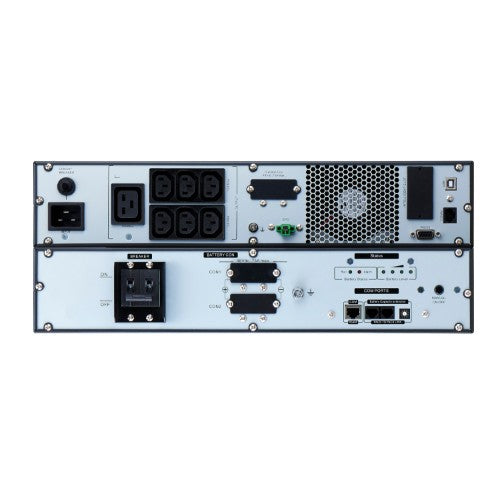

Ports & interfaces
USB port	Yes
SmartSlot	Yes
AC outlets quantity	7 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
RS-232 ports	1
Modem (RJ-11) ports	1
Ethernet LAN (RJ-45) ports	1
SmartConnect port	No
Battery
Battery life (max)	10 year(s)
Battery voltage	48 V
Battery technology	Lithium-Ion (Li-Ion)
Battery recharge time	4.8 h

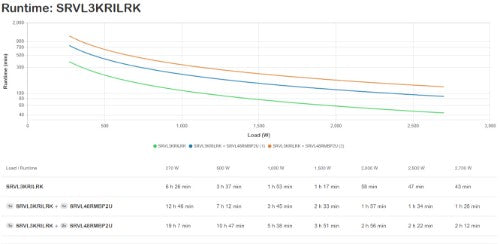

Typical backup time at half load	88 min
Typical backup time at full load	45 min
Design
International Protection (IP) code	IP20
Rack capacity	4U
Form factor	Rackmount/Tower
Product colour	Black
Cooling type	Active
Certification	CB , CE, EAC, IEC 62619, KC, RCM, TISI, UKCA, UN 38.3, RoHS
Built-in fan	Yes
Control type	Buttons
Display type	LCD
Operational conditions
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Non-operating altitude	0 - 15000 m
Technical details
Output frequency	50/60 Hz
Compliance certificates	CE, RoHS, UKCA
Certificates
Certification	CB , CE, EAC, IEC 62619, KC, RCM, TISI, UKCA, UN 38.3, RoHS
Compliance certificates	CE, RoHS, UKCA
Packaging content
Cables included	Phone (RJ-11), Power load cable, RJ-45, RS-232, USB cable
Rack mount kit	Yes
Manual	Yes
Management card included	No
Cooling
Cooling type	Active
Built-in fan	Yes
Weight & dimensions
Package width	800 mm
Package depth	600 mm
Package height	480 mm
Weight	38.3 kg
Width	438 mm
Package weight	50.6 kg
Height	172 mm
Depth	616 mm
Packaging data
Cables included	Phone (RJ-11), Power load cable, RJ-45, RS-232, USB cable
Rack mount kit	Yes
Manual	Yes
Package width	800 mm
Package depth	600 mm
Package height	480 mm
Package weight	50.6 kg
Management card included	No
