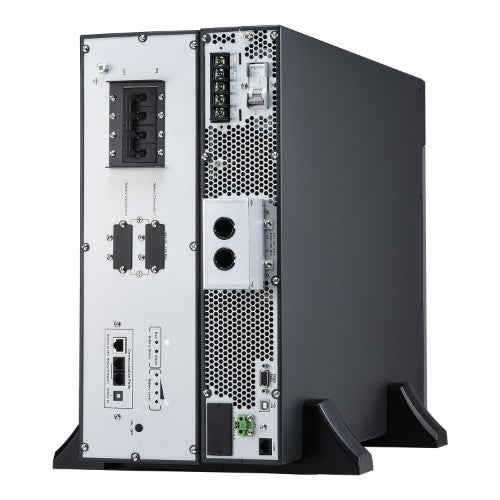

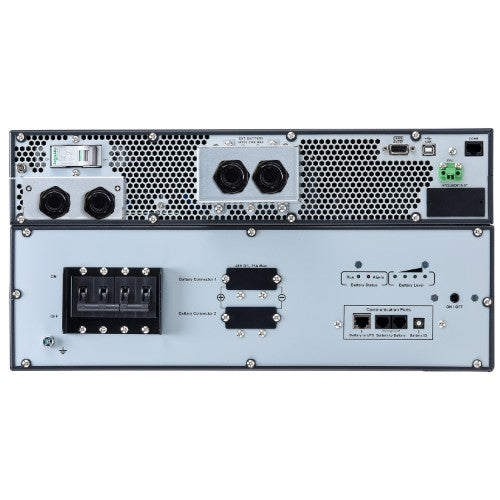

APC Easy UPS On-Line, 6kVA/6kW, Lithium-ion, Rack/Tower 5U, 230V, 1 Hard wire (1P+N+E) outlet, Intelligent Card Slot, Extended runtime, W/ rail kit

Easy UPS On-Line, 6kVA/6kW, Lithium-ion, Rack/Tower 5U, 230V, 1 Hard wire (1P+N+E) outlet, Intelligent Card Slot, Extended runtime, W/ rail kit

Key Features

• 6kVA/6kW double-conversion on-line pure sine wave 5U rackmount UPS
• Rack/Tower convertible (rail kit included)
• Add up to 3 external battery packs (SRVL48RMBP3U) for extended runtime
• Lithium-ion battery minimizes the need to replace battery during UPS lifetime
• Graceful shutdown of servers and workstations
• Optional Network Management Card AP9544 supports network-based monitoring and management of Easy UPS Online Lithium-ion.
• Emergency Power Off (EPO) funtion can remote UPS shutoff in the event of a fire or other emergency.

Reasons To Buy

Intelligent Card Slot

Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.

Lithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light and environmentally friendly.

Use your PC to access additional power protection and management features for your UPS via a serial port.

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.

Full color text and mimic diagrams that easily display modes of operation, systems parameters and alarms.

Multiple battery pack configuration 3

Connect up to 3 battery packs for extended runtime applications.

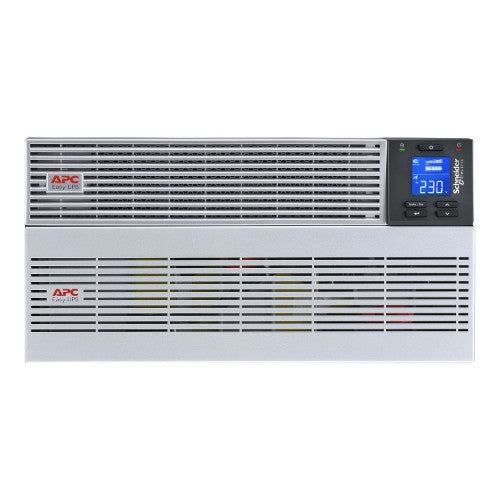

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

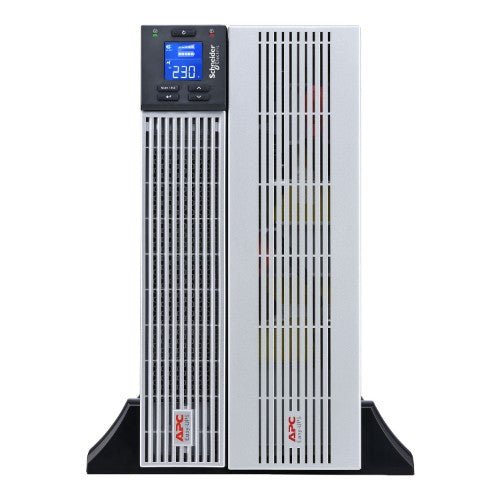

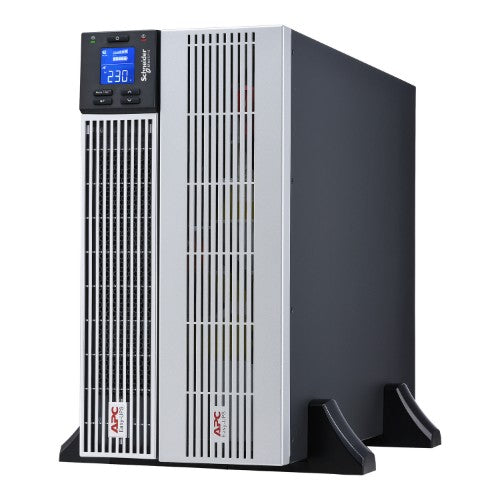

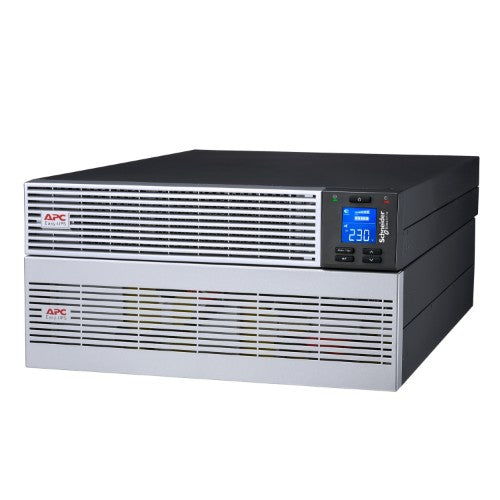

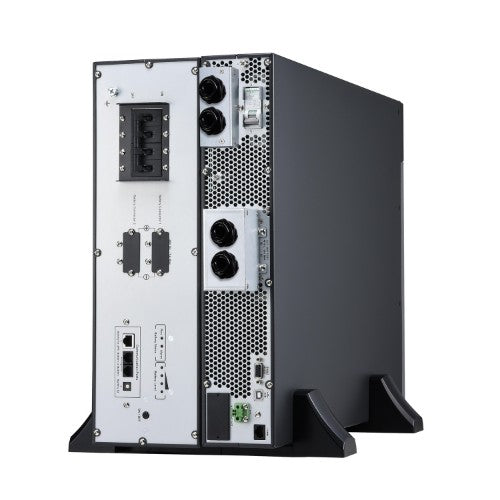

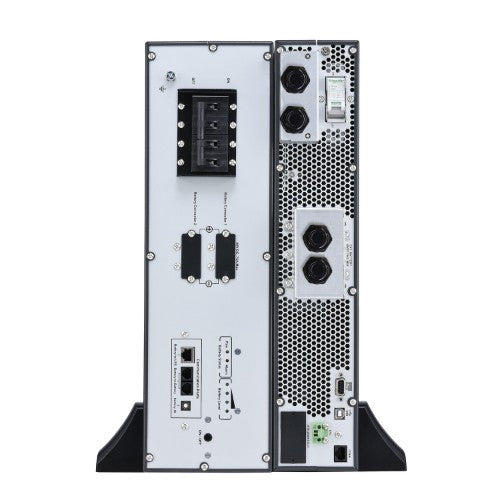

Rack/Tower convertible

Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Serial connectivity

Provides management of the UPS via a serial port.

Provides management of the UPS via a USB port (not available on all models).

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Description

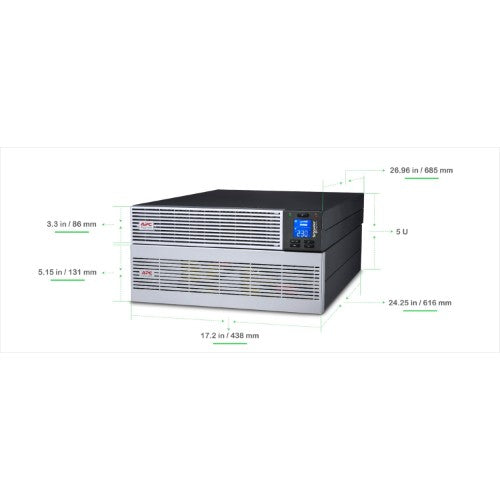

Single Phase True Double-conversion On-Line UPS Lithium-Ion battery has a lifetime of eight to ten years which offers reliable support and extends the useful life of your UPS. 230V 6000VA Extendeded runtime model with rail kit Longer runtime and faster recharge time compared to VRLA generation. More real output power in watts 0.9 PF Up to 93.5% efficiency in on-line double conversion mode and up to 97% in ECO mode saves utility and cooling costs without compromising performance or reliability. Its dimensions are 438mm (width) x 686.4mm (depth) x 133mm (height) 5U in total which includes 2U Power module and 3U external battery pack. The net weighs is 69.7kg. Up to 3 external lithium-ion battery packs support at maximum. It's ideal for Micro Data Center and Server room, Industrial Automation , Equipment Manufacturing. CB, CE, UN38.3 External Battery Pack, Managemnt Card (Network Management card, Dry contact card, modbus Card) options are available. Rack/ Tower convertible design with default accessory kit.

Specifications

Power
Output power	6000 W
Input operation voltage (min)	120 V
Input operation voltage (max)	300 V
Output operation voltage (min)	230 V
Surge energy rating	600 J
Efficiency	93.5%
Emergency Power Off (EPO)	Yes
Crest factor	3:1
Output power capacity	6 kVA
Single-phase input voltage supported	230 V
Performance
Audible alarm modes	Alarm when on battery, Overload alarm
UPS topology	Double-conversion (Online)
Waveform	Sine
Number of output phases	1
Number of input phases	1
Noise level	57.3 dB
Features
Output frequency	50/60 Hz
Country of origin	China
Audible alarm modes	Alarm when on battery, Overload alarm
UPS topology	Double-conversion (Online)
Waveform	Sine
Number of output phases	1
Number of input phases	1
Output power	6000 W
Input operation voltage (min)	120 V
Input operation voltage (max)	300 V
Output operation voltage (min)	230 V
Surge energy rating	600 J
Efficiency	93.5%
Emergency Power Off (EPO)	Yes
Noise level	57.3 dB
Crest factor	3:1
Output power capacity	6 kVA
Single-phase input voltage supported	230 V
Input frequency	40/70 Hz
Ports & interfaces
USB port	Yes
Battery
Battery life (max)	10 year(s)
Battery voltage	48 V
Battery technology	Lithium-Ion (Li-Ion)
Battery recharge time	5 h
Design
Country of origin	China
International Protection (IP) code	IP20
Rack capacity	5U
Form factor	Rackmount/Tower
Product colour	Black, Silver
Certification	CB; CE; UKCA; RCM; IRAM; TISI; UN 38.3; IEC 62619
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Output voltage	230 V
Output frequency	50/60 Hz
Mounting	horizontal and vertical
Total carbon footprint (kg of CO2e)	789.2474559231015
Compliance certificates	RoHS, REACH, WEEE
Certificates
Certification	CB; CE; UKCA; RCM; IRAM; TISI; UN 38.3; IEC 62619
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Compliance certificates	RoHS, REACH, WEEE
Packaging content
Cables included	Phone (RJ-11), RJ-45, RS-232, USB cable
Manual	Yes
Certification
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Weight & dimensions
Package width	600 mm
Package depth	800 mm
Package height	652 mm
Weight	69.2 kg
Width	438 mm
Package weight	8.59 kg
Height	217 mm
Depth	685 mm
Packaging data
Cables included	Phone (RJ-11), RJ-45, RS-232, USB cable
Manual	Yes
Package width	600 mm
Package depth	800 mm
Package height	652 mm
Package weight	8.59 kg
Logistics data
Country of origin	China
Customs product code (TARIC)	8504409590
Total carbon footprint (kg of CO2e)	789.2474559231015
Other features
Output voltage	230 V
Mounting	horizontal and vertical

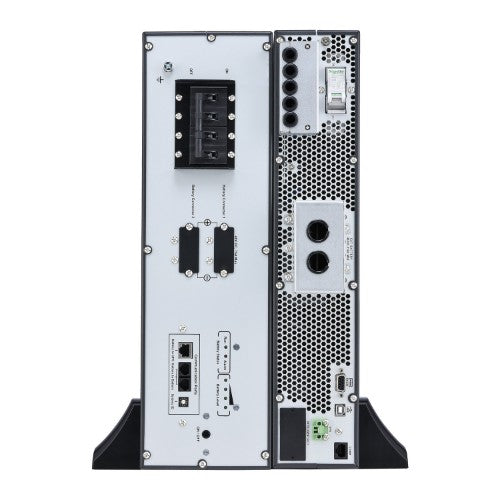

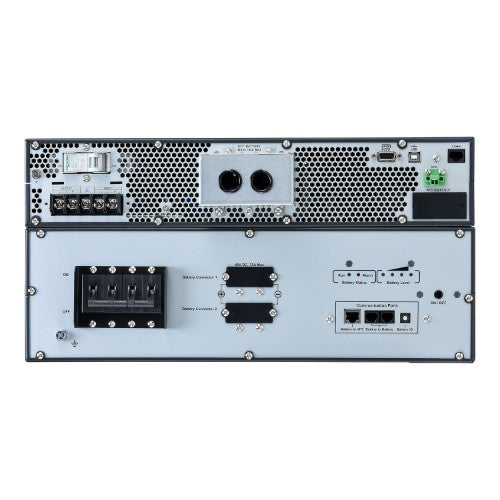

Output connection type	hard wire 3-wire (1P + N + E) for 1 zone(s)
