APC NetShelter Rack PDU Advanced Gen 2, Metered, 3Phase, 22.1kW 400V 32A or 17.3kW 415V 30A, 530P6, 48 Outlet

NetShelter Rack PDU Advanced Gen 2, Metered, 3Phase, 22.1kW 400V 32A or 17.3kW 415V 30A, 530P6, 48 Outlet

Key Features

• Ideal for AI and other high density applications
• 4-in-1 combination outlet design acts as C13, C15, C19, and C21 in one outlet
• Live Swap Network Management Card 3

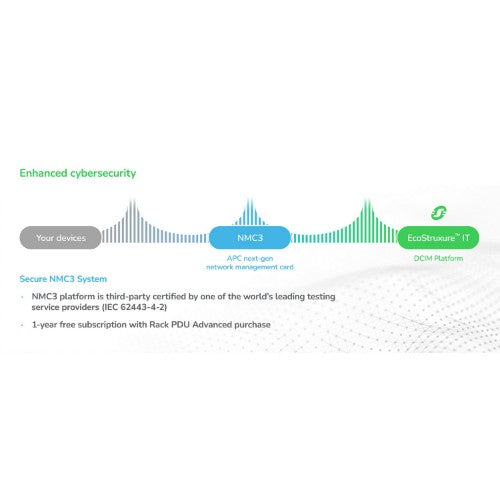

• Enhanced cybersecurity and EcoStruxureTM IT compatible
• 1 year free subscription to Secure NMC3 System

Description

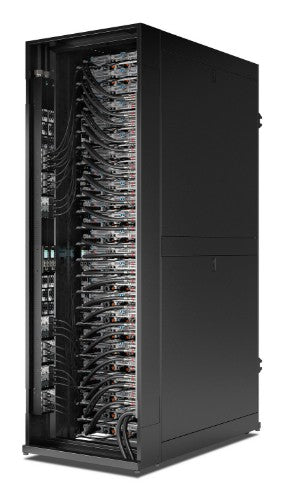

APC NetShelter Rack PDU Advanced (11K Series) provides reliable power distribution to IT equipment within server and/or networking racks. PDU level power metering provides power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 48 outlets in a 2.2 in. (5.6 cm) wide form factor allows for more equipment in the rack. Outlets on the PDUs are color coded and labeled by breaker. Live Swap the NMC3 to minimize downtime in the unlikely event of an NMC power event. The rack PDU integrates with EcoStruxure IT through an NMC3 and can be accessed and configured via web, SNMP, and command line interface (CLI). A 10-foot (3-meter) input cord makes it easier for the PDU to reach the power supply. Rated to operate up to 60 C (140 F) at full load ensures reliability and availability even in today's high-density deployments. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to up to 32 PDUs, with a network port sharing (NPS) feature to enable power sharing between Rack PDUs in the cascading group. Track or bill power usage confidently with 1% metering accuracy. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs have the following certifications: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM. This model’s input power cord is IEC-309 32 A 3P+N+PE and features 24 count C13/C15/C19/C21 combo outlets and 24 count C13/C15 outlets.

Specifications

Design
Type	Three-phase
PDU types	Metered
Product colour	Black
Certification	UL 62368-1 CSA C22.2 No 62368-1 FCC part 15 Subpart B CE EN 62368-1
Rack capacity	0U

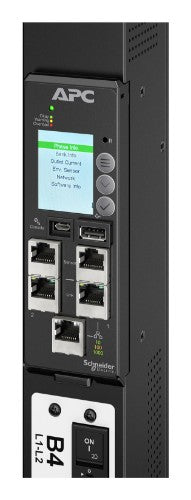

Ports & interfaces
USB ports quantity	1
AC outlets quantity	48 AC outlet(s)
AC outlet types	C13 coupler, C15 coupler, C19 coupler, C21 coupler
Ethernet LAN (RJ-45) ports	5
Features
Cable length	3 m
Certification	UL 62368-1 CSA C22.2 No 62368-1 FCC part 15 Subpart B CE EN 62368-1
Management features
Management platform	NMC3
Ergonomics
Cable length	3 m
Power
Nominal input voltage	400 V
Nominal output voltage	400 V
Maximum current	30 A
Load capacity	17300 VA
AC input frequency	50/60 Hz
Number of phases	3
Certificates
Certification	UL 62368-1 CSA C22.2 No 62368-1 FCC part 15 Subpart B CE EN 62368-1
Compliance certificates	RoHS
Weight & dimensions
Weight	11.7 kg
Width	56 mm
Depth	75 mm
Height	1826 mm
Package width	132 mm
Package depth	262 mm
Package height	1980 mm
Package weight	11.4 kg
Packaging data
Package width	132 mm
Package depth	262 mm
Package height	1980 mm
Package weight	11.4 kg
Technical details
Compliance certificates	RoHS
