APC | SKU:
AP9547
15% off

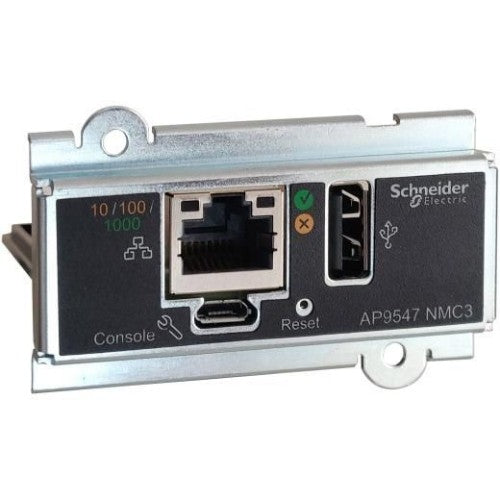

APC Network Management Card, Network Management Cards, for Easy UPS 3 Series, 3-Phase, remotely monitor and manage the UPS
€293.46
€344.52
Unit price
/
Unavailable
Shipping calculated at checkout.
APC Network Management Card, Network Management Cards, for Easy UPS 3 Series, 3-Phase, remotely monitor and manage the UPS is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Network Management Card, Network Management Cards, for Easy UPS 3 Series, 3-Phase, remotely monitor and manage the UPS
Description
The Network Management Card for Easy UPS 3 Series enables secure remote monitoring and control of one Easy UPS 3S, Easy UPS 3M or Easy UPS 3L through the easy-to-use web browser interface, via EcoStruxure™ IT Software or another SNMP-enabled system. The high-speed processor provides a fast and powerful experience offering gigabit ethernet connectivity and simultaneous multiple user logins. Best-in-class security compliance keeps sensitive data secure. The Network Management Card includes a 1-year Secure NMC Subscription which provides automatic access to new features, enhancements, and advanced support to ensure the most resilient, secure and sustainable IT infrastructure.Specifications
| Features | |
|---|---|
| Product type | Network management card |
| Product colour | Black, Metallic |
| MIB support | PowerNet MIB |
| Compatibility | Easy UPS 3 Series |
| Easy to use | Yes |
| Certification | AS/NZS, CISPR 32, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN/IEC 62040-2, FCC Class A, ICES-003, VCCI class A |
| Performance | |
| Web-based management | Yes |
| Management protocols | BACnet |
| Password protection | Yes |
| Syslog | Yes |
| Reset button | Yes |
| Ports & interfaces | |
| Interface type | RJ-45 |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000 |
| Security algorithms | HTTPS, SNMP, SNMPv3, SSH |
| Power | |
| Number of phases | 3 |
| Sustainability | |
| Sustainability compliance | Yes |
| Certificates | |
| Certification | AS/NZS, CISPR 32, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN/IEC 62040-2, FCC Class A, ICES-003, VCCI class A |
| Compliance certificates | Federal Communications Commission (FCC), ICES, RoHS, VCCI |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -15 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Weight & dimensions | |
| Width | 52 mm |
| Depth | 80 mm |
| Height | 44 mm |
| Weight | 50 g |
| Package width | 170 mm |
| Package depth | 240 mm |
| Package height | 50 mm |
| Package weight | 300 g |
| Packaging content | |
| Cables included | USB |
| Manual | Yes |
| Packaging data | |
| Package width | 170 mm |
| Package depth | 240 mm |
| Package height | 50 mm |
| Package weight | 300 g |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000 |
| Security algorithms | HTTPS, SNMP, SNMPv3, SSH |
| Management features | |
| Web-based management | Yes |
| Management protocols | BACnet |
| Password protection | Yes |
| Syslog | Yes |
| Reset button | Yes |
| Technical details | |
| Sustainability compliance | Yes |
| Total carbon footprint (kg of CO2e) | 69.41 |
| Compliance certificates | Federal Communications Commission (FCC), ICES, RoHS, VCCI |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 69.41 |
