APC | SKU:
AP8653

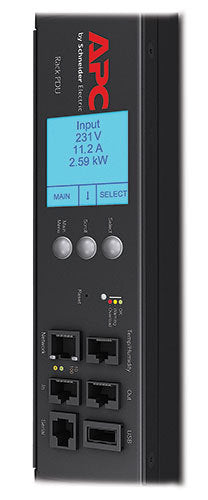

APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19
€1,643.43
Unit price
/
Unavailable
Shipping calculated at checkout.
APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19
Description
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change ManagerSpecifications
| Design | |
|---|---|
| Type | Single-phase |
| PDU types | Metered, Metered-by-outlet, Switched |
| Mounting | Vertical |
| Product colour | Black |
| Certification | EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE |
| Rack capacity | 0U |
| Ports & interfaces | |
| AC outlets quantity | 24 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |

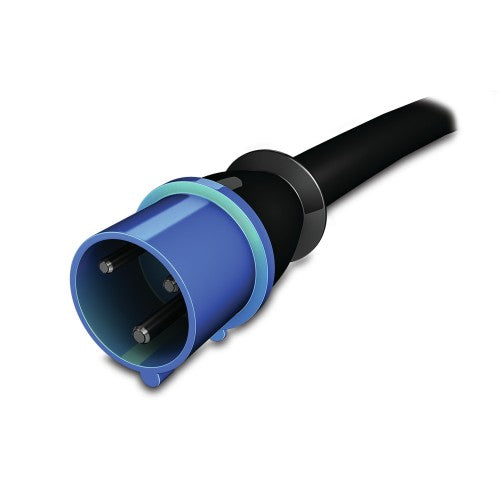

| Power plug | IEC309 |
| Features | |
| Cable length | 3 m |
| Certification | EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE |
| Management features | |
| Monitoring | Current, Power, Voltage |
| Outlet control | Lock-out, Recycle, Turn off, Turn on |
| Ergonomics | |
| Cable length | 3 m |
| Power | |
| Maximum power | 7680 W |
| Nominal input voltage | 230 V |
| Nominal output voltage | 230 V |
| Power protection features | Overload |
| Maximum current | 32 A |
| Maximum total current draw per phase | 32 A |
| Maximum input current per phase | 32 A |
| Load capacity | 7680 VA |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Weight | 8.23 kg |
| Width | 56 mm |
| Depth | 51 mm |
| Height | 1829 mm |
| Package width | 162 mm |
| Package depth | 118 mm |
| Package height | 2038 mm |
| Package weight | 10.5 kg |
| Packaging data | |
| Package width | 162 mm |
| Package depth | 118 mm |
| Package height | 2038 mm |
| Package weight | 10.5 kg |
| Technical details | |
| Total carbon footprint (kg of CO2e) | 8595.81 |
| Compliance certificates | RoHS |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 8595.81 |
