APC | SKU:
AP9563
6% off

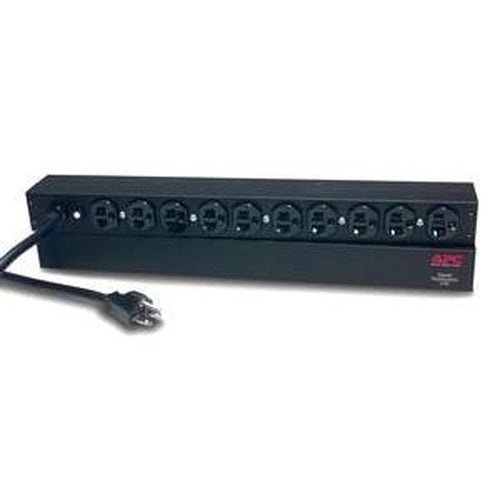

APC Rack PDU, Basic, 1U, 20A, 120V power distribution unit (PDU) Black
€229.53
€243.73
Unit price
/
Unavailable
Shipping calculated at checkout.
APC Rack PDU, Basic, 1U, 20A, 120V power distribution unit (PDU) Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Basic Rack PDU , Input: 120V , Input Connections: NEMA 5-20P , Cord Length: 12 feet ( 3.66 meters ) , Output: 120V , Output Connections: NEMA 5-20R
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Description
Rack-MountableIncludes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Certification | cUL Recognized,CSA,UL 1363,UL Recognized, RoHS |
| Ports & interfaces | |
| Output connections | 10x NEMA 5-20R |
| Input connection type | NEMA 5-20P |
| Features | |
| Cable length | 3.66 m |
| Certification | cUL Recognized,CSA,UL 1363,UL Recognized, RoHS |
| Ergonomics | |
| Cable length | 3.66 m |
| Power | |
| Nominal input voltage | 120 V |
| Nominal output voltage | 120 V |
| Maximum total current draw per phase | 20 A |
| Maximum input current per phase | 20 A |
| Load capacity | 2400 VA |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | cUL Recognized,CSA,UL 1363,UL Recognized, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Weight & dimensions | |
| Weight | 2.5 kg |
| Width | 447 mm |
| Depth | 57 mm |
| Height | 44 mm |
