APC Smart-UPS uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 1000 W 4 AC outlet(s)

Smart-UPS - 1000W/1500VA, 230V, 2U, RJ45, USB, black

Description

Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Audible alarms
Provide notification of changing flywheel conditions

InfraStruXure Central compatible
Enables centralized management via APC InfraStruXure® Central.

SmartSlot
Customize UPS capabilities with management cards.

Cold-start capable
Provides temporary battery power when the utility power is out.

Serial Connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.

Resettable circuit breakers
Enables a quick recovery from overload events.

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.

Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Audible alarms
Provides notification of changing utility power and UPS conditions.

User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

USB connectivity
Provides management of the UPS via a USB port (not available on all models).

Serial Connectivity
Provides management of the UPS via a serial port.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery.

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.

Network manageable
Provides remote management of the UPS over the network.

Adjustable voltage sensitivity
Provides the ability to adapt the Power Conditioner for optimal performance in specific power environments or generator applications.

Predicitive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.

Specifications

Power
Output power	1000 W
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	459 J
Efficiency	98.6%
Emergency Power Off (EPO)	O
Output power capacity	1.5 kVA
Performance
Hold time (max)	2 ms
UPS topology	Line-Interactive
Waveform	Sine
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
LED indicators	Status
Surge protection	Yes
Noise level	46 dB
Audible alarm(s)	Yes
Features
Hold time (max)	2 ms
UPS topology	Line-Interactive
Waveform	Sine
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Output power	1000 W
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	459 J
Efficiency	98.6%
Surge protection	Yes
Emergency Power Off (EPO)	O
Noise level	46 dB
Audible alarm(s)	Yes
Output power capacity	1.5 kVA
Input frequency	50/60 Hz
Ports & interfaces
USB port	Yes
Serial interface	Yes
Serial interface type	RJ-45
SmartSlot	Yes
AC outlets quantity	4 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
Number of output IEC jumpers	2
Battery
Battery life (max)	6 year(s)
Battery capacity	432 VAh
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	3 h

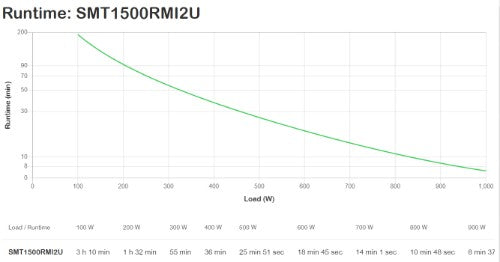

Typical backup time at half load	25.8 min
Typical backup time at full load	7.2 min
Hot-swap battery	Yes
Cold start	Yes
Automatic battery test	Yes
Design
Rack capacity	2U
Form factor	Rackmount
LED indicators	Status
Product colour	Black
Certification	CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, TUV, VDE, REACH, PEP, EOLI
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Sustainability certificates	ENERGY STAR, Green Premium
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	1410.94
Compliance certificates	RoHS
Weight & dimensions
Package width	594 mm
Package depth	603 mm
Package height	251 mm
Weight	28.6 kg
Width	432 mm
Package weight	31.9 kg
Height	86 mm
Depth	457 mm
Packaging data
Quick installation guide	Yes
Cables included	RS-232, USB cable
Rack mount kit	Yes
Software CD	Yes
Package width	594 mm
Package depth	603 mm
Package height	251 mm
Package weight	31.9 kg
Logistics data
Products per pallet	8 pc(s)
Harmonized System (HS) code	85078000
Certificates
Certification	CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, TUV, VDE, REACH, PEP, EOLI
Other features
Nominal output voltage	230 V
Nominal input voltage	230 V
Packaging content
Quick installation guide	Yes
Cables included	RS-232, USB cable
Rack mount kit	Yes
Software CD	Yes
