Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. Includes: CD with software, Documentation CD, Installation guide, Rack Mounting support rails, USB cable Cold-start capable Provides temporary battery power when the utility power is out. Energy meter Provides actual kilowatt hours of usage for energy conscious users. Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. High online efficiency Reduces utility costs, generates less heat. Intuitive LCD interface Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys. Predictive replace battery date Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. Pure sine wave output on battery Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. Single switched outlet group Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. SmartConnect Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services. SmartSlot Customize UPS capabilities with management cards. Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature. Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. Adjustable voltage-transfer points Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation. Adjustable voltage sensitivity Provides the ability to adapt the UPS for optimal performance in specific power environments or generat Resettable circuit breakers Enables a quick recovery from overload events. Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR) Predictive failure notification. Provides early-warning fault analysis ensuring proactive component replacement. Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced,
| Power |
|---|
| Output power |
500 W |
| Input operation voltage (min) |
151 V |
| Input operation voltage (max) |
302 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
459 J |
| Efficiency |
97.7% |
| Output power capacity |
0.75 kVA |
| Performance |
|---|
| Hold time (max) |
2 ms |
| UPS topology |
Line-Interactive |
| Waveform |
Pure sine |
| Auto-restart |
Yes |
| Automatic Voltage Regulation (AVR) |
Yes |
| LED indicators |
Battery replacement |
| Surge protection |
Yes |
| Noise level |
42 dB |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Hold time (max) |
2 ms |
| UPS topology |
Line-Interactive |
| Waveform |
Pure sine |
| Auto-restart |
Yes |
| Automatic Voltage Regulation (AVR) |
Yes |
| Output power |
500 W |
| Input operation voltage (min) |
151 V |
| Input operation voltage (max) |
302 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
459 J |
| Efficiency |
97.7% |
| Surge protection |
Yes |
| Noise level |
42 dB |
| Audible alarm(s) |
Yes |
| Output power capacity |
0.75 kVA |
| Input frequency |
50/60 Hz |
| Ports & interfaces |
|---|

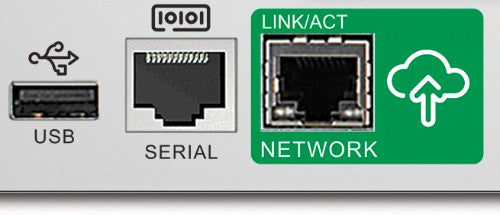

| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RJ-45 |
| SmartSlot |
Yes |

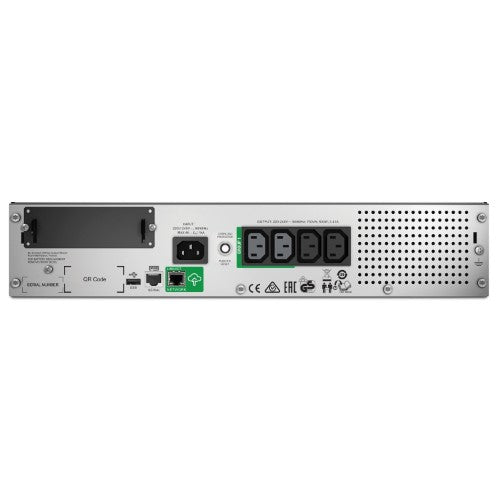

| AC outlets quantity |
4 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| Number of output IEC jumpers |
2 |
| Battery |
|---|
| Battery life (max) |
5 year(s) |
| Battery capacity |
168 VAh |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
3 h |

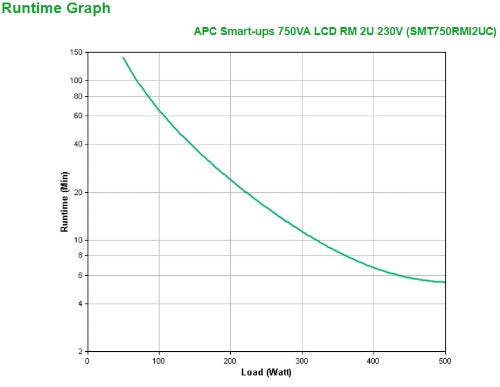

| Typical backup time at half load |
16 min |
| Typical backup time at full load |
5.5 min |
| Hot-swap battery |
Yes |
| Cold start |
Yes |
| Automatic battery test |
Yes |
| Design |
|---|

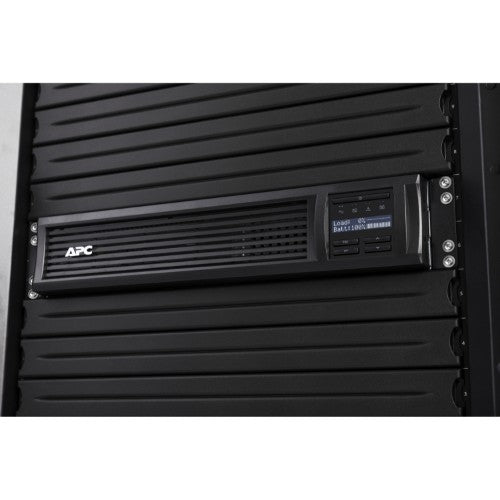

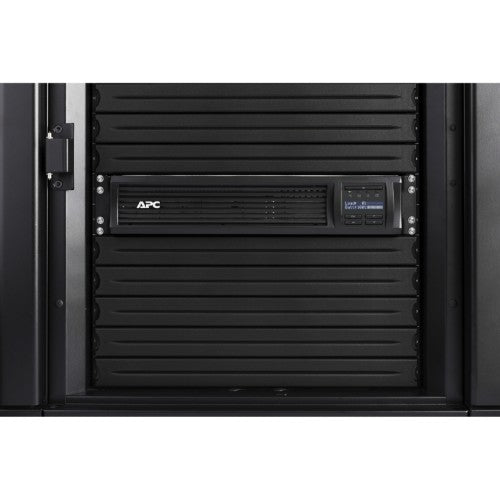

| Rack capacity |
2U |
| Form factor |
Rackmount |
| LED indicators |
Battery replacement |
| Product colour |
Black |
| Certification |
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, TUV, UL 1778, VDE, REACH, PEP, EOLI |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Technical details |
|---|
| Sustainability certificates |
Green Premium, RoHS |
| Harmonized System (HS) code |
85078000 |
| Weight & dimensions |
|---|
| Package width |
546 mm |
| Package depth |
584 mm |
| Package height |
241 mm |
| Weight |
17.3 kg |
| Width |
432 mm |
| Package weight |
21.2 kg |
| Height |
89 mm |
| Depth |
406 mm |
| Packaging data |
|---|
| Quick installation guide |
Yes |
| Cables included |
RS-232, USB cable |
| Rack mount kit |
Yes |
| Software CD |
Yes |
| Package width |
546 mm |
| Package depth |
584 mm |
| Package height |
241 mm |
| Package weight |
21.2 kg |
| Logistics data |
|---|
| Products per pallet |
16 pc(s) |
| Harmonized System (HS) code |
85078000 |
| Certificates |
|---|
| Certification |
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, TUV, UL 1778, VDE, REACH, PEP, EOLI |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Cables included |
RS-232, USB cable |
| Rack mount kit |
Yes |
| Software CD |
Yes |
