ARCTIC | SKU:
ACFAN00200A

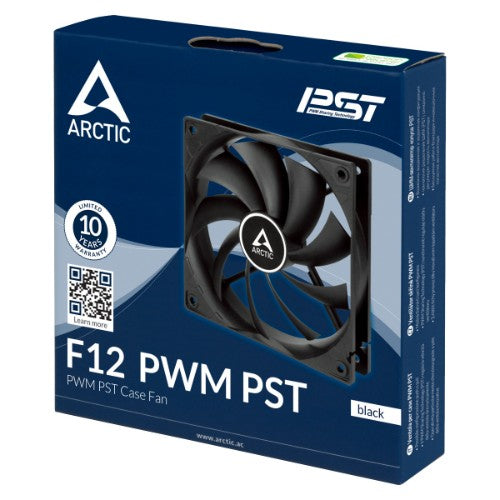

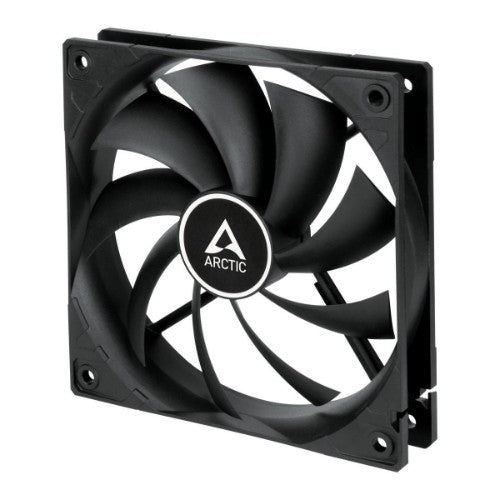

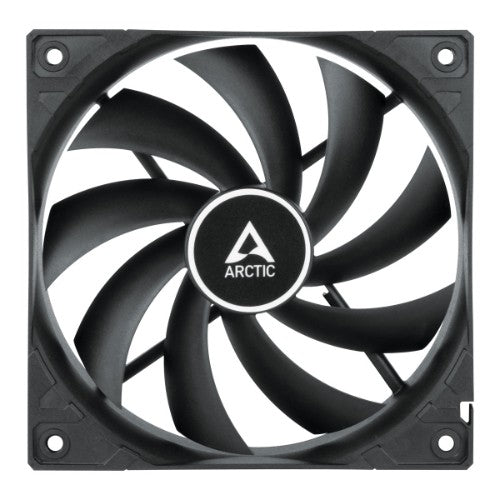

ARCTIC F12 PWM PST 120 mm PWM PST Case Fan
€6.00
Unit price
/
Unavailable
Shipping calculated at checkout.
ARCTIC F12 PWM PST 120 mm PWM PST Case Fan is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
120 mm, 230 - 1350 RPM, 53 cfm, 90.1 m³/h, 0.3 Sone, 0.12 A/12 V DC, PWM PST, Black
Key Features
- PWM Sharing Technology (PST)
- Extremely quiet with low noise impeller
- High airflow and static pressure
- Fluid dynamic bearing ensures extended lifespan
Reasons To Buy
Long Service Life
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service lifePerfect Case Fan Regulation with PWM
The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.PWM Sharing Technology (PST) Lowers Noise
If you want to improve the cooling efficiency of your computer you get several case fans working in parallel (since it takes 10 fans to double the noise level). But what does it help if they don't work together? The PST assures that all of your fans listen to one control signal. E.g. you share the CPU Cooler's PWM signal and assure that your case fans stand down at low load and spin up whenever necessary.Innovative Design Enables Quiet and Efficient Ventilation
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.Two Way installation
Blow warm air out of the case Draw cool air into your caseDescription
The F12 PWM PST case fans are dedicated to outperform their counterparts in terms of cooling performance and noise level.Specifications
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 4-pin + 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (min) | 230 RPM |
| Rotational speed (max) | 1350 RPM |
| Noise level | 0.3 sone |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Type | Fan |
| Fan diameter | 12 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Maximum airflow | 53 cfm |
| Maximum air pressure | 1 mmH2O |
| Airflow | 90.1 m³/h |
| Quantity per pack | 1 pc(s) |
| Design | |
| Fan connector | 4-pin + 4-pin |
| Product colour | Black |
| Cable length | 0.4 m |
| Technical details | |
| Type | Fan |
| Fan diameter | 12 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Maximum airflow | 53 cfm |
| Maximum air pressure | 1 mmH2O |
| Airflow | 90.1 m³/h |
| Cable length | 0.4 m |
| Fan connector | 4-pin + 4-pin |
| Ports & interfaces | |
| Fan connector | 4-pin + 4-pin |
| Power | |
| Starting voltage | 6 V |
| Voltage | 12 V |
| Rated current | 0.24 A |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Package depth | 27 mm |
| Package width | 123 mm |
| Package height | 123 mm |
| Width | 120 mm |
| Package weight | 130 g |
| Depth | 120 mm |
| Height | 25 mm |
| Weight | 109 g |
| Cable length | 0.4 m |
| Packaging data | |
| Package depth | 27 mm |
| Package width | 123 mm |
| Package height | 123 mm |
| Package weight | 130 g |
| Package type | Box |
| Packaging content | |
| Screws included | Yes |
| Package type | Box |
| Other features | |
| Country of origin | China |
| Harmonized System (HS) code | 84733080 |
