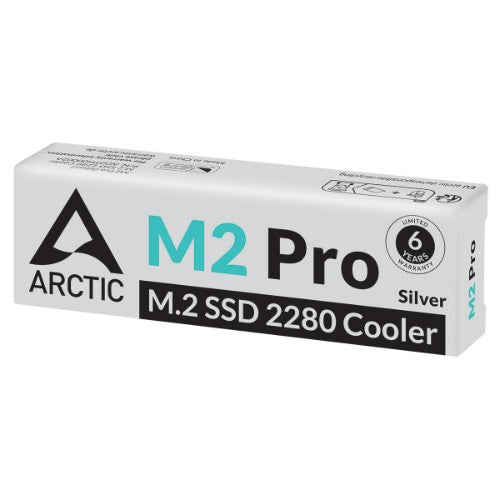

ARCTIC M2 Pro (Silver) - SSD Cooler for M.2 Drives

Passive Cooler for 2280 M.2 SSD, Silver

Reasons To Buy

Enables Consistently High Read and Write Speeds

The M2 Pro is available in black and silver. Its additional mass helps to effectively cool the chips, enable faster cooling and reliable performance of M.2 SSDs. Its slim design makes it compatible with the PlayStation 5 and provides optimal cooling for retrofitted SSD hard disks. It can be installed without screws or rubber bands thanks to the intelligent click system.

Efficient Heat Dissipation

Thanks to its additional mass, the ARCTIC M2 Pro effectively dissipates heat from the chips and passes it on to the environment, resulting in cooler SSD and faster cooling off.

Measurements taken at 25 °C air temperature inside PC case. Without a heat sink, thermal throttling can be expected at higher temperatures.

PS5 Compatible M.2 SSD Cooling

It’s possible to expand the storage capacity of the PlayStation 5 by retrofitting a fast M.2 SSD. Sony expressly emphasizes in the instructions that this M.2 storage medium requires a heat sink. The ARCTIC M2 Pro meets the specified requirements and is therefore suitable for installation in the PS5 and PS5 Slim.

TP-3 Thermal Pads Included

The M2 Pro uses two precisely cut ARCTIC TP-3 thermal pads. Due to their softness, they are particularly suitable as thermal pads for M.2 SSDs, as they adapt optimally to the height difference of the heat-generating components. In addition, the TP-3 offers excellent thermal conductivity, is easy to handle and safe to use.

Easy Assembly for Single- and Double-Sided SSDs

The mounting of the ARCTIC M2 Pro does not require screws or rubber bands. Instead, the SSD is placed between the heat sinks using a click process. The NVMe SSD cooler is designed for both single-sided and double-sided 2280 M.2 SSDs. The height differences are compensated for by the included thermal pad.

Description

Cooling Parts

Matching accessories for our product range — PST cable, Case Fan Hub and more.

Specifications

Performance
Suitable location	M.2 NVMe SSD
Type	Heatsink/Radiator
Quantity per pack	1 pc(s)
Design
Material	Aluminium
Product colour	Silver
Technical details
Type	Heatsink/Radiator
Material	Aluminium
Colour
Product colour	Silver
Weight & dimensions
Package depth	78 mm
Package width	25 mm
Package height	14 mm
Width	24.2 mm
Package weight	44 g
Depth	73 mm
Height	10.5 mm
Weight	40.5 g
Packaging data
Package depth	78 mm
Package width	25 mm
Package height	14 mm
Package weight	44 g
Packaging content
Thermal pad included	Yes
Other features
Country of origin	Hong Kong
