ARCTIC | SKU:
ACFAN00123A

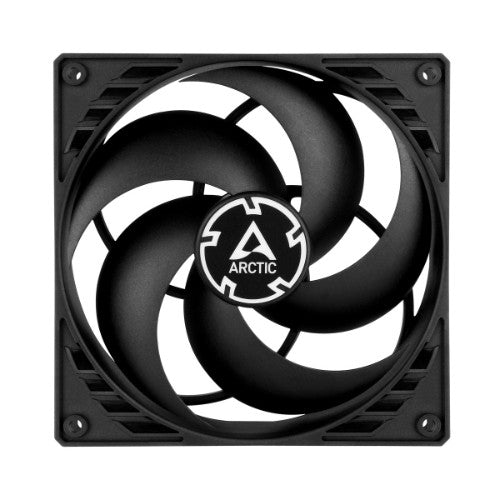

ARCTIC P14 – Pressure-optimised 140 mm Fan
€6.26
Unit price
/
Unavailable
Shipping calculated at checkout.
ARCTIC P14 – Pressure-optimised 140 mm Fan is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
140 mm, 1700 RPM, 12 V DC, 3-pin, 191 g
Thus, the P14 is especially effective when used on heatsinks and with higher air resistance.
Key Features
- Optimised for static pressure
- Ideal choice on heatsinks, radiators and (partly-) covered case vents
- Push- or pull-configuration possible
Reasons To Buy
Optimised for Static Pressure
During the development of the new P14, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 is particularly suitable for use on heatsinks and radiators.High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.Description
The P14 fan features completely redesigned fan blades and is optimised for high static pressure.Thus, the P14 is especially effective when used on heatsinks and with higher air resistance.
Specifications
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 3-pin |
| Rotational speed (max) | 1700 RPM |
| Noise level | 0.3 sone |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Noise level (high speed) | 24.5 dB |
| Type | Fan |
| Fan diameter | 14 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Maximum airflow | 72.8 cfm |
| Airflow | 123.76 m³/h |
| Number of fans | 1 fan(s) |
| Design | |
| Fan connector | 3-pin |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Cable length | 0.4 m |
| Technical details | |
| Noise level (high speed) | 24.5 dB |
| Type | Fan |
| Fan diameter | 14 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Maximum airflow | 72.8 cfm |
| Airflow | 123.76 m³/h |
| Number of fans | 1 fan(s) |
| Cable length | 0.4 m |
| Fan connector | 3-pin |
| Ports & interfaces | |
| Fan connector | 3-pin |
| Power | |
| Starting voltage | 2.1 V |
| Voltage | 12 V |
| Rated current | 0.15 A |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Package depth | 143 mm |
| Package width | 143 mm |
| Package height | 29 mm |
| Width | 140 mm |
| Package weight | 227 g |
| Depth | 140 mm |
| Height | 27 mm |
| Weight | 191 g |
| Cable length | 0.4 m |
| Packaging data | |
| Package depth | 143 mm |
| Package width | 143 mm |
| Package height | 29 mm |
| Package weight | 227 g |
| Package type | Box |
| Packaging content | |
| Screws included | Yes |
| Number of screws | 4 |
| Package type | Box |
| Other features | |
| Country of origin | China |
| Harmonized System (HS) code | 84733080 |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
