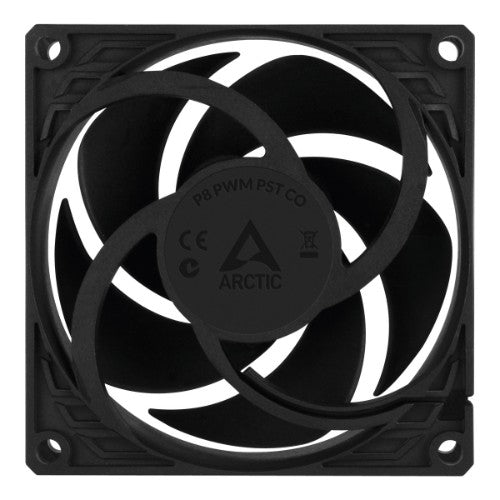

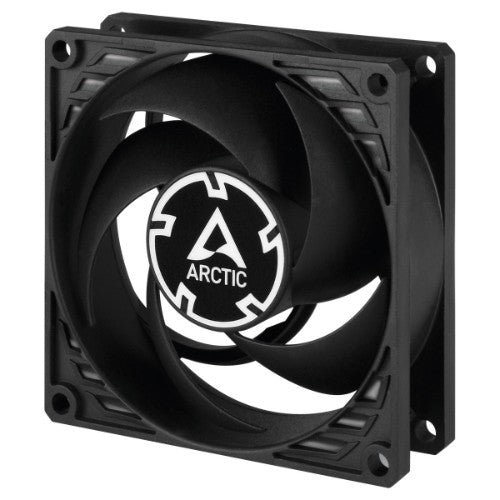

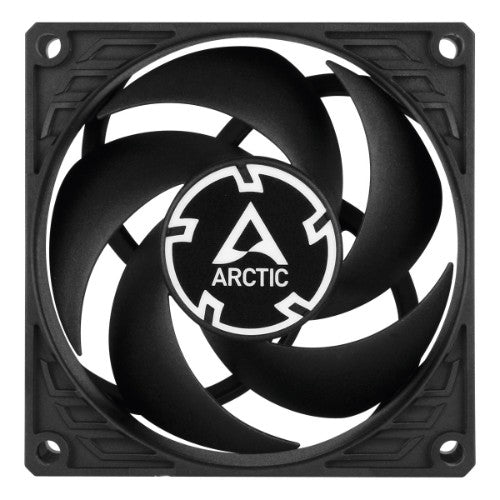

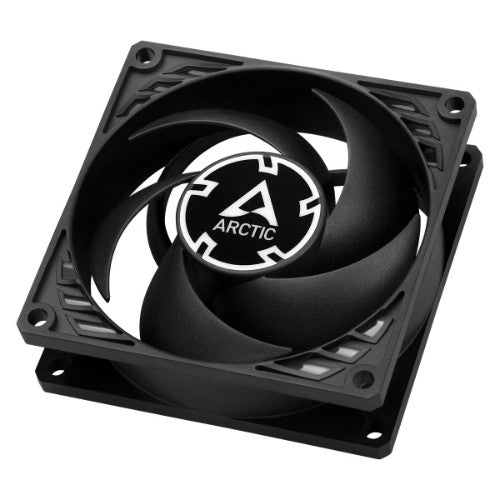

ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation

80 x 25 mm, 200 - 3000 RPM, 23.4 CFM, 40.3 m³/h, 0.3 Sone, 12V DC, 78.5 g

Reasons To Buy

Optimised for Static Pressure

During the development of the new P8 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P8 PWM PST CO is particularly suitable for use on heatsinks and radiators.

For Continuous Operation

The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential.

Maximum Quietness, Minimum Vibration

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.
Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Extended Life Span

A 10 °C lower motor temperature roughly doubles the life span of a fan.
The new ARCTIC motor has a four times longer service life through its low coil temperature.
Consequently, we have extended the warranty to 10 years.

200 to 3000 RPM regulated via PWM

With a wide range of regulation and the PWM Sharing Technology (PST), the P8 PWM PST CO fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.

Two Way Installation

Push warm air out of the case
Pull cool air into your case

Description

Not only that we at ARCTIC free the IT world from noise – we care for the right sound as well!

As an international company, our expertise extends over noise reduction in PCs to consumer electronics products.

Specifications

Performance
Suitable location	Computer case
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (min)	200 RPM
Rotational speed (max)	3000 RPM
Noise level	0.3 sone
Bearing type	Fluid Dynamic Bearing (FDB)
Type	Fan
Fan diameter	8 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Maximum airflow	23.4 cfm
Maximum air pressure	1.9 mmH2O
Airflow	40.3 m³/h
Number of fans	1 fan(s)
Mounting hole pattern (W x D)	71.5 x 71.5 mm
Number of fan blades	5
Design
Fan connector	4-pin
Number of fans	1 fan(s)
Product colour	Black
Number of fan blades	5
Technical details
Type	Fan
Fan diameter	8 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Maximum airflow	23.4 cfm
Maximum air pressure	1.9 mmH2O
Airflow	40.3 m³/h
Number of fans	1 fan(s)
Fan connector	4-pin
Mounting hole pattern (W x D)	71.5 x 71.5 mm
Ports & interfaces
Fan connector	4-pin
Power
Voltage	12 V
Rated current	0.09 A
Colour
Product colour	Black
Weight & dimensions
Package depth	26 mm
Package width	82.5 mm
Package height	82.5 mm
Width	80 mm
Package weight	97 g
Depth	25 mm
Height	80 mm
Weight	78.5 g
Packaging data
Package depth	26 mm
Package width	82.5 mm
Package height	82.5 mm
Package weight	97 g
Package type	Box
Packaging content
Screws included	Yes
Number of screws	4
Package type	Box
Manual	Yes
Other features
Mounting hole pattern (W x D)	71.5 x 71.5 mm
Country of origin	China
