Asrock | SKU:
AM5D4ID-2T/BCM
Sold out

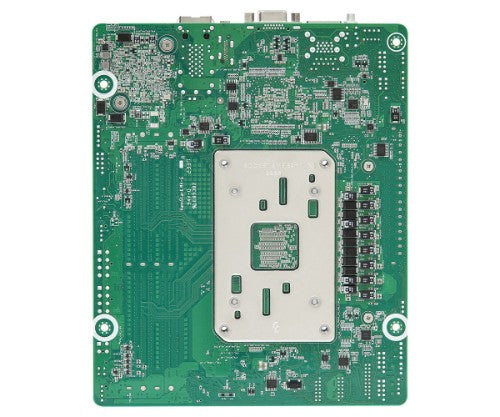

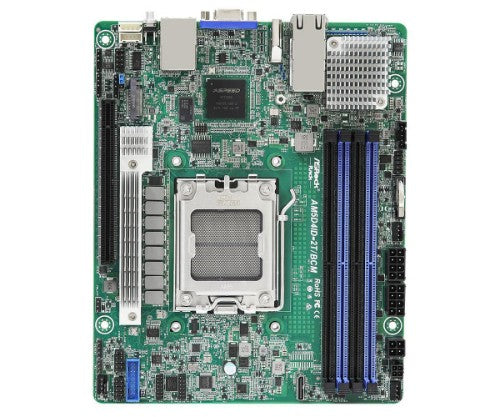

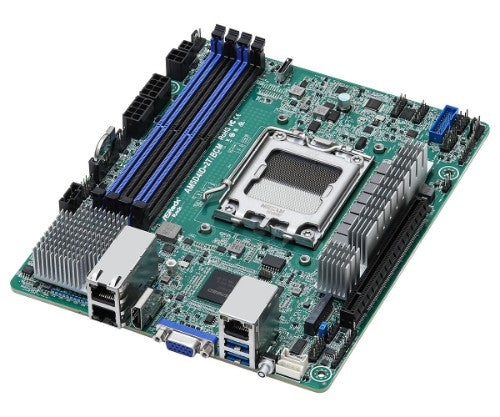

Asrock AM5D4ID-2T/BCM motherboard KNOLL3 X300 Socket AM5 mini ITX
€437.83
Unit price
/
Unavailable
Shipping calculated at checkout.
Asrock AM5D4ID-2T/BCM motherboard KNOLL3 X300 Socket AM5 mini ITX is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Deep mini-ITX (6.7"x 8.2") Supports AMD EPYC 4004 and AMD Ryzen 9000/8000/7000 Series Processors
Key Features
- Deep mini-ITX (6.7"x 8.2")
- Supports AMD EPYC™ 4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
- 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
- 1 PCIe5.0 x16
- 1 OCuLink (PCIe4.0 x2)
- Supports 1 M.2 (PCIe4.0 x4)
- 2 RJ45 (10GbE) by Broadcom BCM57416
- 1 HDMI
- Remote management (IPMI)
Description
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| Audio connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | KNOLL3 X300 |
| Supported processor sockets | Socket AM5 |
| Motherboard form factor | mini ITX |
| Component for | Server |
| Performance | |
| Supported storage drive types | SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Linux operating systems supported | Ubuntu 22.04 |
| Motherboard chipset family | AMD |
| Motherboard chipset | KNOLL3 X300 |
| Supported processor sockets | Socket AM5 |
| Motherboard form factor | mini ITX |
| Component for | Server |
| Expansion card interfaces | |
| Audio connector | Yes |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD EPYC 4004, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory voltage | 1.1 V |
| Supported memory clock speeds | 3600,5200 MHz |
| Supported memory clock speed (max) | 5200 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Storage controllers | |
| Supported storage drive types | SSD |
| Supported storage drive interfaces | M.2 |
| Graphics | |
| Graphics card family | ASPEED |
| Graphics card | AST2600 |

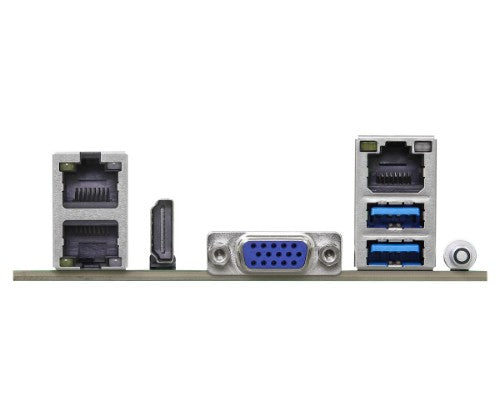

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| IPMI LAN (RJ-45) port | Yes |
| Network | |
| Ethernet LAN | Yes |
| LAN controller | Broadcom BCM57416 |
| Ethernet interface type | 10 Gigabit Ethernet |
| Features | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Linux operating systems supported | Ubuntu 22.04 |
| Motherboard chipset family | AMD |
| Motherboard chipset | KNOLL3 X300 |
| Supported processor sockets | Socket AM5 |
| Motherboard form factor | mini ITX |
| Component for | Server |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.1 |
| System Management BIOS (SMBIOS) version | 2.3 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Video | |
| Graphics card family | ASPEED |
| Graphics card | AST2600 |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Linux operating systems supported | Ubuntu 22.04 |
| Weight & dimensions | |
| Width | 170.2 mm |
| Depth | 208.3 mm |
