Asrock | SKU:
B650D4U-2L2T/BCM
Sold out

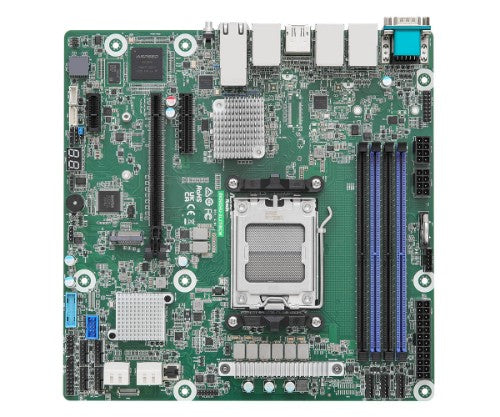

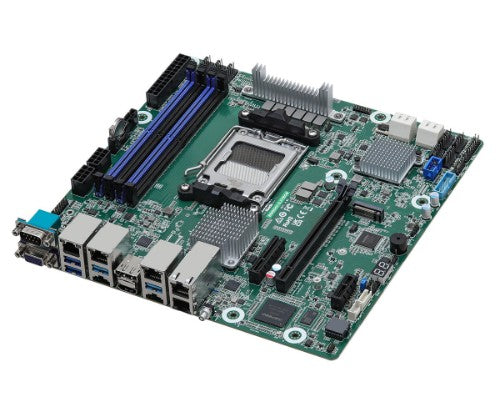

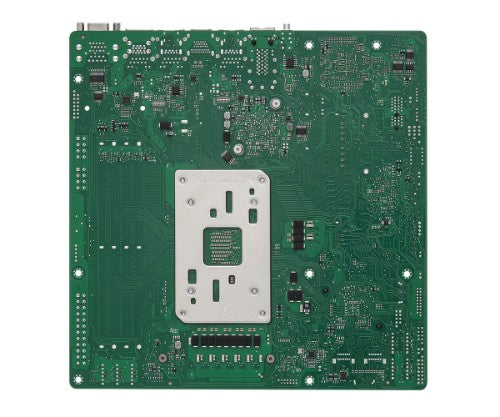

Asrock B650D4U-2L2T/BCM motherboard AMD B650 Express Socket AM5 micro ATX
€440.08
Unit price
/
Unavailable
Shipping calculated at checkout.
Asrock B650D4U-2L2T/BCM motherboard AMD B650 Express Socket AM5 micro ATX is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
MB B650D4U-2L2T BCM B650E AM5 Max128GB DDR5 Micro ATX Retail
Key Features
- Micro-ATX (9.6"x 9.6")
- Support AMD Ryzen 7000 series Processors
- 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
- 1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1
- Supports 1 M.2 (PCIe5.0 x4)
- 2 RJ45 (10GbE) by Broadcom BCM57416
- 2 RJ45 (1GbE) by Intel® i210
- 4 SATA 6Gb/s
- 1 HDMI, 1 DisplayPort
- Remote management (IPMI)
Description
Specifications
| Technical details | |
|---|---|
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 Express |
| PC health monitoring | CPU, Fan, Voltage |
| Motherboard form factor | micro ATX |
| Component for | Server |
| Performance | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 Express |
| RAID levels | 0, 1, 10 |
| PC health monitoring | CPU, Fan, Voltage |
| Motherboard form factor | micro ATX |
| Component for | Server |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5 |
| Maximum number of SMP processors | 1 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory voltage | 1.1 V |
| Supported memory clock speeds | 3600,5200 MHz |
| Maximum internal memory | 32 GB |
| Supported memory clock speed (max) | 5200 MHz |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Graphics | |
| On-board graphics card model | Aspeed AST2600 |
| Internal I/O | |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| EPS power connector (8-pin) | Yes |
| ATX Power connector (24-pin) | Yes |

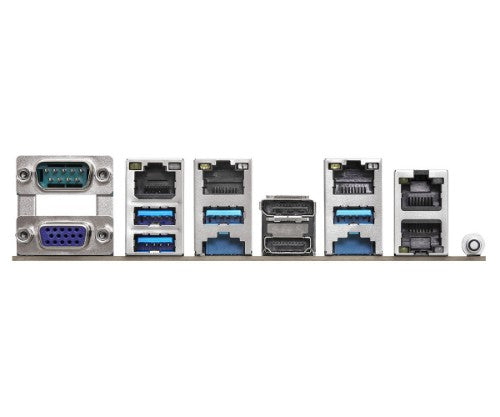

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| IPMI LAN (RJ-45) port | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Features | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 Express |
| PC health monitoring | CPU, Fan, Voltage |
| Motherboard form factor | micro ATX |
| Component for | Server |
| Expansion slots | |
| PCI Express x4 (Gen 4.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.4 |
| System Management BIOS (SMBIOS) version | 3.5 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width | 243.8 mm |
| Depth | 243.8 mm |
