Asrock DeskMini H470 1.92L sized PC Black Intel H470 LGA 1200 (Socket H5)

Supports 10th Gen LGA1200 (Max. TDP 65W), 2 x SO-DIMM DDR4-2933MHz, Max. 64GB (non-ECC), HDMI, DisplayPort1.4 (USB Type C Alt mode), D-Sub, Gigabit LAN (Intel I219V), 155 x 155 x 80 mm

Key Features

• Supports Intel® 10th Gen LGA1200 processors, up to 65W
• Dual DDR4-2933MHz SO-DIMMs, up to 64GB
• Multi Video Outputs: 2 x DisplayPort, HDMI & D-Sub
• 1 x Alternate Mode USB Type-C
• 1 x USB 3.2 Gen1 Type-C port
• 1 x Ultra M.2 PCIe Gen3 x4 Slot
• 2 x 2.5" HDD/SSD Tray with RAID 0/1
• 1 x M.2 (2230) Wi-Fi Slot

Description

Power of 10! DeskMini H470 adopts LGA1200 CPU socket, supports Intel® the latest 10 cores Core i9-10900 65 watts Processor, delivering ultimate computing performance within tiny PC. Dr.MOS The integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. Premium 60A Power Choke Compared to traditional chokes, ASRock' premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Heatsink on MOSFET ASRock DeskMini H470 features with Aluminum MOSFET Heatsink providing great heat dissipation to ensure system’s stability in loading. ASRock BFB Technology ASRock DeskMini H470 supports exclusive Base Frequency Boost (BFB) Technology, allows user to bump non-K processors speed to enhance system performance. Dual Channel DDR4-2933 ASRock DeskMini H470 supports dual-channel DDR4-2933MHz high-speed memory. It is 10% faster than the previous generation and brings higher performance. USB Alternate Mode ASRock DeskMini H470 adopts Rear USB Type-C USB Alternate Mode providing 4K resolution DisplayPort signal, up to 60 watt power delivery, and 5Gbps data transfer through one cable. Rapid USB Connectivity ASRock DeskMini H470 supports USB 3.2 Gen2 Type-A on front panel, delivering 10Gbps speedy data transfer bandwidth. In addition, DeskMini H470 brings 4 x USB 3.2 Gen1 ports on rear side. Optane Memory Technology The Supports on Intel® Optane™ memory technology and Intel® Optane™ storage technology redefines a new standard of high performance and responsiveness. Multi Storages ASRock DeskMini H470 supports Multi Storages: M2_1 M.2 (2280) –PCIe Gen3 x4 2 x 2.5” SATA 6Gb SSD/HDD Tray Mini Home Data Center DeskMini H470 supports RAID 0/1 function! Build mini data center at home! RAID 0 –offers superior I/O performance RAID 1 –protects critical data in mirrored data Triple 4K Displays DeskMini H470 supports 3 displays output simultaneously! Expanding desktop by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive. DeskMini Addressable LED(Optional) Exclusive Addressable RGB LED Strip for ASRock DeskMini Series mini PC. To create cool personalized lighting for you. DeskMini USB Hub(Optional) DeskMini USB Hub grants you easy connection to the DeskMini Addressable LED and USB 2.0 Cable for fantastic personalized lighting as well as the accessibility to expand extra 2x USB 2.0 ports. VESA Mount Kit (Optional) Let you attach your DeskMini to any VESA-compatible wall mount, monitor or articulating arms to create your ideal space. Rear Audio Cable (Optional) Connect to external audio devices such as: 2.1 channel speaker, soundbar, headphone amplifier, and so on… Intel® Wi-Fi Kit (Optional) ASRock M.2 Wi-Fi Kit includes Intel® M.2 Wi-Fi module* and two antennas; offering wireless connectivity for DeskMini. USB 2.0 Cable (Optional) Purchasing USB Cable for extra 2 x USB 2.0 ports on DeskMini Series side plane. The availability of USB cable may vary from model or region to another.

Specifications

Motherboard
Processor socket	LGA 1200 (Socket H5)
Motherboard chipset	Intel H470
Processor
Built-in processor	No
Processor socket	LGA 1200 (Socket H5)
Motherboard chipset	Intel H470
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Memory channels	Dual-channel
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	2933 MHz
Maximum internal memory	64 GB
Non-ECC	Yes
Video
On-board graphics card	No
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5,M.2
Storage drive interface	PCI Express, Serial ATA III
RAID levels	0, 1
Graphics
On-board graphics card	No
Display
Touchscreen	No
Audio
Built-in speaker(s)	No
Network
Ethernet LAN	Yes
Wi-Fi	No

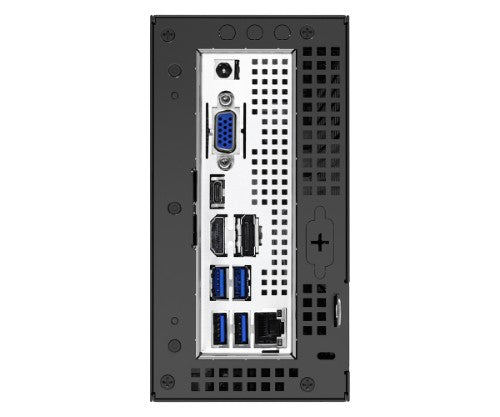

Ports & interfaces
DisplayPort version	1.4
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
DisplayPorts quantity	2
VGA (D-Sub) ports quantity	1
Microphone in	Yes
Headphone outputs	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Expansion slots
Number of M.2 (M) slots	2
Design
Product type	Mini PC barebone
On/off switch	Yes
Touchscreen	No
LED indicators	Yes
Product colour	Black
Chassis type	1.92L sized PC
Performance
Processor socket	LGA 1200 (Socket H5)
Motherboard chipset	Intel H470
Harmonized System (HS) code	84713000
Colour
Product colour	Black
Technical details
RAID levels	0, 1
Chassis type	1.92L sized PC
Indication
LED indicators	Yes
Management features
On/off switch	Yes
Power
AC input voltage	100 - 240 V
AC adapter output voltage	19 V
Power supply type	External AC adapter
Power supply	120 W
Weight & dimensions
Width	80 mm
Depth	155 mm
Height	155 mm
Packaging content
Touchscreen	No
Other features
Chassis type	1.92L sized PC
