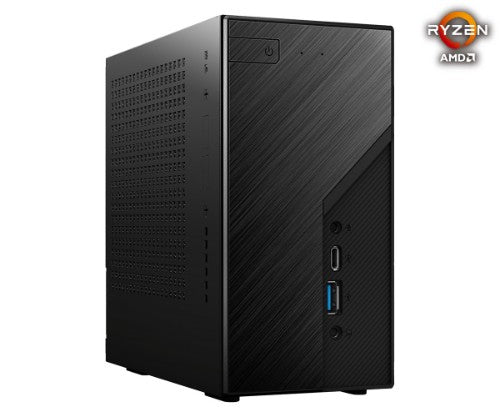

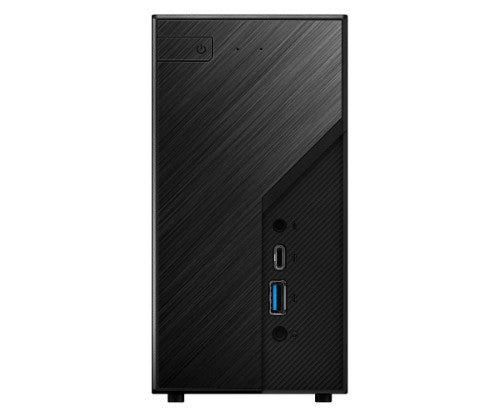

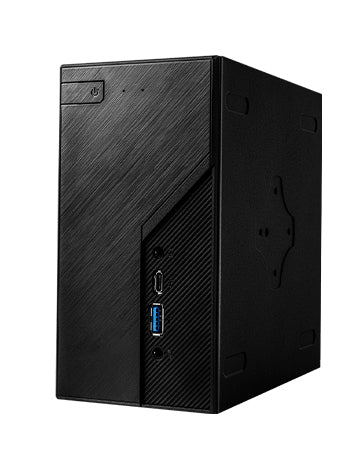

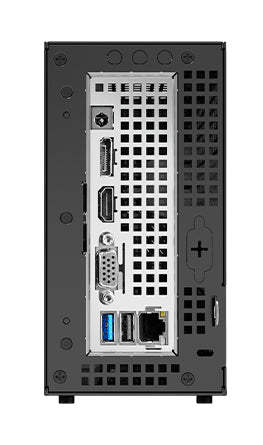

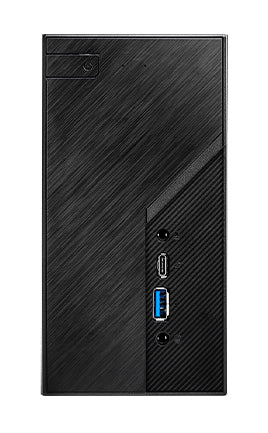

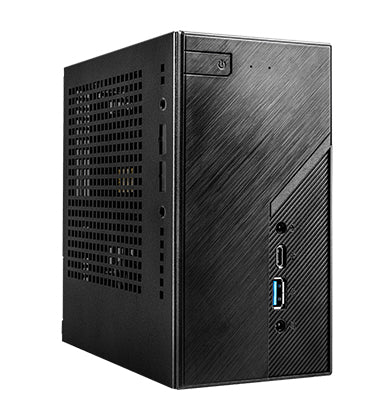

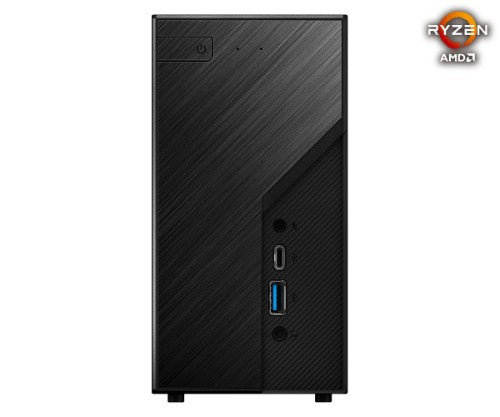

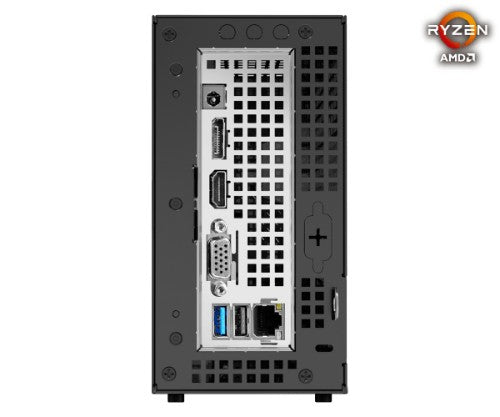

Asrock DeskMini X300 1.92L sized PC Black AMD X300 Socket AM4
€133.44
Unit price
/
Unavailable
Shipping calculated at checkout.
Asrock DeskMini X300 1.92L sized PC Black AMD X300 Socket AM4 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
AMD AM4 (AMD X300), 2 x SO-DIMM DDR4 Max. 64GB, HDMI, DisplayPort, D-Sub, Gigabit LAN (RealtekRTL8111H), 155 x 155 x 80 mm (1.92L)
AMD AM4 Socket CPU
Support Renoir, Picasso, Raven Ridge, up to 65W
Support MAX Height ≦46mm CPU Cooler
Overclocking Option in BIOS
ASRock DeskMini X300 supports overclocking options. Improve system performance by tuning the core clock and release the potential of the AM4 APU.
Insane Memory Performance
ASRock DeskMini supports Dual Channel DDR4-3200+MHz (OC) memory, up to 64GB. Thanks to high speed memory and Radeon™ Graphics, DeskMini provides awesome 3D performance.
4X Storages
ASRock DeskMini supports up to 4 Storages
M2_1 M.2 (2280) –PCIe Gen3 x4
M2_2 M.2 (2280) –PCIe Gen3 x2/x4
2x 2.5” SATA 6Gb SSD/HDD Tray
Mini Home Data Center
DeskMini supports RAID 0/1 function! Build mini data center at home!
RAID 0 –offers superior I/O performance
RAID 1 –protects critical data in mirrored data
Heatsink on MOSFET
ASRock DeskMini features with Aluminum MOSFET Heatsink provides great heat dissipation to ensure system stable in loading.
Triple Display
DeskMini supports 3 display output simultaneously
Expanding desktop by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
USB Type-C
A Type-C USB 3.2 Gen1 connector for fast charging and delivering up to 5Gbps data transfer rates.
Key Features
- AMD AM4 Socket CPU
- Supports Overclocking Option with X300
- High-Speed DDR4-3200MHz Memory
- Dual Ultra M.2 (NVMe)
- 2 x 2.5" SATA 6Gb Hard Drive
- Support RAID 0/1 function
- HDMI, DisplayPort, D-Sub
- M.2 For Wi-Fi Module
- USB 3.2 Gen1 Type-C
Description
Small APU Form FactorAMD AM4 Socket CPU
Support Renoir, Picasso, Raven Ridge, up to 65W
Support MAX Height ≦46mm CPU Cooler
Overclocking Option in BIOS
ASRock DeskMini X300 supports overclocking options. Improve system performance by tuning the core clock and release the potential of the AM4 APU.
Insane Memory Performance
ASRock DeskMini supports Dual Channel DDR4-3200+MHz (OC) memory, up to 64GB. Thanks to high speed memory and Radeon™ Graphics, DeskMini provides awesome 3D performance.
4X Storages
ASRock DeskMini supports up to 4 Storages
M2_1 M.2 (2280) –PCIe Gen3 x4
M2_2 M.2 (2280) –PCIe Gen3 x2/x4
2x 2.5” SATA 6Gb SSD/HDD Tray
Mini Home Data Center
DeskMini supports RAID 0/1 function! Build mini data center at home!
RAID 0 –offers superior I/O performance
RAID 1 –protects critical data in mirrored data
Heatsink on MOSFET
ASRock DeskMini features with Aluminum MOSFET Heatsink provides great heat dissipation to ensure system stable in loading.
Triple Display
DeskMini supports 3 display output simultaneously
Expanding desktop by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
USB Type-C
A Type-C USB 3.2 Gen1 connector for fast charging and delivering up to 5Gbps data transfer rates.
Specifications
| Motherboard | |
|---|---|
| Processor socket | Socket AM4 |
| Number of processors supported | 1 |
| Motherboard chipset | AMD X300 |
| Compatible processor series | AMD Athlon, AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7 |
| Processor | |
| Built-in processor | No |
| Processor socket | Socket AM4 |
| Number of processors supported | 1 |
| Motherboard chipset | AMD X300 |
| Compatible processor series | AMD Athlon, AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7 |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 2933,3200 MHz |
| Maximum internal memory | 64 GB |
| Video | |
| On-board graphics card | No |
| Storage | |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| RAID levels | 0, 1 |
| Graphics | |
| On-board graphics card | No |
| Audio | |
| Built-in speaker(s) | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Realtek RTL8111H |
| Ports & interfaces | |
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| Design | |
| Product type | Mini PC barebone |
| On/off switch | Yes |
| LED indicators | Yes |
| Product colour | Black |
| Chassis type | 1.92L sized PC |
| Performance | |
| Processor socket | Socket AM4 |
| Number of processors supported | 1 |
| Motherboard chipset | AMD X300 |
| Compatible processor series | AMD Athlon, AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7 |
| Harmonized System (HS) code | 84713000 |
| Colour | |
| Product colour | Black |
| Technical details | |
| RAID levels | 0, 1 |
| Chassis type | 1.92L sized PC |
| Indication | |
| LED indicators | Yes |
| Management features | |
| On/off switch | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84713000 |
| Power | |
| AC adapter output voltage | 19 V |
| Power supply type | External AC adapter |
| Power supply | 120 W |
| Weight & dimensions | |
| Width | 80 mm |
| Depth | 155 mm |
| Height | 155 mm |
| Other features | |
| Chassis type | 1.92L sized PC |
