Asrock | SKU:
EC266D2I
Sold out

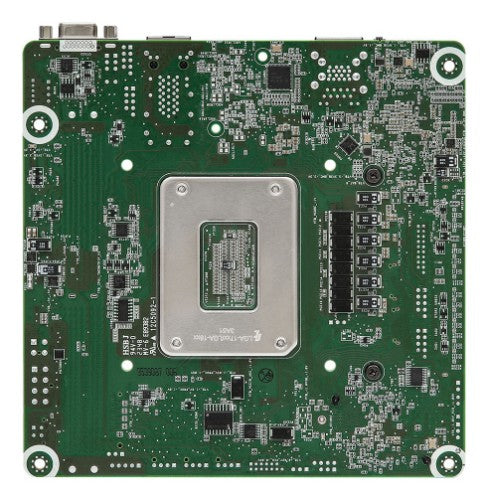

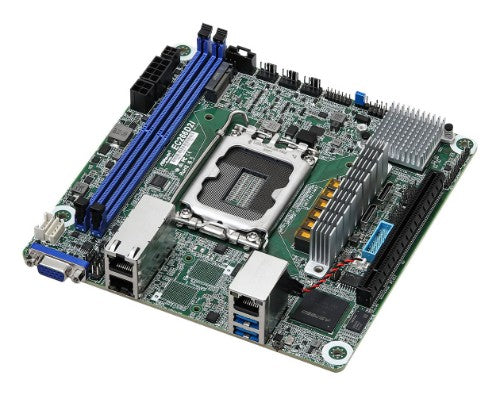

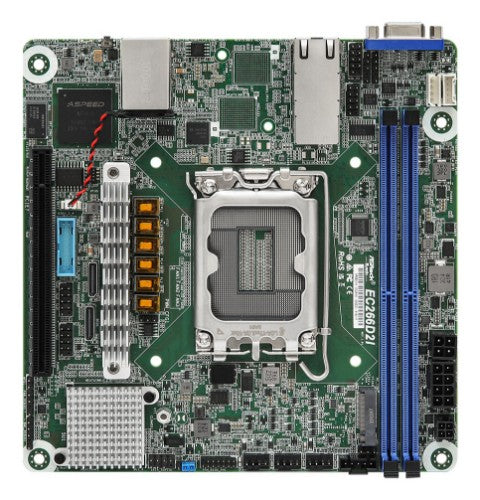

Asrock EC266D2I motherboard Intel C266 LGA 1700 mini ITX
€316.90
Unit price
/
Unavailable
Shipping calculated at checkout.
Asrock EC266D2I motherboard Intel C266 LGA 1700 mini ITX is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Mini-ITX, 170.18 x 170.18 mm, Single Socket V1 (LGA 1700), Supports Intel Xeon 6300-series, Xeon E-2400 series, and Pentium Gold G7400/G7400T processors
Key Features
- Supports ATX PSU or 12V DC-in
- mini-ITX (6.7" x 6.7")
- Supports Intel® Xeon® 6300-series, Xeon® E-2400 series, and Pentium® Gold G7400/G7400T processors
- 2 DIMM slots (1DPC), supports DDR5 ECC UDIMM
- 1 PCIe5.0 x16
- 1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s)
- 1 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s)
- 1 M.2 (PCIe4.0 x4)
- Up to 8 SATA 6Gb/s
- 2 RJ45 (1GbE) by Intel® i210
- Remote Management (IPMI)
Description
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| TPM connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of SATA III connectors | 8 |
| Number of COM connectors | 1 |
| EPS power connector (8-pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C266 |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | CPU, Fan |
| Motherboard form factor | mini ITX |
| Performance | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C266 |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | CPU, Fan |
| Motherboard form factor | mini ITX |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Pentium® Gold, Intel® Xeon®, Intel Xeon E |
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 2 |
| Supported memory types | DDR5-SDRAM |
| Memory voltage | 1.1 V |
| Maximum internal memory | 32 GB |
| Supported memory clock speed (max) | 4800 MHz |
| ECC сompatibility | ECC |
| Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Graphics | |
| On-board graphics card model | Aspeed AST2600 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| IPMI LAN (RJ-45) port | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Features | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C266 |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | CPU, Fan |
| Motherboard form factor | mini ITX |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express OCuLink connectors (NVMe support) | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS | |
| BIOS type | AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.4 |
| System Management BIOS (SMBIOS) version | 2.8 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width | 170.2 mm |
| Depth | 170.2 mm |
