Asrock | SKU:
90BXG3Z01-A20GA0F
Sold out

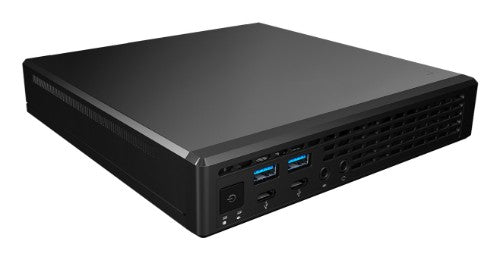

Asrock Jupiter X300 1L sized PC Black AMD X300 Socket AM4 Built-in speaker(s)
€136.12
Unit price
/
Unavailable
Shipping calculated at checkout.
Asrock Jupiter X300 1L sized PC Black AMD X300 Socket AM4 Built-in speaker(s) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
AMD AM4 Socket 65W APUs, 2x DDR4 SO-DIMM, 2x USB 2.0, 4x USB 3.2 Gen1 Type-A, 2x USB 3.2 Gen1 Type-C, RJ-45, 90 W
Jupiter X300 is one of the most compact AMD AM4 mini PC in the market. It supports AM4 APUs, up to 65 Watts.
Advanced AM4 Platform
AMD AM4 Socket APU
Support 5000/4000/3000/2000 Series APU, up to 65W
High Speed DDR4 Memory
DDR4-3200MHz (Cezanne/Renoir)
DDR4-2933MHz (Picasso/Raven)
High Performance Thermal
Copper based heatsink
High efficiency blower
Dual Storage & Wireless
Ultra M.2 Slot
PCIe Gen3 x4 & SATA6Gb M.2 (2280)
SATA 6Gb Hard Drive Bay
Support 7mm/9.5mm height 2.5” SSD/HDD
M.2 For Wi-Fi Module
Optional Intel® AC-3168, AX200 Wi-Fi
Rich USB Connectivity
Supports 8 USB Ports
Front Side
2 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1 Type-A
Rear Side
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0
Enhanced Creativity
3 Video Outputs
HDMI4K@60Hz
DisplayPort4K@60Hz
D-SubFHD@60Hz
Enterprise Solutions
DASH LAN(optional)
Provide secure out-of-band and remote management of desktop via intranet/internet.
TPM 2.0 (optional)
Jupiter X300 supports TPM 2.0 to provide the enhanced network, data security down to the hardware level.
Anti-Thief & Speaker
Chassis Intrusion
Get notification if chassis of Jupiter has been opened.
Native 2W Speaker
Jupiter X300 adopts amplifier and 2 watt speaker.
VESA Mount & Stand
Tri-direction VESA mount let you mount Jupiter behind monitor.
Use Vertical stand to save desk space.
Key Features
- AM4 Socket APUs, up to 65Watts
- AMD X300 Chipset
- 178 x 178 x 34mm / 1.07L
- 2 x USB 3.2 Gen1 Type-C
- 4 x USB 3.2 Gen1
- 2 x USB 2.0
- DisplayPort, HDMI, D-Sub
- M.2 (2280) slot for SSD (PCIe / SATA 6Gb)
- M.2 (2230) slot for Wi-Fi
- 2W Speaker, TPM V2.0
Description
AM4 One Liter Mini PCJupiter X300 is one of the most compact AMD AM4 mini PC in the market. It supports AM4 APUs, up to 65 Watts.
Advanced AM4 Platform
AMD AM4 Socket APU
Support 5000/4000/3000/2000 Series APU, up to 65W
High Speed DDR4 Memory
DDR4-3200MHz (Cezanne/Renoir)
DDR4-2933MHz (Picasso/Raven)
High Performance Thermal
Copper based heatsink
High efficiency blower
Dual Storage & Wireless
Ultra M.2 Slot
PCIe Gen3 x4 & SATA6Gb M.2 (2280)
SATA 6Gb Hard Drive Bay
Support 7mm/9.5mm height 2.5” SSD/HDD
M.2 For Wi-Fi Module
Optional Intel® AC-3168, AX200 Wi-Fi
Rich USB Connectivity
Supports 8 USB Ports
Front Side
2 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1 Type-A
Rear Side
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0
Enhanced Creativity
3 Video Outputs
HDMI4K@60Hz
DisplayPort4K@60Hz
D-SubFHD@60Hz
Enterprise Solutions
DASH LAN(optional)
Provide secure out-of-band and remote management of desktop via intranet/internet.
TPM 2.0 (optional)
Jupiter X300 supports TPM 2.0 to provide the enhanced network, data security down to the hardware level.
Anti-Thief & Speaker
Chassis Intrusion
Get notification if chassis of Jupiter has been opened.
Native 2W Speaker
Jupiter X300 adopts amplifier and 2 watt speaker.
VESA Mount & Stand
Tri-direction VESA mount let you mount Jupiter behind monitor.
Use Vertical stand to save desk space.
Specifications
| Motherboard | |
|---|---|
| Processor socket | Socket AM4 |
| Number of processors supported | 1 |
| Motherboard chipset | AMD X300 |
| Processor | |
| Built-in processor | No |
| Processor socket | Socket AM4 |
| Number of processors supported | 1 |
| Motherboard chipset | AMD X300 |
| Processor manufacturer | AMD |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 2933,3200 MHz |
| Maximum internal memory | 64 GB |
| Non-ECC | Yes |
| Video | |
| On-board graphics card | No |
| Graphics card family | AMD |
| Storage | |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | PCI Express, Serial ATA III |
| SSD form factor | M.2 |
| Graphics | |
| On-board graphics card | No |
| Graphics card family | AMD |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of speakers | 1 |
| RMS rated power | 2 W |
| Audio chip | Realtek ALC233 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Realtek RTL8111GN |
| Ports & interfaces | |
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Microphone in | Yes |
| Headphone outputs | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| Design | |
| VESA mounting | Yes |
| Product type | Mini PC barebone |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product colour | Black |
| Chassis type | 1L sized PC |
| Performance | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Processor socket | Socket AM4 |
| Number of processors supported | 1 |
| Motherboard chipset | AMD X300 |
| Audio chip | Realtek ALC233 |
| Colour | |
| Product colour | Black |
| Technical details | |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Chassis type | 1L sized PC |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 90 W |
| Number of power supply units | 1 |
| Weight & dimensions | |
| Width | 178 mm |
| Depth | 178 mm |
| Height | 34 mm |
| Other features | |
| Chassis type | 1L sized PC |
