Asrock | SKU:
SP2C741D16-2T
Sold out

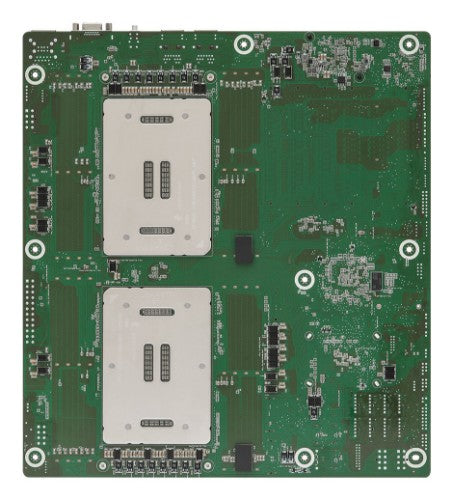

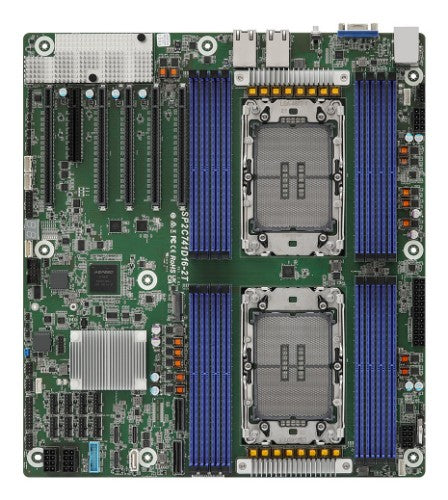

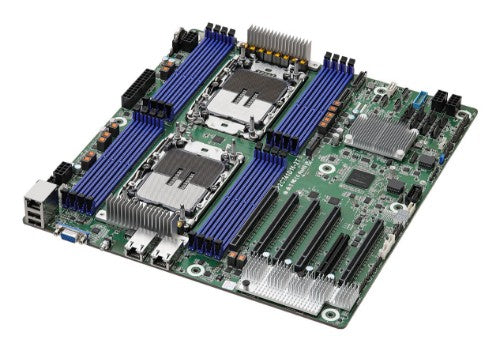

Asrock SP2C741D16-2T motherboard LGA 4677 (Socket E) EEB
€901.45
Unit price
/
Unavailable
Shipping calculated at checkout.
Asrock SP2C741D16-2T motherboard LGA 4677 (Socket E) EEB is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
EEB, 307 x 337.82 mm, 1+1 Socket E (LGA 4677), Supports 5th and 4th Gen Intel® Xeon Scalable Processors
Key Features
- TGPIO supporting precise time synchronization between devices
- EEB (12.12'' x 13.3")
- Supports 5th and 4th Gen Intel® Xeon® Scalable Processors
- 8+8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS
- 5 PCIe5.0 / CXL1.1 x16
- 1 PCIe5.0 x8
- 2 MCIO (PCIE5.0 x8)
- 3 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s)
- Supports 1 M.2 (PCIe5.0 x4)
- Up to 13 SATA 6Gb/s
- 2 RJ45 (10GbE) by Intel X710-AT2
- Remote management (IPMI)
Description
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| EPS power connector (8-pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Supported processor sockets | LGA 4677 (Socket E) |
| Motherboard form factor | EEB |
| Performance | |
| Motherboard chipset family | Intel |
| Supported processor sockets | LGA 4677 (Socket E) |
| Motherboard form factor | EEB |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Xeon® |
| Supported processor sockets | LGA 4677 (Socket E) |
| Processor socket | LGA 4677 (Socket E) |
| Memory | |
| Number of memory slots | 16 |
| Supported memory types | DDR5-SDRAM |
| Memory voltage | 1.1 V |
| Supported memory clock speed (max) | 5600 MHz |
| Graphics | |
| On-board graphics card model | Aspeed AST2600 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| IPMI LAN (RJ-45) port | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Features | |
| Motherboard chipset family | Intel |
| Supported processor sockets | LGA 4677 (Socket E) |
| Compatible operating systems | Microsoft® Windows® - Server 2022 (64 bit) Linux - Red Hat Enterprise Linux Server 8.4 ( 64 bit) / 8.5 ( 64 bit) - SUSE Enterprise Linux Server 15 SP3 ( 64 bit) - Ubuntu 21.10 (64 bit) / 22.04.2 ( 64 bit) Hypervisor: - VMWare® ESXi 7.0 U3g / 8.0 |
| Motherboard form factor | EEB |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express OCuLink connectors (NVMe support) | 3 |
| PCI Express x16 (Gen 5.x) slots | 5 |
| PCI Express x8 (Gen 5.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 512 Mbit |
| ACPI version | 4.0 |
| System Management BIOS (SMBIOS) version | 3.4 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width | 307 mm |
| Depth | 337.8 mm |
| Other features | |
| Compatible operating systems | Microsoft® Windows® - Server 2022 (64 bit) Linux - Red Hat Enterprise Linux Server 8.4 ( 64 bit) / 8.5 ( 64 bit) - SUSE Enterprise Linux Server 15 SP3 ( 64 bit) - Ubuntu 21.10 (64 bit) / 22.04.2 ( 64 bit) Hypervisor: - VMWare® ESXi 7.0 U3g / 8.0 |
