Asrock | SKU:
Z690D4ID-2T/G5/X550
Sold out

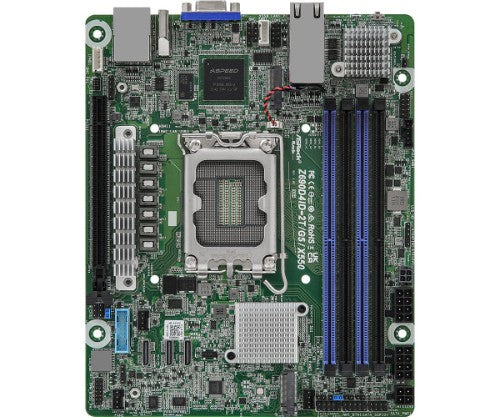

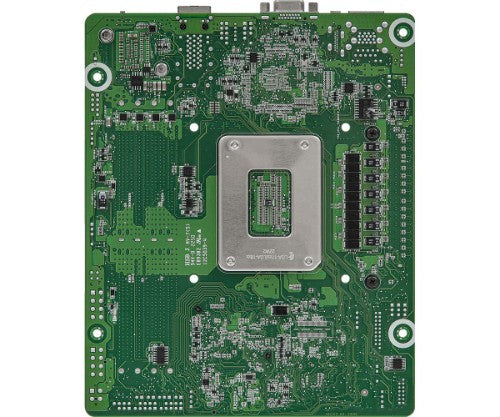

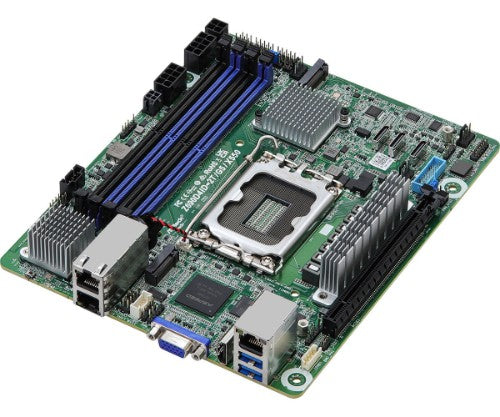

Asrock Z690D4ID-2T/G5/X550 motherboard Intel Z690 LGA 1700 mini ITX
€557.67
Unit price
/
Unavailable
Shipping calculated at checkout.
Asrock Z690D4ID-2T/G5/X550 motherboard Intel Z690 LGA 1700 mini ITX is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Deep mini-ITX, Socket LGA 1700, Intel Z690, 4 DIMM DDR5 288-pin non-ECC UDIMM 1.1V, up to 8 SATA 6Gb/s, RAID 0/1/5/10, 2 x RJ45 (10GbE Intel X550), ASPEED AST2600
Key Features
- Deep mini-ITX (6.7" x 8.2")
- Supports Intel® Core™ 14th Gen, 13th & 12th Gen Intel® Core™, Pentium® and Celeron® series processors
- 4 DIMM slots (2DPC), supports DDR5 non-ECC UDIMM Memory
- 1 PCIe5.0 x16
- 1 OCuLink (PCIe4.0 x4), 1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s), 1 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s)
- Supports 2 M.2 (PCIe4.0 x4)
- 8 SATA 6Gb/s
- 2 RJ45 (10GbE) by Intel X550
- Remote management (IPMI)
Description
Specifications
| Technical details | |
|---|---|
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z690 |
| PC health monitoring | Fan, Temperature, Voltage |
| Parallel processing technology support | Not supported |
| Motherboard form factor | mini ITX |
| Component for | Server |
| Performance | |
| Number of HDDs supported | 8 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10, Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z690 |
| RAID levels | 0, 1, 5, 10 |
| PC health monitoring | Fan, Temperature, Voltage |
| Motherboard form factor | mini ITX |
| Component for | Server |
| Expansion card interfaces | |
| Audio connector | Yes |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory voltage | 1.1 V |
| Supported memory clock speeds | 3600,4000,4400 MHz |
| Maximum internal memory | 192 GB |
| Memory slot pin count | 288 |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 8 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 8 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card model | Aspeed AST2600 |
| Internal I/O | |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Front panel connector | Yes |
| Audio connector | Yes |
| Supported storage drive interfaces | SATA III |
| USB 2.0 connectors | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 3 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DVI-D ports quantity | 0 |
| IPMI LAN (RJ-45) port | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® X550 |
| Ethernet interface type | 10 Gigabit Ethernet |
| Features | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z690 |
| PC health monitoring | Fan, Temperature, Voltage |
| Motherboard form factor | mini ITX |
| Component for | Server |
| Product colour | Green, Grey |
| BIOS | |
| BIOS type | AMI |
| ACPI version | 6.4 |
| System Management BIOS (SMBIOS) version | 3.6 |
| Operational conditions | |
| Storage temperature (T-T) | 10 - 35 °C |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Weight & dimensions | |
| Width | 170 mm |
| Depth | 208 mm |
