ASUS | SKU:
90AR00W2-M000A0

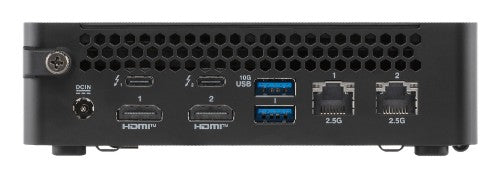

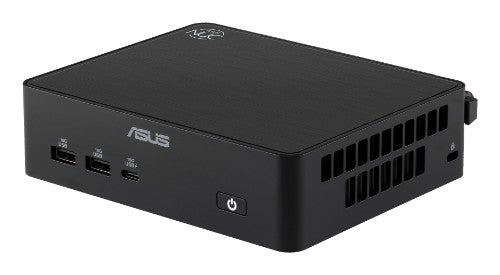

ASUS NUC 16 Pro RNUC16GDKU560000 Black 325
€516.12
Unit price
/
Unavailable
Shipping calculated at checkout.
ASUS NUC 16 Pro RNUC16GDKU560000 Black 325 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Intel Core Ultra 5 325 Processor, 2 x SO-DIMM, DDR5, WLAN, LAN
The ASUS NUC 16 Pro mini PC features up to the latest Intel® Core™ Ultra X9 series 3 processor featuring Intel Arc™, delivering up to 1.5X-faster gen-on-gen 3D graphics performance, and supports up to 96GB of lightning-fast LPDDR5x memory—all while boasting incredible energy efficiency. Built-in firmware TPM 2.0 (fTPM 2.0) handles data security and management, while dual 2.5G LAN and two HDMI® ports ensure convenient connectivity. Its AI-ready performance and robust security make the NUC 16 Pro ideal for businesses.
Key Features
- Powered by up to Intel Core Ultra X9 CPU, Arc B390 GPU, and NPU 5, it enables AI-accelerated hybrid computing, delivering up to 180 TOPS for real-time Edge AI
- Up to 96 GB LPDDR5x 9600 MT/s with 20% faster speed and 50% lower power, plus dual-fan cooling for sustained peak performance
- Wi-Fi 7, Bluetooth 6.0, and dual 2.5G LAN provide low-latency, redundant, and secure connectivity for enterprise and Edge AI
- Built-in firmware TPM 2.0 provides enterprise-grade data protection and compliance, enabling IT professionals to securely manage devices and scale services with ease
- Compact 5×4 chassis with Tool-less 2.0 design supports dual M.2 Gen5/Gen4 SSDs, maximizing airflow, flexibility, and performance
- Rugged modular build with long-life availability and rich I/O, including RS-232 and PCIe x1, for POS, IoT, and industrial deployment
Description
Faster, Smarter, More Secure For the AI-Driven EnterpriseThe ASUS NUC 16 Pro mini PC features up to the latest Intel® Core™ Ultra X9 series 3 processor featuring Intel Arc™, delivering up to 1.5X-faster gen-on-gen 3D graphics performance, and supports up to 96GB of lightning-fast LPDDR5x memory—all while boasting incredible energy efficiency. Built-in firmware TPM 2.0 (fTPM 2.0) handles data security and management, while dual 2.5G LAN and two HDMI® ports ensure convenient connectivity. Its AI-ready performance and robust security make the NUC 16 Pro ideal for businesses.
Specifications
| Processor | |
|---|---|
| Built-in processor | Yes |
| Processor model | 325 |
| Processor boost frequency | 4.5 GHz |
| Processor threads | 8 |
| Processor cores | 8 |
| Processor family | Intel Core Ultra 5 |
| Processor manufacturer | Intel |
| Processor cache | 12 MB |
| Performance cores | 4 |
| Efficient cores | 0 |
| Performance-core Max Turbo Frequency | 4.5 GHz |
| Efficient-core Max Turbo Frequency | 3.5 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.6 GHz |
| Low Power Efficient-cores | 4 |
| Low Power Efficient-core Max Turbo Frequency | 3.4 GHz |
| Low Power Efficient-core Base Frequency | 1600 MHz |
| Processor generation | Intel® Core™ Ultra (Series 3) |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| Maximum internal memory | 128 GB |
| Internal memory installed | No |
| Video | |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Storage | |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| Storage drive interface | PCI Express |
| Number of storage drives supported | 2 |
| Maximum storage capacity | 8 TB |
| SSD form factor | M.2 |
| Storage drives installed | No |
| Graphics | |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® Graphics |
| Performance | |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Audio | |
| Built-in speaker(s) | No |
| Network | |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth version | 6.0 |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| LAN controller | Intel I226-V |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller model | Intel Wi-Fi 7 BE211 |
| Ports & interfaces | |
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 2.1 |
| VGA (D-Sub) ports quantity | 0 |
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Thunderbolt 4 ports quantity | 2 |
| Design | |
| VESA mounting | Yes |
| Product type | Mini PC barebone |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| On/off switch | Yes |
| Cooling type | Active |
| Product colour | Black |
| Processor special features | |
| Low Power Efficient-cores | 4 |
| Low Power Efficient-core Max Turbo Frequency | 3.4 GHz |
| Low Power Efficient-core Base Frequency | 1600 MHz |
| Colour | |
| Product colour | Black |
| Technical details | |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Processor cores | 8 |
| Cooling type | Active |
| Management features | |
| On/off switch | Yes |
| Power | |
| Power supply type | External AC adapter |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 92% |
| Weight & dimensions | |
| Width | 144 mm |
| Depth | 117 mm |
| Height | 42 mm |
| Weight | 910 g |
