ASUS | SKU:
90SB0CS0-M0UAY0
Sold out

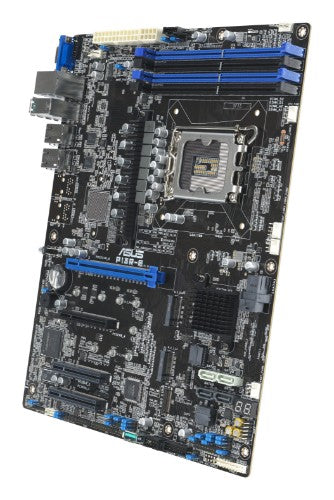

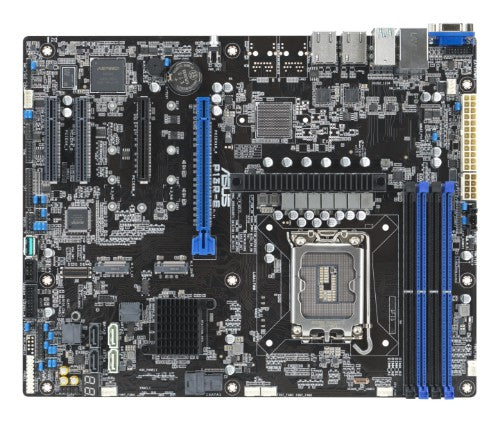

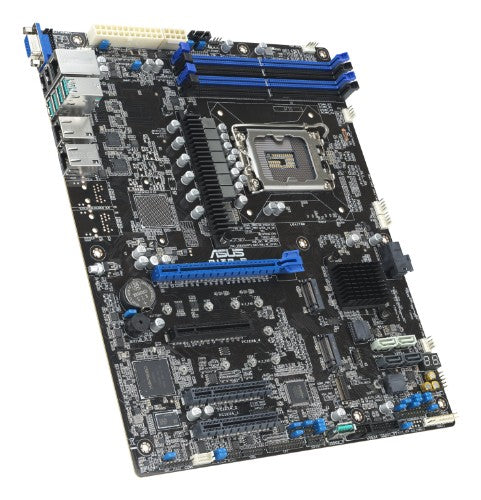

ASUS P13R-E Intel C266 LGA 1700 ATX
€399.10
Unit price
/
Unavailable
Shipping calculated at checkout.
ASUS P13R-E Intel C266 LGA 1700 ATX is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
P13R-E server motherboard socket Intel LGA 1700 (ATX, 4x DDR5 ECC UDIMM, 2x M.2, 2x LAN, 8x SATA, 2x PCIe 5.0, 2x PCIe 4.0, 4x USB 10Gbit/s, 2x USB 2.0)
PCIe 5.0 Ready
Faster storage, graphics and networking capabilities PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth. The ASUS P13R-E supports both PCIe® 4.0 and 5.0 for better LAN scalability and backwards compatibility to satisfy the increasing workloads for modern data center.
Intel Xeon E-2400 processors/Intel Xeon 6300 processors
Designed for small- to medium-sized businesses (SMBs) and cloud-service providers, offering robust and secure solutions. These processors support up to eight cores and 16 threads, with a maximum frequency of 5.6 GHz and a 95 W TDP, ensuring rapid data processing and application responsiveness. They support up to 128 GB of DDR5 4400 MT/s memory (Intel Xeon E-2400) or up to 4800 MT/s memory (Intel Xeon 6300) and PCIe 5.0 interfaces, providing server-grade 24/7 reliability for business-critical services and customer data, and cost-effective performance for entry-level bare-metal cloud services.
Two fast USB 3.2 Gen 2 ports
ASUS P13R-E is equipped with two USB 3.2 Gen 2 ports on its rear I/O panel. These high-speed connections offer rapid data-transfer speeds of up to 10 Gbps, for fast, efficient and reliable file transfers. These sockets are also backward compatible, ensuring seamless connectivity with a wide range of USB devices.
Dual Ethernet bandwidth
With dual onboard LAN powered by an Intel I210-AT2 Ethernet controller, P13R-E server motherboards provide business-grade connectivity and support high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.
Versatile Memory and SSD Integration
The P13R-E boasts eight SATA ports and four DDR5 ECC UDIMM Memory slots, delivering up to 128 Gbps performance and incorporates two M.2 22110 slots for faster OS booting. This integration services as accelerators for virtualized workloads, boosting the server productivity.
Comprehensive IT infrastructure management
P13R-E features an embedded iKVM module and is optionally equipped with ASUS Control Center, offering comprehensive out-of-band and in-band management features tailored for small and mid-size businesses. The embedded ASUS ASMB11-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording and BSOD capture, providing around-the-clock remote monitoring and diagnostics. This functionality remains accessible even if the operating system is down or offline, through a user-friendly web-based graphical interface compatible with all major browsers. ASUS Control Center (ACC) further enhances IT infrastructure management, centralizing and integrating monitoring and control for ASUS commercial products, including servers, workstations, and digital signage. ACC enables remote BIOS updates, mobile device system monitoring, and simplified server management through one-click software updates and dispatching.
Key Features
- Powered by an 8-core Intel Xeon E-2400 series and Intel Xeon 6300 series processor with support for up to 95 watt TDP
- Flexible expandability with eight SATA ports, two PCIe 5.0 slots and two PCIe 4.0 slots
- Dual Intel I210-AT2 gigabit Ethernet ports with teaming support
- Four DDR5 ECC UDIMM slots for up to 128 Gbps and two M.2 22110 slots for faster OS booting
- Onboard ASUS ASMB11-iKVM with ASPEED AST2600 controller for out-of-band management
- ATX motherboard featuring high computing capability -- an ideal platform for SMB general purpose, compute and storage servers
Description
ASUS P13R-E is an Intel® Xeon® E-2400 and Intel® Xeon® 6300 LGA 1700 ATX server motherboard with four DDR5 ECC UDIMM slots, two M.2 slots, dual LAN ports, eight SATA ports, two PCIe® 5.0 slots, two PCIe 4.0 slots, four USB 10Gbps ports, two USB 2.0 ports and an onboard ASUS ASMB11-iKVM management module.PCIe 5.0 Ready
Faster storage, graphics and networking capabilities PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth. The ASUS P13R-E supports both PCIe® 4.0 and 5.0 for better LAN scalability and backwards compatibility to satisfy the increasing workloads for modern data center.
Intel Xeon E-2400 processors/Intel Xeon 6300 processors
Designed for small- to medium-sized businesses (SMBs) and cloud-service providers, offering robust and secure solutions. These processors support up to eight cores and 16 threads, with a maximum frequency of 5.6 GHz and a 95 W TDP, ensuring rapid data processing and application responsiveness. They support up to 128 GB of DDR5 4400 MT/s memory (Intel Xeon E-2400) or up to 4800 MT/s memory (Intel Xeon 6300) and PCIe 5.0 interfaces, providing server-grade 24/7 reliability for business-critical services and customer data, and cost-effective performance for entry-level bare-metal cloud services.
Two fast USB 3.2 Gen 2 ports
ASUS P13R-E is equipped with two USB 3.2 Gen 2 ports on its rear I/O panel. These high-speed connections offer rapid data-transfer speeds of up to 10 Gbps, for fast, efficient and reliable file transfers. These sockets are also backward compatible, ensuring seamless connectivity with a wide range of USB devices.
Dual Ethernet bandwidth
With dual onboard LAN powered by an Intel I210-AT2 Ethernet controller, P13R-E server motherboards provide business-grade connectivity and support high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.
Versatile Memory and SSD Integration
The P13R-E boasts eight SATA ports and four DDR5 ECC UDIMM Memory slots, delivering up to 128 Gbps performance and incorporates two M.2 22110 slots for faster OS booting. This integration services as accelerators for virtualized workloads, boosting the server productivity.
Comprehensive IT infrastructure management
P13R-E features an embedded iKVM module and is optionally equipped with ASUS Control Center, offering comprehensive out-of-band and in-band management features tailored for small and mid-size businesses. The embedded ASUS ASMB11-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording and BSOD capture, providing around-the-clock remote monitoring and diagnostics. This functionality remains accessible even if the operating system is down or offline, through a user-friendly web-based graphical interface compatible with all major browsers. ASUS Control Center (ACC) further enhances IT infrastructure management, centralizing and integrating monitoring and control for ASUS commercial products, including servers, workstations, and digital signage. ACC enables remote BIOS updates, mobile device system monitoring, and simplified server management through one-click software updates and dispatching.
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | PCI Express 4.0, SATA III |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 8 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 6 |
| EPS power connector (8-pin) | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C266 |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | CPU, Fan, Temperature |
| Parallel processing technology support | Not supported |
| Cooling type | Passive |
| Motherboard form factor | ATX |
| Component for | Server |
| Performance | |
| Number of HDDs supported | 8 |
| Supported storage drive types | HDD & SSD |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C266 |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | CPU, Fan, Temperature |
| Cooling type | Passive |
| Motherboard form factor | ATX |
| Component for | Server |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Pentium®, Intel Xeon 6300, Intel Xeon E |
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 3600,4000,4400 MHz |
| Maximum internal memory | 128 GB |
| Supported memory clock speed (max) | 4400 MHz |
| ECC сompatibility | ECC |
| Maximum internal memory per slot | 32 GB |
| Storage controllers | |
| Number of HDDs supported | 8 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | PCI Express 4.0, SATA III |
| Number of storage drives supported | 10 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| DVI-D ports quantity | 0 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Power source type | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C266 |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | CPU, Fan, Temperature |
| Cooling type | Passive |
| Motherboard form factor | ATX |
| Component for | Server |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 2 |
| PCI Express x8 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| Power | |
| Power source type | ATX |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 50 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Packaging data | |
| Package width | 341 mm |
| Package depth | 281 mm |
| Package height | 78 mm |
| Package weight | 1.5 kg |
| Weight & dimensions | |
| Height | 68 mm |
| Package width | 341 mm |
| Package depth | 281 mm |
| Package height | 78 mm |
| Package weight | 1.5 kg |
| Weight | 800 g |
| Width | 305 mm |
| Depth | 244 mm |
| Other features | |
| Height | 68 mm |
| Package width | 341 mm |
| Package depth | 281 mm |
| Package height | 78 mm |
| Package weight | 1.5 kg |
| Weight | 800 g |
