ASUS | SKU:
90MB1C70-M0EAY0
ASUS PRO WS W790-ACE Intel W790 LGA 4677 (Socket E) SSI CEB
€797.91
Unit price
/
Unavailable
Shipping calculated at checkout.
ASUS PRO WS W790-ACE Intel W790 LGA 4677 (Socket E) SSI CEB is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
ASUS PRO WS W790-ACE, Intel, LGA 4677 (Socket E), Intel Xeon W, W-3400, W-2400, DDR5-SDRAM, 2 TB
Description
ASUS PRO WS W790-ACE. Processor manufacturer: Intel, Processor socket: LGA 4677 (Socket E), Compatible processor series: Intel Xeon W. Supported memory types: DDR5-SDRAM, Maximum internal memory: 2 TB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet. Component for: Workstation, Motherboard form factor: SSI CEB, Motherboard chipset family: IntelSpecifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| mSATA ports quantity | 0 |
| TPM connector | Yes |
| Number of SATA connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 5 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel W790 |
| On-board graphics card | No |
| Motherboard form factor | SSI CEB |
| Component for | Workstation |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel W790 |
| RAID levels | 0, 1, 5, 10 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | SSI CEB |
| Component for | Workstation |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Xeon W |
| Intel Xeon series | W-3400, W-2400 |
| Processor socket | LGA 4677 (Socket E) |
| Memory | |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Quad-channel |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz |
| Maximum internal memory | 2 TB |
| ECC сompatibility | ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Graphics | |
| On-board graphics card | No |

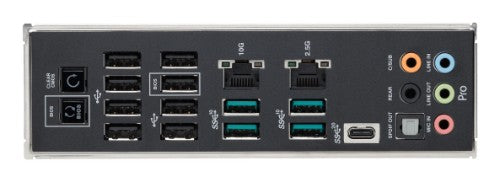

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 8 |
| VGA (D-Sub) ports quantity | 0 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| DVI-D ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel W790 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | SSI CEB |
| Component for | Workstation |
| Audio chip | Realtek S1220A |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 5 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 512 Mbit |
| Clear CMOS button | Yes |
| Packaging data | |
| Package width | 370 mm |
| Package depth | 312 mm |
| Package height | 108 mm |
| Package weight | 3.52 kg |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Weight & dimensions | |
| Height | 50 mm |
| Package width | 370 mm |
| Package depth | 312 mm |
| Package height | 108 mm |
| Package weight | 3.52 kg |
| Weight | 1.81 kg |
| Width | 305 mm |
| Depth | 277 mm |
| Other features | |
| Height | 50 mm |
| Package width | 370 mm |
| Package depth | 312 mm |
| Package height | 108 mm |
| Package weight | 3.52 kg |
| mSATA ports quantity | 0 |
| Weight | 1.81 kg |
| Intel Xeon series | W-3400, W-2400 |
